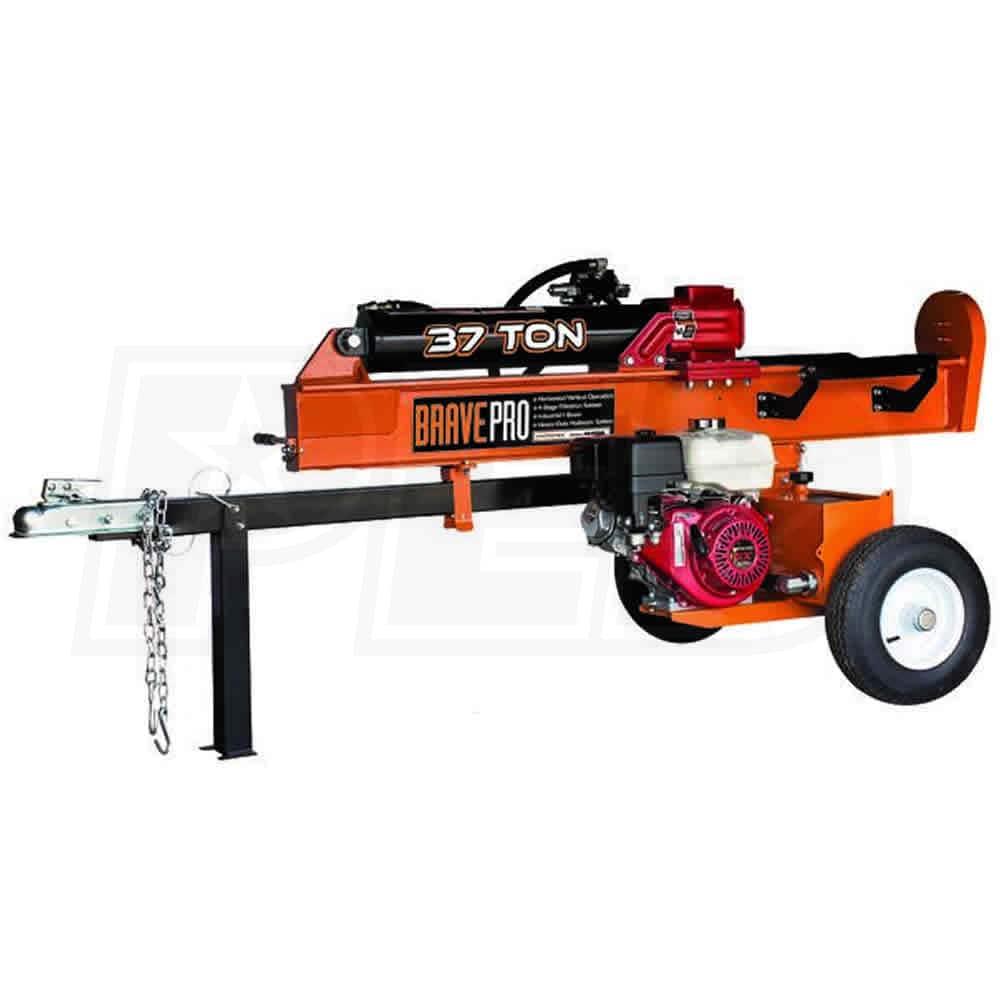

Brave Pro 37-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 270cc Engine

Model:

VH1737GX

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Brave Pro 37-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 270cc Engine
Brave Pro 37-Ton Horizontal / Vertical Gas Log Splitter w/ Honda 270cc Engine
Model: VH1737GX
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Force

37 Tons

Style

Gas

Type

Vertical / Horizontal

Log Length

25 Inches

  • Robust Honda GX270 270cc 4-Cycle Engine
  • Powerful and reliable performance
  • Full, Industrial I-Beam
  • For incredible strength to prevent twisting
  • 4-Stage Hydraulic Filtration System
  • Prevents damage by removing contaminates that damage machine
  • Includes suction strainer, return line filter, breather cap air filter and magnetic drain plug
  • Easily Change From Horizontal To Vertical
  • Convenient lift handle provides added control for easier and safer transitions
  • Two-Stage 16 GPM Pump
  • Industrial cylinder with Halite seals keeps constant and consistent pressure while splitting
  • O-ring fittings on control valve make assembly easier and reduce leaks
  • Nylon hydraulic hose sleeves provides protection
  • Heavy-Duty Log Dislodger
  • Ejects logs that stick to the splitting wedge
  • Protects the control valve and other hydraulic components from damage
  • High Performance Wedge
  • Makes splitting easier and more efficient
  • Tow-Ready
  • Highway-rated tires plus 2" ball hitch and chains
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

VH1737GX
specs product image PID-73228
General Information
Product Category
Log Splitter
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
270 CCs
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
7 Gallons Gallons
Cylinder Diameter
5 Inches
Cylinder Length
24 Inches
Cycle Time
14 Seconds
Tonnage
37 Tons
Overview
Product Category
Log Splitter
Assembly Required
Yes
Weight
550 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
83 Inches
Product Width
41 Inches
Product Height
41 Inches
Power Type
Gas
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
Optional
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Log Cradles
Included
Engine Guard
No
Hitch
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
