Features
Force
25 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
24 Inches
- 169cc Subaru SP170 4-Cycle OHC Engine
- Lightweight and powerful Overhead Camshaft (OHC) design
- High compression ratio (8.5:1) for enhanced fuel efficiency
- Transistorized magneto ignition for a hotter spark - easier starts
- 25-Ton Splitting Force
- Capable of processing logs up to 24" long and 14" in diameter
- Enough power to handle most soft and hardwood types
- Mechanical Pressure Release System
- Patented system improves overall valve performance and safety
- Reduces common issues related to leaking detent valves
- Single-Handed Operation
- Control handle is located for safe one-handed operation
- Auto return sends the wedge to the "home" location after splitting
- D.O.T. Tires
- Road capable 16" tires, safety chains, and 2" coupler included
- Allows you to safely maneuver and tow splitter where you need it
- Compact Design
- Small storage footprint due to the compact size, room for more toys!
- Added maneuverability; fit your splitter into tight areas when needed
- Log Trays Included
- Two large log trays catch split logs protecting the engine and your feet
- Easy assembly; refer to "Manuals" tab above for video instructions
- 2-Year Warranty Including Hydraulics
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
WD25T-SU
Engine
Engine Brand
Subaru
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
169 CCs
Fuel Tank Size
0.95 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Idle Control
Yes
Low Oil Shutdown
No
Consumer Engine Warranty
3 Years
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
No
Hydraulic Reservoir Size
3.5 Gallons
Max Pump PSI
3750 PSI
Cylinder Diameter
4 Inches
Cylinder Length
27.75 Inches
Cycle Time
14 Seconds
Tonnage
25 Tons
Dual Action
No
Overview
Assembly Required
Yes
Weight
474 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
86 Inches
Product Width
36 Inches
Product Height
36.5 Inches
Power Type
Gas
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
24 Inches
Max Log Diameter
14 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
45 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Rear Tire Size
16 Inch
Tire Type
Pneumatic Wheels
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(4)
Boss Industrial WD25T-SU Reviews & Ratings
How-To Articles
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

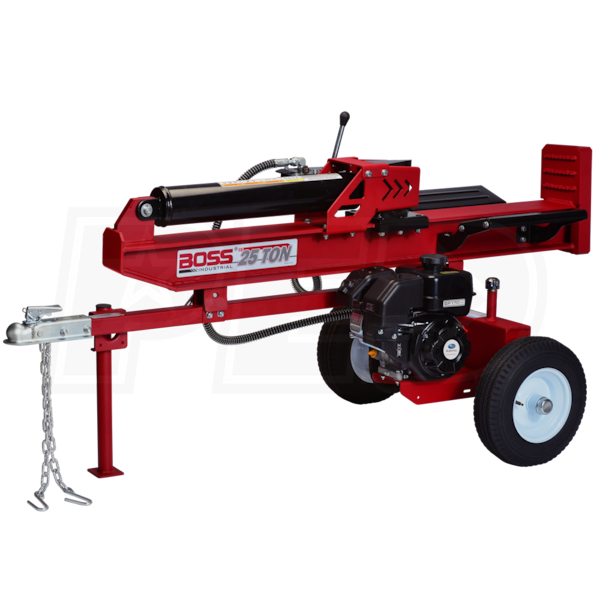

Boss Industrial 25-Ton Subaru Horizontal/Vertical Gas Log Splitter
