Features
Force
5 Tons
Style
Electric
Type
Horizontal
Log Length
20.5 Inches
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 5 Ton Splitting Force - Perfect For Home Or Cabin
- Strong 6-inch steel wedge
- Split logs up to 20-inches in length; up to 10-inches in diameter
- Durable 1.8 HP Electric Motor
- Easy push button electronic start
- Split in a garage or shed - use it year round
- Needs a 12 amp circuit; uses a regular 3 prong household outlet
- Superior Hydraulics
- Built using superior materials and a stronger structure
- 2,700 psi hydraulic pressure
- Automatic Ram Return
- Goes back to starting position once lever is released
- Makes jobs easier for one person
- Easy To Operate
- Conveniently located handle for one-handed operation
- Light Weight & Portable
- Fully assembled - no assembly required
- Easy to move from place to place
- Durable high density rubber wheels
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
EC5T20
General Information
Product Category
Log Splitter
Engine
HP
1.8 HP
Motor
Motor Voltage
120-Volts
Power Cord Length
5.25 Feet
Watts
1300 Watts
Amps
12 Amps
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
0.75 Gallons
Max Pump PSI
2000 PSI
Cylinder Diameter
2.2 Inches
Cylinder Length
29.25 Inches
Cycle Time
14 Seconds
Tonnage
5 Tons
Overview
Product Category
Log Splitter
Weight
110 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
39.5 Inches
Product Width
13.5 Inches
Product Height
20 Inches
Power Type
Electric
UPC
853676004083
Wedge
Wedge Material
Steel
Wedge Size
6 Inches
Wedge Style
2-way
Replaceable Wedge
No
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
20.5 Inches
Max Log Diameter
10 Inches
Towing
Towable
No
D.O.T. Lights
No
Fenders
No
Accessories
Jack Stands
No
Log Cradles
Included
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(92)
Boss Industrial EC5T20 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Dale, the Log Splitter Expert
How-To Articles
How to Safely Use a Log Splitter
Whether you're new to using log splitters or can split behind your back while b...
How to Pick the Perfect Log Splitter Style
Firewood heats you twice: once when you cut it and again when you burn it. But ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

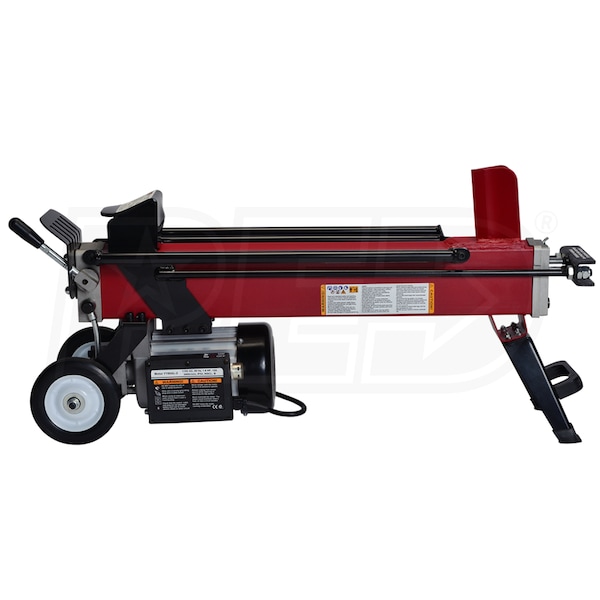

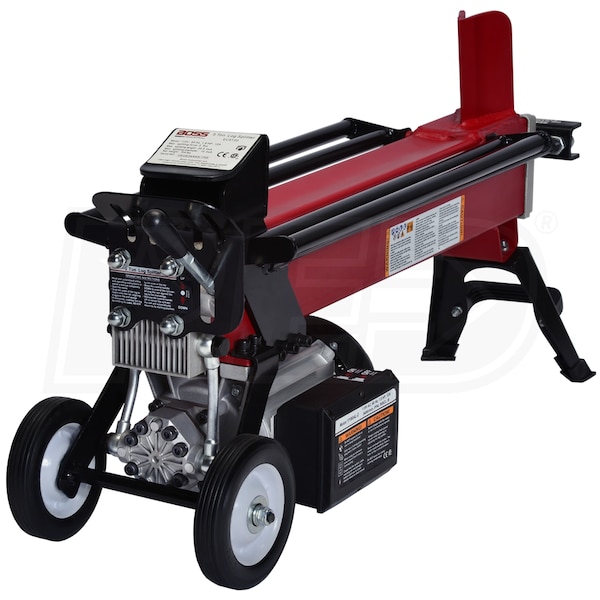

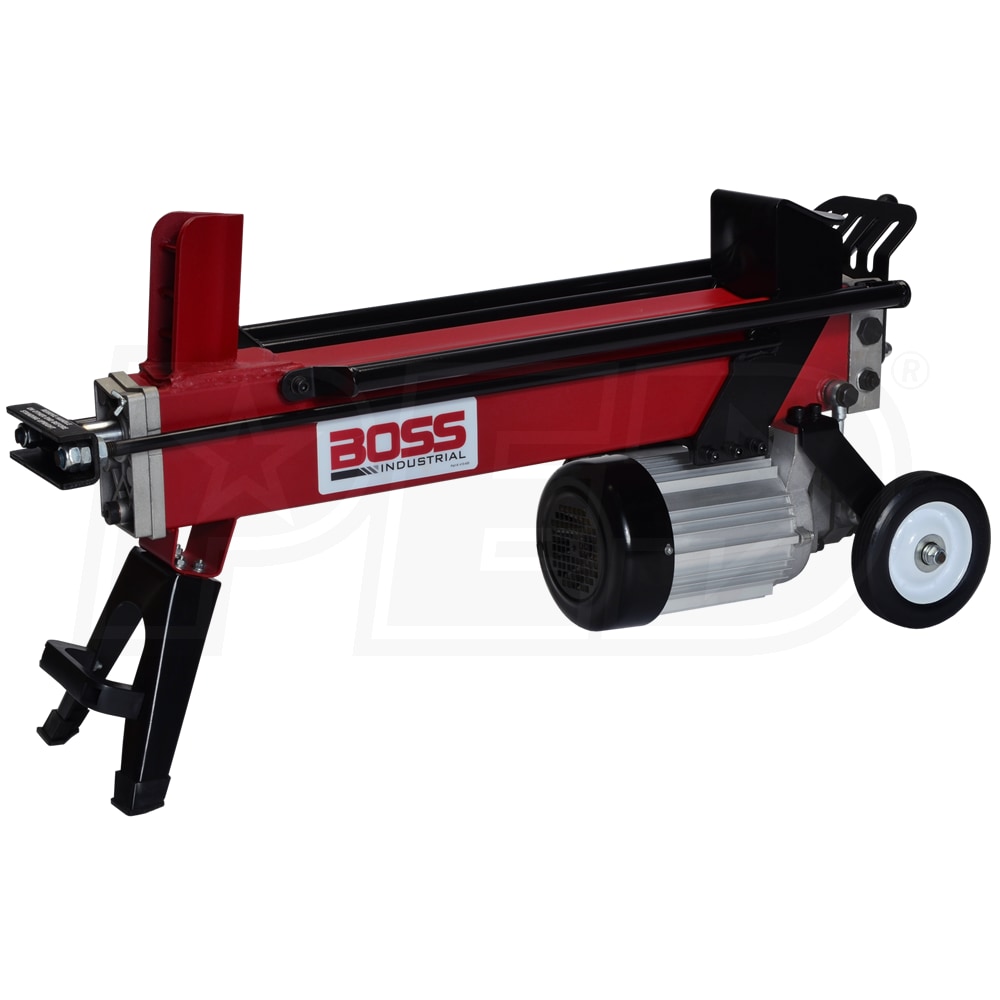

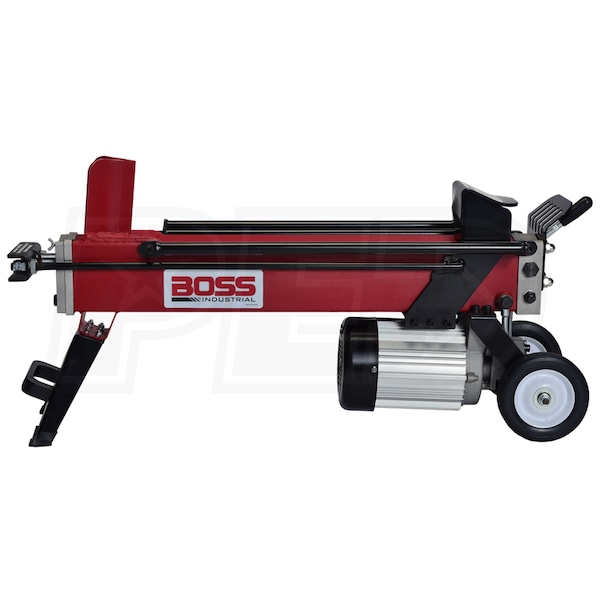

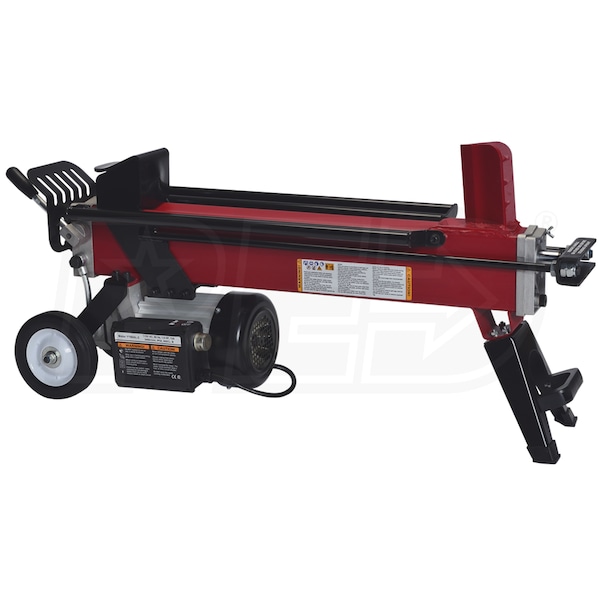

Boss Industrial 5-Ton Electric Log Splitter
