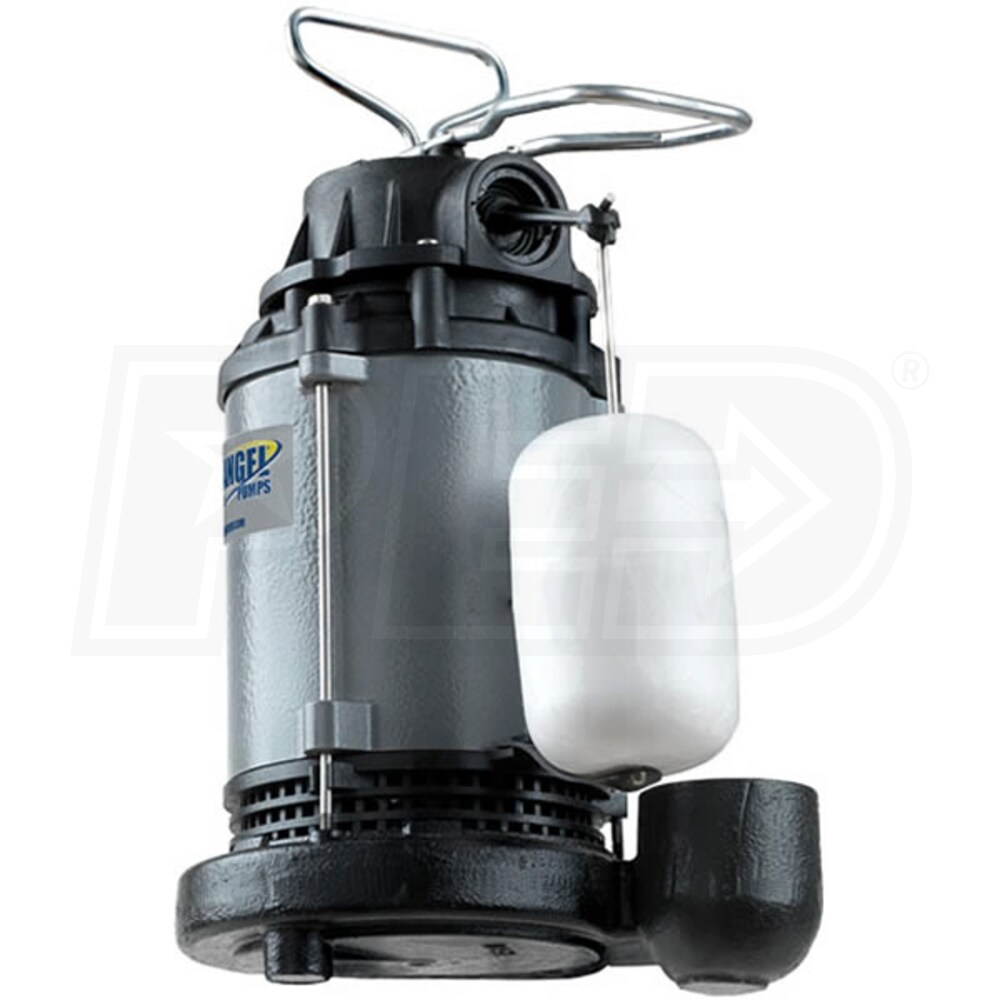

Blue Angel Pumps - 1/2 HP All Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model:
F50CIS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3900 Gallons
Switch Type
Vertical
- F50CIS - Blue Angel Heavy Duty Series 1/2 HP Automatic Submersible Sump Pump
- Assembled in the USA, with foreign and domestic parts
- Epoxy-Coated Cast Iron Motor Housing & Volute/Base
- Corrosion-resistant construction maximizes pump life
- 1/2 HP Permanent Split Capacitor (PSC) Motor 120V
- Oil-Filled, thermally protected to prevent overheating and burnout
- Energy-efficient, low amp draw helps extend switch life
- Top Suction Design
- Won't clog from debris at bottom of sump pit
- Prevents air-lock for more reliable operation
- Integrated Vertical Float Switch
- For use in 11" Diam. or larger sump basins
- Tested to 1 million cycles* for reliable automatic operation
- Thermoplastic Impeller
- Allows for up to 70 GPM maximum output
- 1-1/2-Inch NPT Discharge
- Simplifies installation and complies with building codes
- 8-Foot SJTW Power Cord
- Plugs into standard 3-prong outlets
- 3-Year Limited Warranty
- *WAYNE Water Systems™Â Exceed an Average 1 Million Test Cycles
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
F50CIS
Base
Base Material
Cast Iron
Min Sump Basin Size
11 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
Yes
Pump
Housing Material
Stainless Steel
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
3900
GPH @ 5 feet
3900
GPH @ 10 feet
3120
GPH @ 15 feet
2100
GPH @ 20 feet
600
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9
Float Off
4
Manual Override
No
Max Head
20 Feet
Engine
Oil-Cooled
Yes
Horsepower
.5 hp
Overview
Weight
23 Pounds
Consumer Warranty
3 Years
Product Length
10 Inches
Product Width
10 Inches
Product Height
14 Inches
UPC
040066217905
