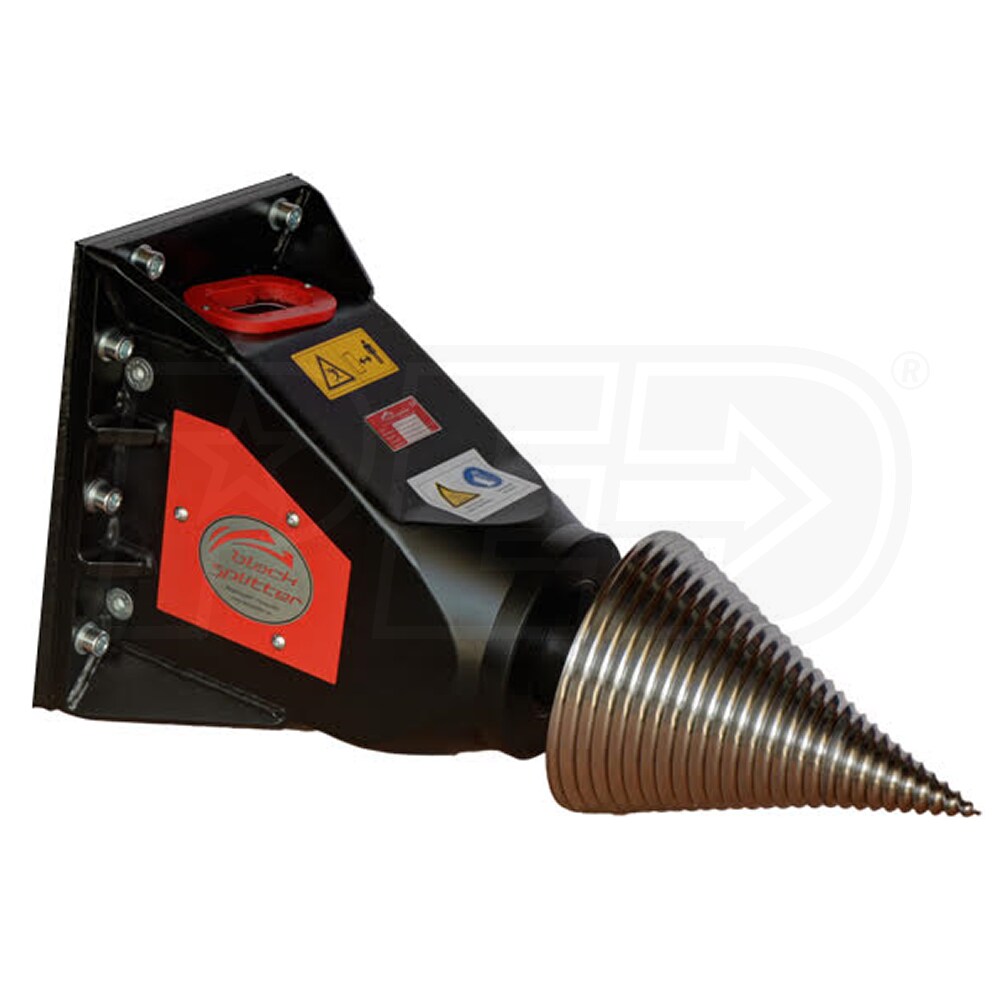

Black Splitter S2X - 800cc Skid Steer Cone Log Splitter
Model: S2X800
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Force
12
Tons
Style

Type
Log Length
Inches
Force
12 Tons
Style
Skid Steer
Log Length
Inches
Features
Features
- Hydraulic Requirements: 2,610-3,335 PSI and 13.2-52.8 GPM
- Black Splitter Hydaulic Skid Steer Wood Splitter
- Also designed to fit all models of excavators up to 26,000 lbs. or 12-tons
- Robust & Compact Reversible 800cc Orbital Motor
- 1825 ft. lbs. of torque
- Designed to withstand high axial and radial loads
- Bearing-mounted and sealed
- Exceptional German Engineering & Robust Construction
- 90 to 100 mm diameter
- Utilized In Numerous Industries
- Extremely high durability and reliability
- Log splitting, firewood & wood fuel production, biomass harvesting,
- Forestry, land clearing and landscaping
- Unique Rotating Threaded Cone
- Provides extremely efficient log splitting power, especially firewood processing
- Made For Various Timber Types
- Hard, soft, straight, twisted, stumps and roots
- Two-Piece 245mm Chromium-Steel Cone
- Replaceable tip when original becomes worn
- Double Helical Thread Design
- 24mm thread pitch for rapid penetration into the hardest of logs and timber
Specifications
Hydraulics
Max Pump PSI
3,335 PSI
Tonnage
12 Tons
Overview
Weight
355 Pounds
Certification
CE
Consumer Warranty
1 Year
Product Length
32 Inches
Product Width
12.25 Inches
Product Height
18.5 Inches
Power Type
Skid Steer
Force
12
Tons
Style

Type
Log Length
Inches
Force
12 Tons
Style
Skid Steer
Log Length
Inches
Features
Features
- Hydraulic Requirements: 2,610-3,335 PSI and 13.2-52.8 GPM
- Black Splitter Hydaulic Skid Steer Wood Splitter
- Also designed to fit all models of excavators up to 26,000 lbs. or 12-tons
- Robust & Compact Reversible 800cc Orbital Motor
- 1825 ft. lbs. of torque
- Designed to withstand high axial and radial loads
- Bearing-mounted and sealed
- Exceptional German Engineering & Robust Construction
- 90 to 100 mm diameter
- Utilized In Numerous Industries
- Extremely high durability and reliability
- Log splitting, firewood & wood fuel production, biomass harvesting,
- Forestry, land clearing and landscaping
- Unique Rotating Threaded Cone
- Provides extremely efficient log splitting power, especially firewood processing
- Made For Various Timber Types
- Hard, soft, straight, twisted, stumps and roots
- Two-Piece 245mm Chromium-Steel Cone
- Replaceable tip when original becomes worn
- Double Helical Thread Design
- 24mm thread pitch for rapid penetration into the hardest of logs and timber
Specifications
Hydraulics
Max Pump PSI
3,335 PSI
Tonnage
12 Tons
Overview
Weight
355 Pounds
Certification
CE
Consumer Warranty
1 Year
Product Length
32 Inches
Product Width
12.25 Inches
Product Height
18.5 Inches
Power Type
Skid Steer
Product Specs
+−
Specifications
Hydraulics
Max Pump PSI
3,335 PSI
Tonnage
12 Tons
Overview
Weight
355 Pounds
Certification
CE
Consumer Warranty
1 Year
Product Length
32 Inches
Product Width
12.25 Inches
Product Height
18.5 Inches
Power Type
Skid Steer
