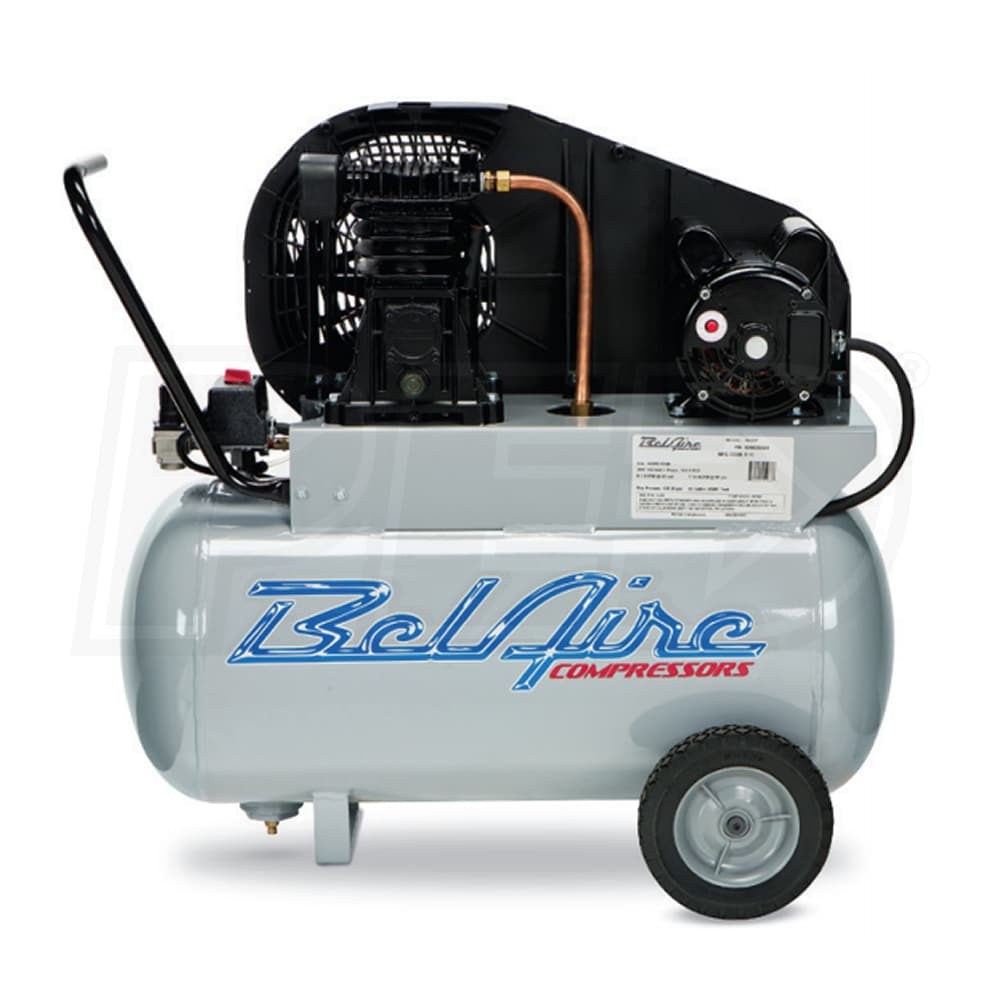

BelAire 2-HP 20-Gallon (Belt Drive) Single-Stage Air Compressor

Model:

5020P

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
BelAire 2-HP 20-Gallon (Belt Drive) Single-Stage Air Compressor
BelAire 2-HP 20-Gallon (Belt Drive) Single-Stage Air Compressor
Model: 5020P
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

7.1

Tank Size

20

  • Cast Iron Cylinder Pump
  • More durable and longer life than aluminum pumps
  • 2-HP Motor
  • Long lasting for maximum performance and reliability
  • 20-Gallon Horizontal Tank
  • Rugged receiver tank to improve consistency of air flow
  • Designed For Portability
  • Wheels and handle make this air compressor easy to move around
  • Added Features
  • Start/Stop pressure switch control
  • ASME safety valves & fully-enclosed belt guard
  • Tank drain and discharge valve
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

5020P
specs product image PID-4472
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
No
Recommended Breaker
40 Amp Breaker
Engine
HP
2
Pump
CFM
7.1
CFM Rated @
100 PSI
CFM @ 40 PSI
8.3
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
155 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
20 Inches
Product Height
32 Inches
Power Type
Electric
