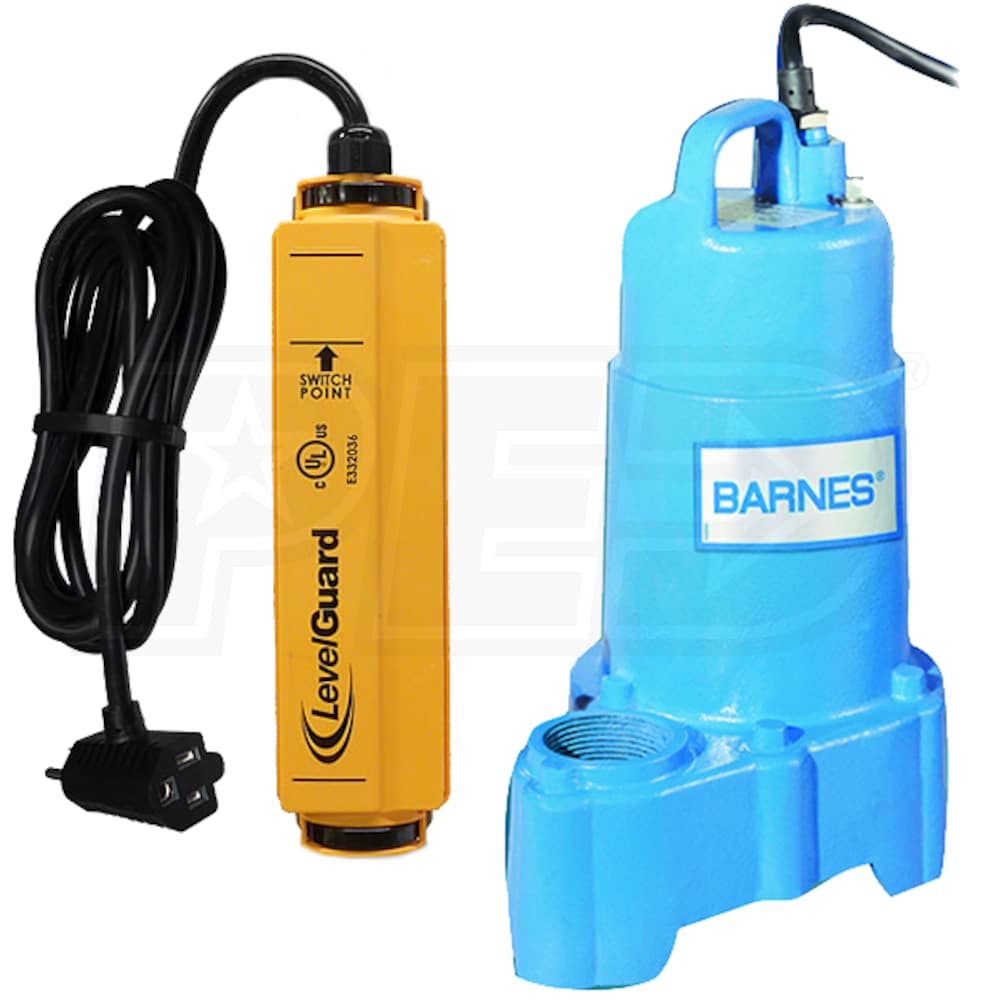

Barnes SP33 - 1/3 HP Cast Iron Sump Pump w/ LevelGuard® Switch

Barnes SP33 - 1/3 HP Cast Iron Sump Pump w/ LevelGuard® Switch
Our Price
Compare Prices
Shipping Info
Model: SPD-SP33KIT
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
$240.00
Ships in 2-5 Business Days
Shipping Crate Icon
Free Shipping
Free Shipping$240.00Buy Now
Free Shipping$240.00Visit Site
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Electronic
Style
Primary
GPH
3000 Gallons
Switch Type
Electronic


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Includes LevelGuard® Electronic Sump Pump Control
  • The most dependable electronic switch on the market today
  • “Field-Effect” Sensing Technology - NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sump pump systems
  • Barnes SP33 - 1/3 HP Cast Iron & Thermoplastic Sump Pump (Non-Automatic)
  • Requires float switch or controller for automatic operation
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • Thermoplastic Pump Body & Strainer
  • Corrosion-resistant design provides long life in sump applications
  • 1/3 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 5.8 FLA
  • 10-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 1/2"
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • 10-Foot Power Cord w/ Plug & Pressure Grommet
  • GFCI compatible design with sealing and strain relief
  • 2-Year Limited Warranty
    • Product Includes
    • (1) Barnes SP33 - 1/3 HP Cast Iron Sump Pump (Non-Automatic) (112547)
    • (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
Electronic
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
112547 Specifications+
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Z24800A1Z Specifications+
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Style
Primary Sumps Pumps
GPH
3000
Gallons
Switch Type
Electronic
Style
Primary
GPH
3000 Gallons
Switch Type
Electronic


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Includes LevelGuard® Electronic Sump Pump Control
  • The most dependable electronic switch on the market today
  • “Field-Effect” Sensing Technology - NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sump pump systems
  • Barnes SP33 - 1/3 HP Cast Iron & Thermoplastic Sump Pump (Non-Automatic)
  • Requires float switch or controller for automatic operation
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • Thermoplastic Pump Body & Strainer
  • Corrosion-resistant design provides long life in sump applications
  • 1/3 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 5.8 FLA
  • 10-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 1/2"
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • 10-Foot Power Cord w/ Plug & Pressure Grommet
  • GFCI compatible design with sealing and strain relief
  • 2-Year Limited Warranty
    • Product Includes
    • (1) Barnes SP33 - 1/3 HP Cast Iron Sump Pump (Non-Automatic) (112547)
    • (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
Electronic
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
112547 Specifications+
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Z24800A1Z Specifications+
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
Electronic
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
112547 Specifications+
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
30 Feet
Float Type
No Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
30 Pounds
Consumer Warranty
2 Years
Z24800A1Z Specifications+
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
