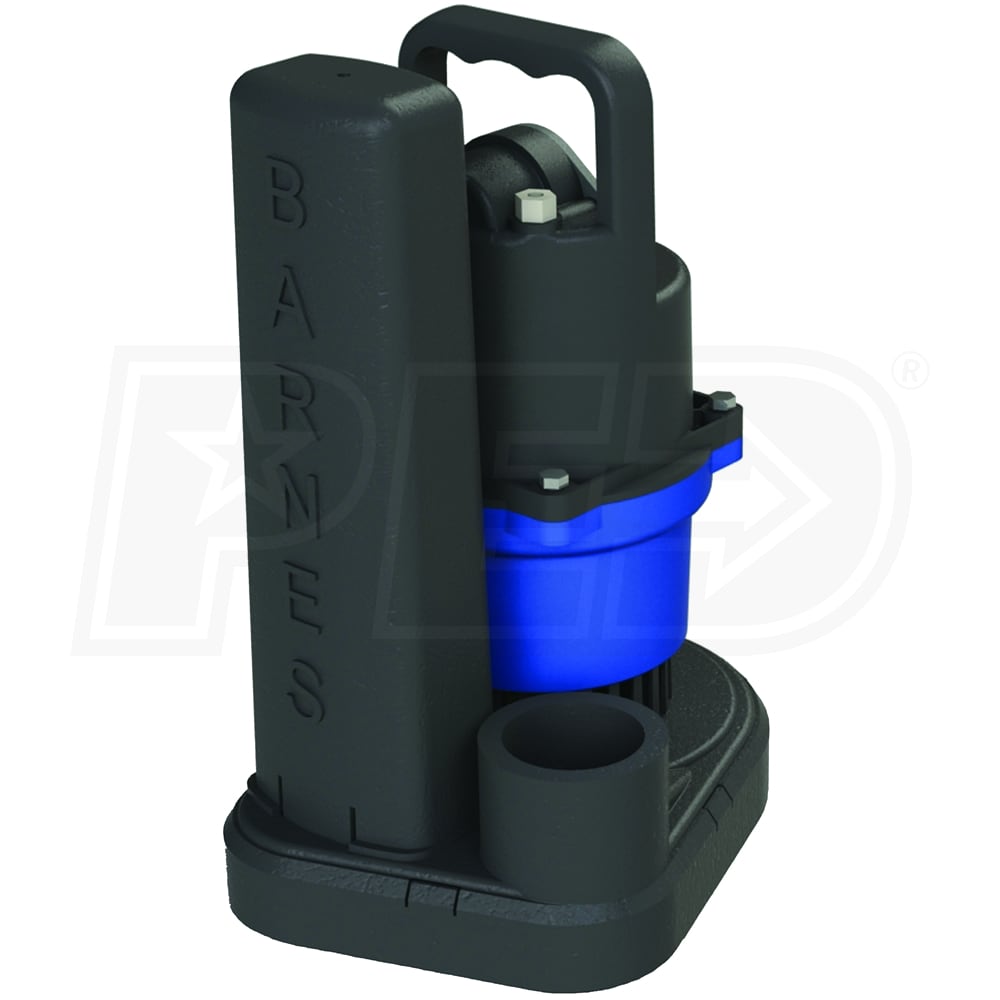

Barnes SU33 - 1/3 HP Thermoplastic Sump Pump w/ SHUR-Switch™
Model: 130234
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
Ask a Question
$124.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability November 04, 2020
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping$124.00Buy Now
Free Shipping$124.00Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Style
Primary Sumps Pumps
GPH
2700
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
  • Barnes SU-Series Thermoplastic Sump Pump w/ SHUR-Switch™
  • Ideal for a wide variety of sump and dewatering applications
  • Thermoplastic Pump Body, Strainer & Impeller
  • Corrosion-resistant design provides long life in sump applications
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • 1/3 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 3.4 FLA
  • SHUR-Switch™, Patented Magnetic Vertical Float Switch
  • Totally-enclosed design for maximum activation capability
  • Oil-Lubricated, Single Row Ball Bearings
  • Provides increased life-span and quieter operation
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Top-Suction Design w/ Built-In Strainer
  • Helps prevent clogging and minimizes air lock
  • 9-Foot, GFCI Compatible Power Cord
  • For easier access to power outlets
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.3
Float Off
3.0
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
2 Years
Style
Primary Sumps Pumps
GPH
2700
Gallons
Switch Type
Vertical Float Switch
Style
Primary
GPH
2700 Gallons
Switch Type
Vertical
Features
Features
  • Barnes SU-Series Thermoplastic Sump Pump w/ SHUR-Switch™
  • Ideal for a wide variety of sump and dewatering applications
  • Thermoplastic Pump Body, Strainer & Impeller
  • Corrosion-resistant design provides long life in sump applications
  • Cast Iron Motor Housing
  • Allows for maximum heat dissipation for increased motor life
  • 1/3 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 3.4 FLA
  • SHUR-Switch™, Patented Magnetic Vertical Float Switch
  • Totally-enclosed design for maximum activation capability
  • Oil-Lubricated, Single Row Ball Bearings
  • Provides increased life-span and quieter operation
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Top-Suction Design w/ Built-In Strainer
  • Helps prevent clogging and minimizes air lock
  • 9-Foot, GFCI Compatible Power Cord
  • For easier access to power outlets
  • 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.3
Float Off
3.0
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
2 Years
Product Specs
+−
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.4
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
20 Feet
Float Type
Vertical Float
GPH @ 0 feet
2700
GPH @ 5 feet
2520
GPH @ 10 feet
2040
GPH @ 15 feet
1380
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.3
Float Off
3.0
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
2 Years
