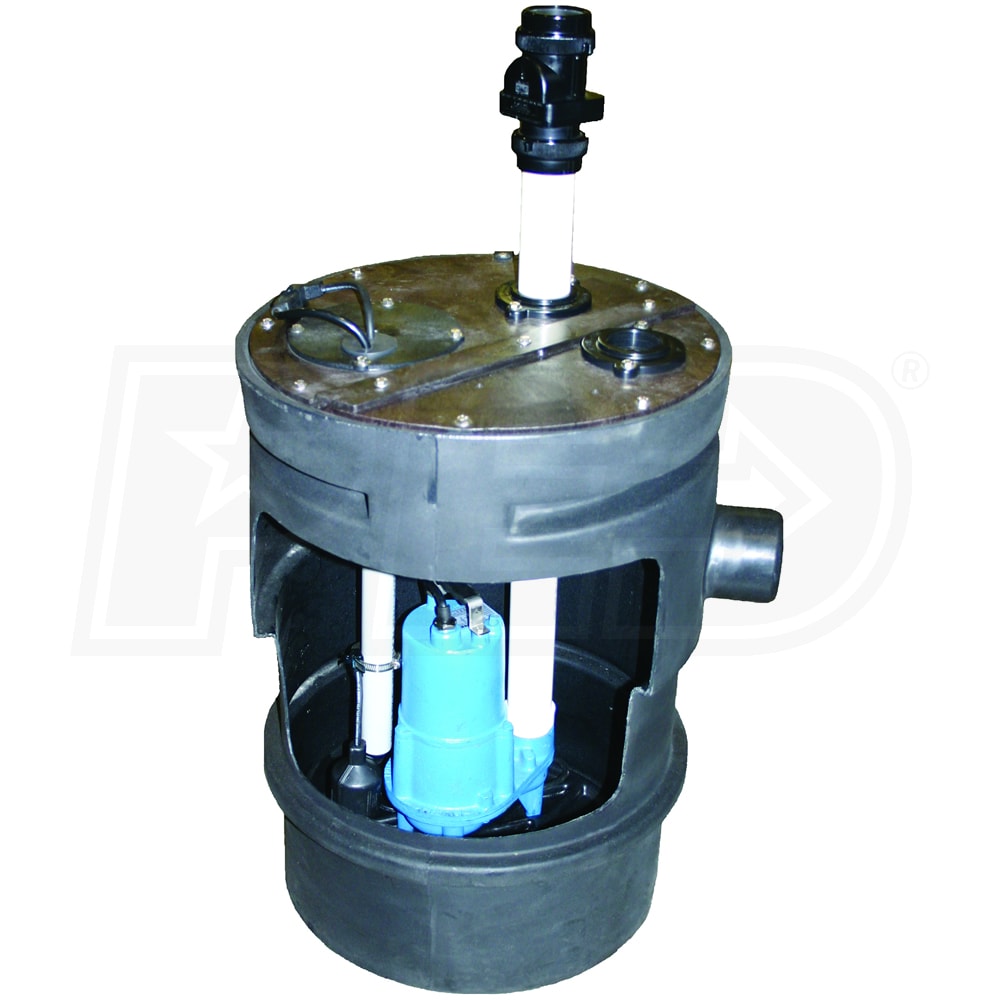

Barnes PITPRO20X30 SE421 - 4/10 HP Sewage Pump System (20" x 30") (230V)
Model: 126916
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
7200
Gallons
Switch Type
Style
Sewage Pump
GPH
7200 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Barnes PITPRO20X30 SE421 - PITPRO™ 4/10 HP Sewage Pump System (230V)
- Pre-Assembled design, reduces labor cost & installation time
- SE421 - 4/10 HP Cast Iron Sewage Pump (230V)
- For sewage removal in residential and light commercial applications
- Piggyback Tether Float Switch
- Floatree design for easy float maintenance
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 4/10 HP, Thermally Protected, Permanent Split-Capacitor (PSC) Motor (230V)
- Oil-filled, energy-efficient design, only draws 6.2 FLA
- 2-Vane, Cast Iron Vortex Impeller
- Dynamically balanced design, can pass spherical solids up to 2"
- Carbon/Ceramic/Buna-N Mechanical Seal
- Assures maximum protection against pump failure
- 416 Stainless Steel Shaft
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Helps reduce vibration and provides quieter operation
- 20" x 30" Polyethylene Basin w/ Split Cover, Floatree & 2" Check Valve
- 4" Inlet for easy connection to plumbing system
- Split cover and floatree allows for easier servicing
- Also Includes:
- Sch. 40 discharge pipe, cover gasget / hardware, cord/dischage/vent grommets
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.4 hp
Accessories
Float Switch
Yes
Overview
Weight
80 Pounds
Consumer Warranty
2 Years
Product Length
20 Inches
Product Height
30 Inches
Style
GPH
7200
Gallons
Switch Type
Style
Sewage Pump
GPH
7200 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Barnes PITPRO20X30 SE421 - PITPRO™ 4/10 HP Sewage Pump System (230V)
- Pre-Assembled design, reduces labor cost & installation time
- SE421 - 4/10 HP Cast Iron Sewage Pump (230V)
- For sewage removal in residential and light commercial applications
- Piggyback Tether Float Switch
- Floatree design for easy float maintenance
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 4/10 HP, Thermally Protected, Permanent Split-Capacitor (PSC) Motor (230V)
- Oil-filled, energy-efficient design, only draws 6.2 FLA
- 2-Vane, Cast Iron Vortex Impeller
- Dynamically balanced design, can pass spherical solids up to 2"
- Carbon/Ceramic/Buna-N Mechanical Seal
- Assures maximum protection against pump failure
- 416 Stainless Steel Shaft
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Helps reduce vibration and provides quieter operation
- 20" x 30" Polyethylene Basin w/ Split Cover, Floatree & 2" Check Valve
- 4" Inlet for easy connection to plumbing system
- Split cover and floatree allows for easier servicing
- Also Includes:
- Sch. 40 discharge pipe, cover gasget / hardware, cord/dischage/vent grommets
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
19
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
Yes
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.4 hp
Accessories
Float Switch
Yes
Overview
Weight
80 Pounds
Consumer Warranty
2 Years
Product Length
20 Inches
Product Height
30 Inches
