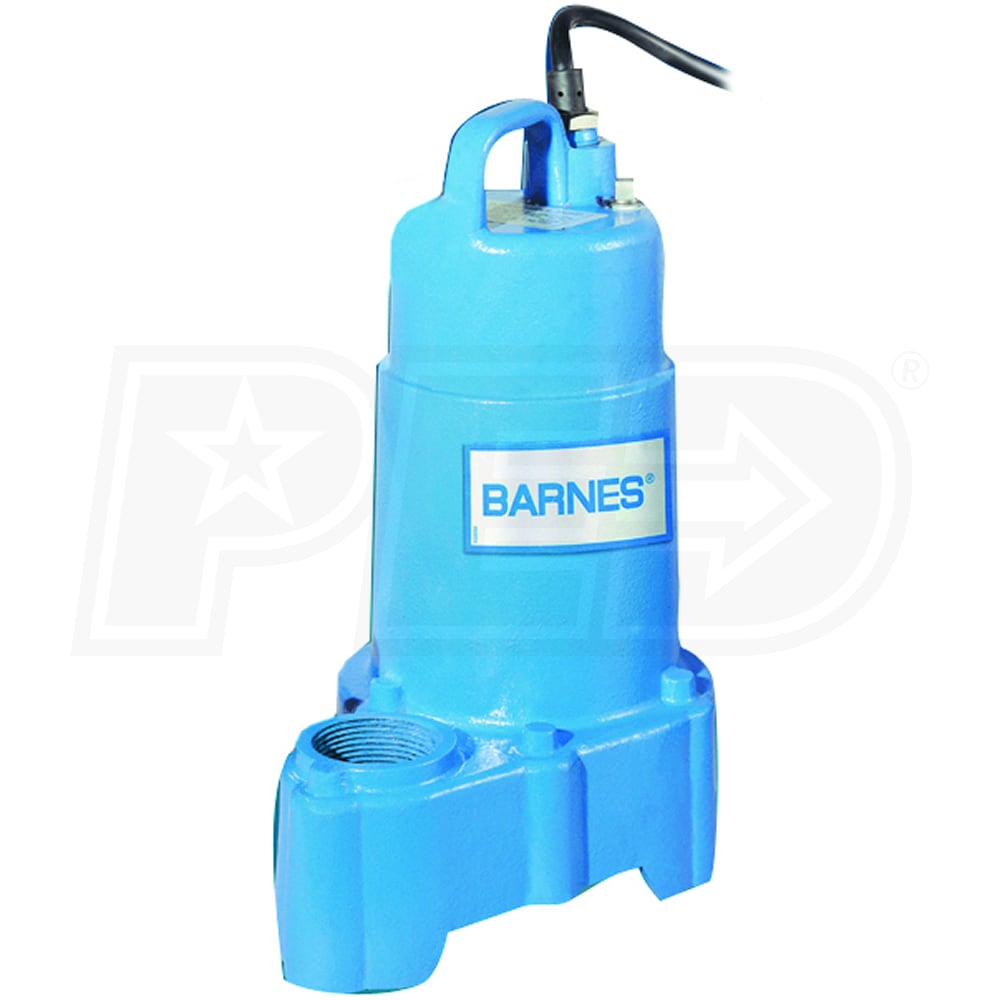

Barnes SP75AX - 3/4 HP Cast Iron Sump Pump w/ Piggyback Tether Float (20' Cord)
Model: 115369
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4800
Gallons
Switch Type
Style
Primary
GPH
4800 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Barnes SP75AX - 3/4 HP Cast Iron & Thermoplastic Automatic Sump Pump
- Rugged, heavy-duty designed for residential and light commercial applications
- Cast Iron Motor Housing
- Allows for maximum heat dissipation for increased motor life
- Thermoplastic Pump Body & Strainer
- Corrosion-resistant design provides long life in sump applications
- 3/4 HP Permanent Split-Capacitor (PSC) Motor
- Thermally protected, energy-efficient design, only draws 9.8 FLA
- Piggyback Tether Float Switch (Not Shown)
- Allows for easy-servicing while providing automatic-operation in sump pits 18"+
- 10-Vane, Cast Iron Vortex Impeller
- Allows for easy-passage of spherical solids up to 1/2"
- Carbon/Ceramic/Buna-N Seal
- Assures maximum protection against pump failure
- Stainless Steel Shaft & Hardware
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Provides increased life-span and quieter operation
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- 20-Foot Power Cord w/ Plug & Pressure Grommet
- GFCI compatible design with sealing and strain relief
- 2-Year Limited Warranty
Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
33 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4800
GPH @ 5 feet
4800
GPH @ 10 feet
4260
GPH @ 15 feet
3780
GPH @ 20 feet
3120
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.75 hp
Overview
Weight
34 Pounds
Consumer Warranty
2 Years
