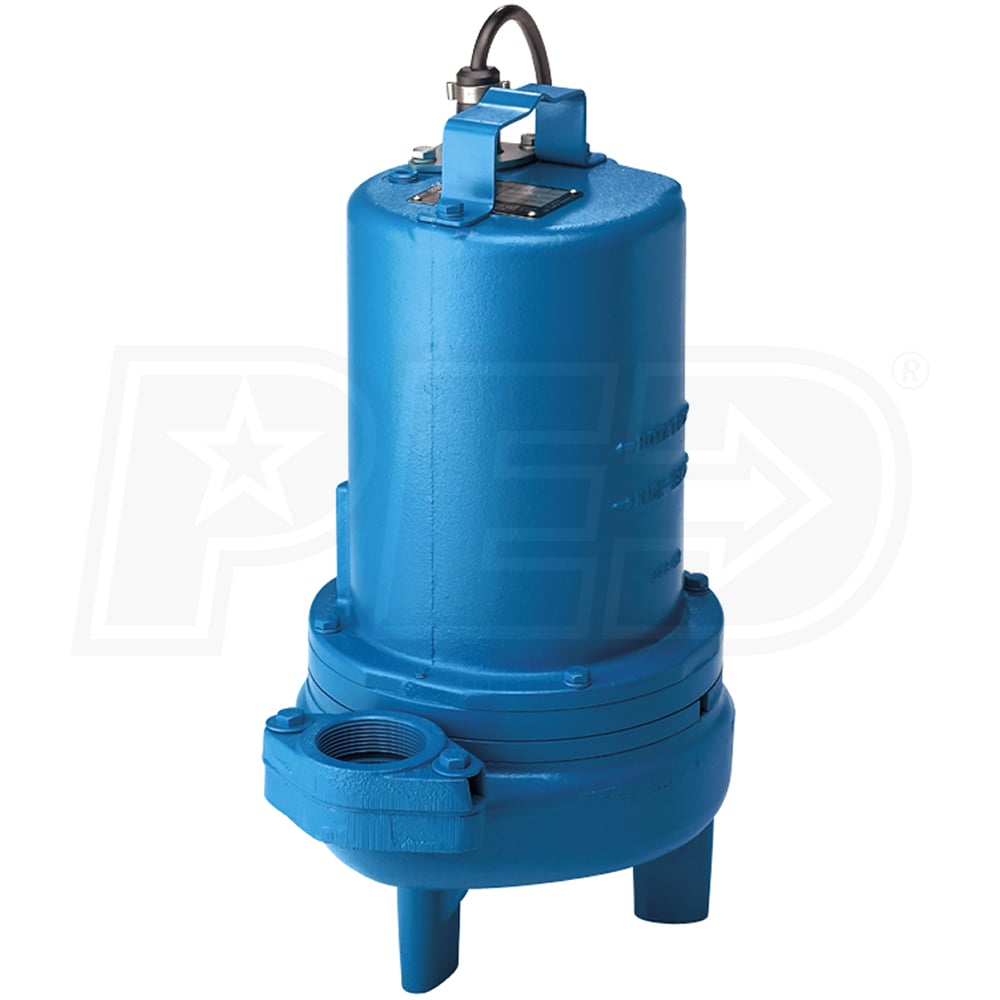

Barnes 2SEV522L - 1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)

Model:

104971

Write a Review
$1,101.00
Free Shipping
  Learn More About Free Freight
Only 1 In-Stock
Ships Tuesday, Jun 15th
Shipping to60601

In-Stock Free Shipping$1,101.00Buy Now
In-Stock Free Shipping$1,101.00Visit Site
Barnes 2SEV522L - 1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)
Barnes 2SEV522L - 1/2 HP Cast Iron High-Volume Sewage Pump (Non-Automatic) (230V)
Model: 104971
$1,101.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Style

Sewage Pump

GPH

6600 Gallons

Switch Type

None

  • Barnes 2SEV522L - 1/2 HP High-Volume Cast Iron Sewage Pump (Non-Automatic) (230V)
  • Designed for sewage removal in residential and light commercial applications
  • Requires float switch or controller for automatic operation
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor (230V)
  • Oil-filled, thermally protected, energy-efficient design, only draws 6 FLA
  • Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot, Quick-Disconnect Power Cord - Bare Lead
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

104971
specs product image PID-80806
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
10.2
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
39 Feet
Float Type
No Switch
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
6000
GPH @ 15 feet
4950
GPH @ 20 feet
3900
Discharge Port Size
2 Inch
Built-in check Valve
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
80 Pounds
Consumer Warranty
2 Years
Product Length
12.63 Inches
Product Width
9.75 Inches
Product Height
19.41 Inches
