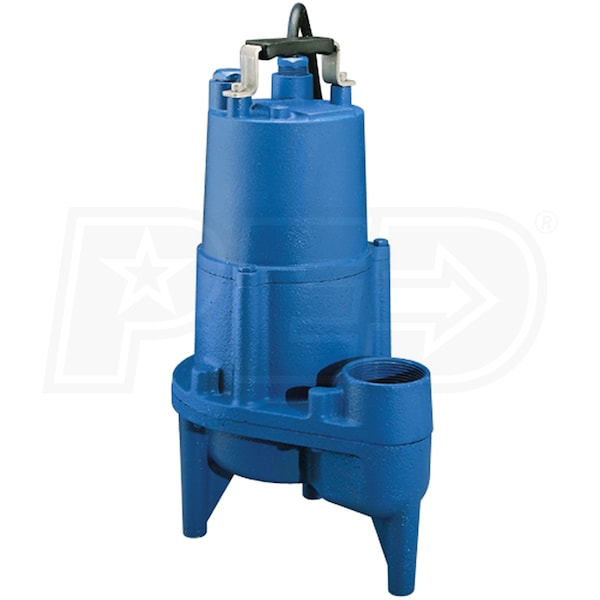

Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Pipe-Mount Tether Float
Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Pipe-Mount Tether Float
+
Share This Product
-
Product Description
-
6Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
GPH
4260
Gallons
Switch Type
Style
Sewage Pump
GPH
4260 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Piggyback Tether Float
- Designed for sewage removal in residential and light commercial applications
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 1/2 HP Permanent Split-Capacitor (PSC) Motor
- Oil-filled, thermally protected, energy-efficient design, only draws 10.5 FLA
- Piggyback Tether Float Switch (Not Shown)
- Pipe-mounted design, allows for easier servicing
- Multi-Vane, Cast Iron Vortex Impeller
- Dynamically balanced design, can pass spherical solids up to 2"
- Carbon/Ceramic/Buna-N Mechanical Seal
- Assures maximum protection against pump failure
- 416 Stainless Steel Shaft
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Helps reduce vibration and provides quieter operation
- 2" NPT (Female) Discharge
- Will replace most pumps without any plumbing changes
- 20-Foot, Quick-Disconnect Power Cord w/ Plug
- Pressure grommet for sealing and strain relief
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
Style
GPH
4260
Gallons
Switch Type
Style
Sewage Pump
GPH
4260 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- Barnes SEV412A - 1/2 HP Cast Iron Sewage Pump w/ Piggyback Tether Float
- Designed for sewage removal in residential and light commercial applications
- Enamel Coated Cast Iron Construction
- Helps prevent corrosion in harsh sewage applications
- 1/2 HP Permanent Split-Capacitor (PSC) Motor
- Oil-filled, thermally protected, energy-efficient design, only draws 10.5 FLA
- Piggyback Tether Float Switch (Not Shown)
- Pipe-mounted design, allows for easier servicing
- Multi-Vane, Cast Iron Vortex Impeller
- Dynamically balanced design, can pass spherical solids up to 2"
- Carbon/Ceramic/Buna-N Mechanical Seal
- Assures maximum protection against pump failure
- 416 Stainless Steel Shaft
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Helps reduce vibration and provides quieter operation
- 2" NPT (Female) Discharge
- Will replace most pumps without any plumbing changes
- 20-Foot, Quick-Disconnect Power Cord w/ Plug
- Pressure grommet for sealing and strain relief
- 2-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
Product Specs
+−
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
18.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
4260
GPH @ 5 feet
4260
GPH @ 10 feet
4260
GPH @ 15 feet
3300
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
45 Pounds
Consumer Warranty
2 Years
Product Length
9.63 Inches
Product Width
7 Inches
Product Height
15.69 Inches
