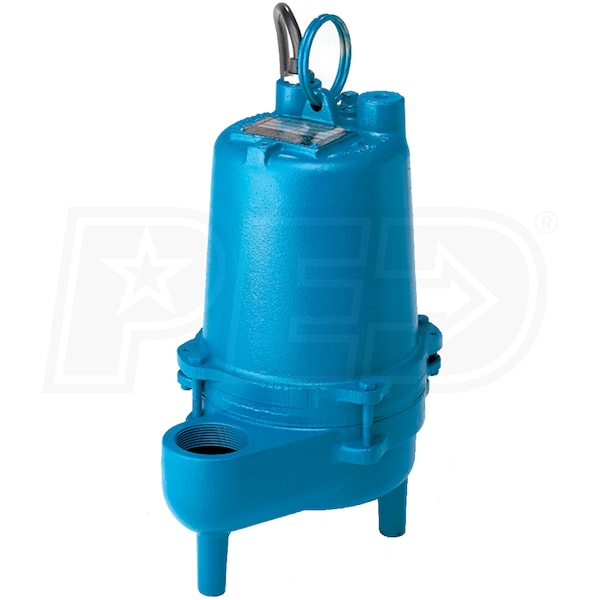

Barnes SE421AU - 4/10 HP Cast Iron Sewage Pump w/ Pump-Mount Tether Float (230V)

Model:

096751

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes SE421AU - 4/10 HP Cast Iron Sewage Pump w/ Pump-Mount Tether Float (230V)
Barnes SE421AU - 4/10 HP Cast Iron Sewage Pump w/ Pump-Mount Tether Float (230V)
Model: 096751
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

7200 Gallons

Switch Type

Piggy-Back Tether

  • Barnes SE411AU - 4/10 HP Cast Iron Sewage Pump w/ Integral Tether Float (230V)
  • Designed for sewage removal in residential and light commercial applications
  • Enamel Coated Cast Iron Construction
  • Helps prevent corrosion in harsh sewage applications
  • 4/10 HP Permanent Split-Capacitor (PSC) Motor (230V)
  • Oil-filled, thermally protected, energy-efficient design, only draws 6.2 FLA
  • 2-Vane, Cast Iron Vortex Impeller
  • Dynamically balanced design, can pass spherical solids up to 2"
  • Carbon/Ceramic/Buna-N Mechanical Seal
  • Assures maximum protection against pump failure
  • 416 Stainless Steel Shaft
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Helps reduce vibration and provides quieter operation
  • Integral Tether Float Switch (Not Shown)
  • Pump-mounted design, helps simplify installation
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 15-Foot, Quick-Disconnect Power Cord w/ Plug
  • Pressure grommet for sealing and strain relief
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

096751
specs product image PID-80804
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
6.2
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Starting Amps
13
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4125
GPH @ 20 feet
2100
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.4 hp
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Product Length
10.75 Inches
Product Width
7.75 Inches
Product Height
16.76 Inches
