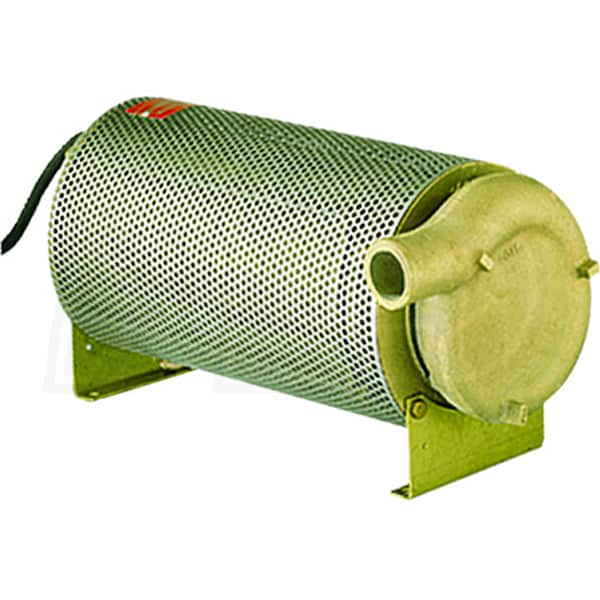

Barnes SFU72 - 3/4 HP Submersible Brass Fountain Pump (230V)

Model:

087784

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes SFU72 - 3/4 HP Submersible Brass Fountain Pump (230V)
Barnes SFU72 - 3/4 HP Submersible Brass Fountain Pump (230V)
Model: 087784
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Fountain

GPM

94 Gallons

  • Barnes SFU72 - SFU Series 3/4 HP Submersible Fountain Pump (230V
  • Designed for use in decorative water displays
  • Brass & Stainless Steel Construction
  • Helps extend pump life in aquatic applications
  • 304 Stainless Steel Intake Screen
  • Wrap-around design, with 5/32" diameter mesh helps prevent clogging
  • 3/4 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor (230V)
  • Thermally protected, energy-efficient design, only draws 6 FLA
  • Six-Vane Brass Impeller
  • Open design, allows for passage of small solids
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Motor Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated Ball (Motor End) & Sleeve (Pump End) Bearings
  • Provides increased life-span and quieter operation
  • 12-Foot 16/3 SOW Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

087784
specs product image PID-80849
Base
Base Material
Brass
Motor
Voltage
230 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
94 Gallons
Outlet Diameter
1-3/4 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
50 Feet
Submersible
Yes
Engine
Horsepower
0.75 hp
Overview
Weight
55 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches
