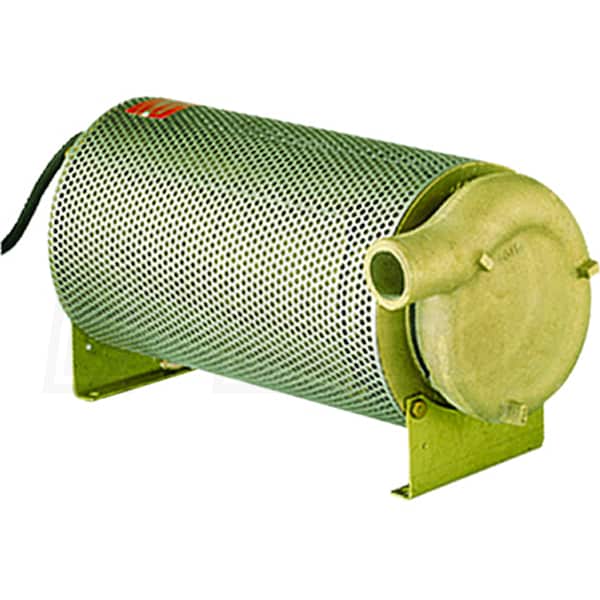

Barnes SFU51 - 1/2 HP Submersible Brass Fountain Pump

Model:

087782

Write A Review
$1,652.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Out of Stock
Sorry, this product is currently unavailable.
Continue Shopping With These Categories
Barnes SFU51 - 1/2 HP Submersible Brass Fountain Pump
Barnes SFU51 - 1/2 HP Submersible Brass Fountain Pump
Model: 087782
$1,652.00
Out of Stock
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Fountain

GPM

78 Gallons

  • Barnes SFU51 - SFU Series 1/2 HP Submersible Fountain Pump
  • Designed for use in decorative water displays
  • Brass & Stainless Steel Construction
  • Helps extend pump life in aquatic applications
  • 304 Stainless Steel Intake Screen
  • Wrap-around design, with 5/32" diameter mesh helps prevent clogging
  • 1/2 HP Oil-Filled, Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 9.5 FLA
  • Four-Vane Brass Impeller
  • Open design, allows for passage of small solids
  • Carbon/Ceramic/Buna-N Seal
  • Assures maximum protection against pump failure
  • Stainless Steel Motor Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated Ball (Motor End) & Sleeve (Pump End) Bearings
  • Provides increased life-span and quieter operation
  • 12-Foot 16/3 SOW Power Cord w/ Bare Lead
  • Requires hardwired connection for operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

087782
specs product image PID-80847
Base
Base Material
Brass
Motor
Voltage
120 Volt
Running Amps
9.5
Thermal Protection
Yes
Power Cord Length
12 Feet
Oil Free Motor
No
Starting Amps
21
Pump
Gallons Per Minute
78 Gallons
Outlet Diameter
1-3/4 Inch
Mechanical Seal Material
Ceramic Carbon
Housing Material
Brass
Impeller Material
Brass
Total Head Lift
42 Feet
Submersible
Yes
Engine
Horsepower
0.5 hp
Overview
Weight
52 Pounds
Consumer Warranty
2 Years
Product Length
15.75 Inches
Product Width
7.75 Inches
Product Height
8.06 Inches
