Sorry, this product is no longer available.
Try this product instead
View Tsunami Moisture Minder II Internal Reservoir
Model:
142-0000
$118.00
Product Discontinued

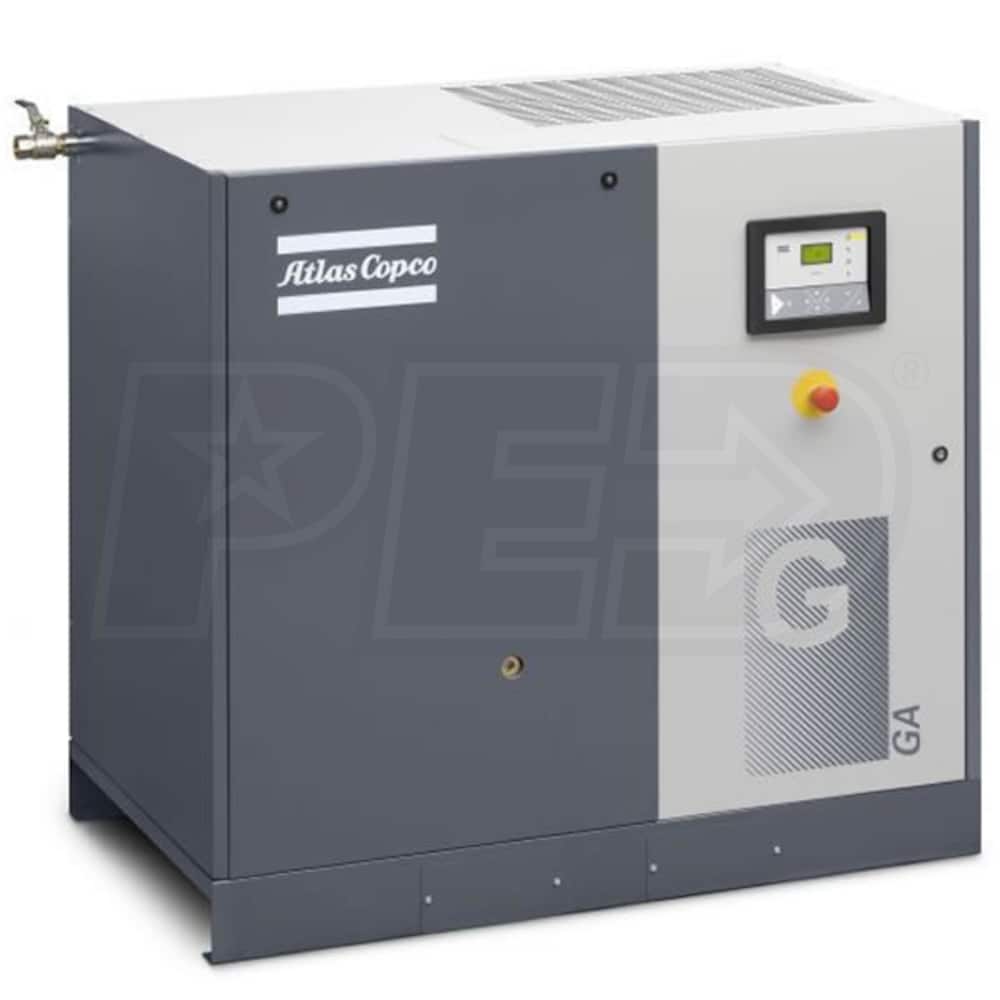

Atlas Copco GA22 WorkPlace 30-HP Tankless Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Atlas Copco GA22 WorkPlace 30-HP Tankless Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 8153178267
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230/460 Volt AC

Phase

3-Phase

CFM

126

Tank Size

0

  • Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • Oil-Injected 30-HP Rotary Screw Compressor
  • Powerful & reliable solution engineered for industrial conditions
  • Delivers high-quality air in temperatures up to 46°C / 115°F
  • Premium Efficiency TEFC Electrical Motor
  • Motor & drive train are enclosed & greased for life, maximizing reliability
  • 100% Duty Cycle For 24/7 Operation
  • Reduced cubicle temperature doubles electrical component life
  • Low noise rotary technology maximizes workspace
  • Integrated Air Dryer Reduces Footprint
  • Counterflow heat exchanger & integrated water separator maximize results
  • Reduced power consumption thanks to new compressor element
  • Elektronikon Color Controller
  • Graphic displays for warnings, maintenance, general condition
  • Control up to 6 compressors; monitor your compressor remotely
  • 126 CFM At 125 PSI With 1" Air Outlet
  • Connects easily to your system (tank not included)
  • Extended Service Intervals
  • Filter changes every 4,000 hours; oil every 8,000 hours or 2 years
  • Lowers maintenance costs & down time (see Warranty for details)
  • No-Cost Start-Up For This Unit Is Provided By Atlas
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

8153178267
specs product image PID-51096
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
30
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
126
CFM Rated @
125 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1267 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
33 Inches
Product Height
48 Inches
Power Type
Electric
Additional Model Numbers

GA22-125-AFF-208-230-460, 8153178267
