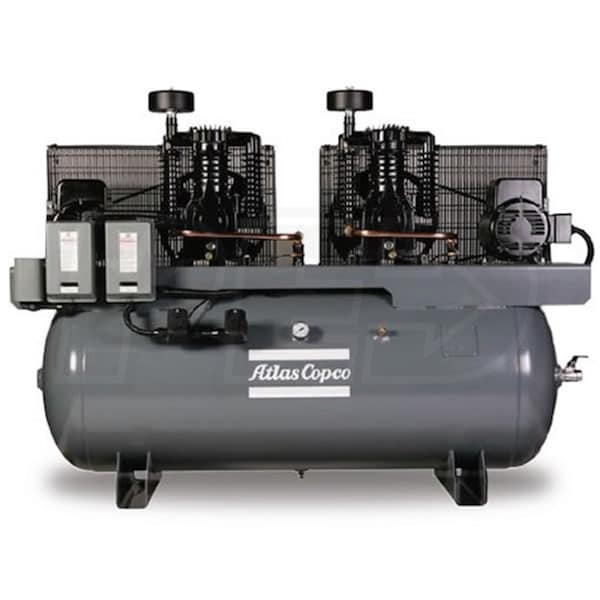

Atlas Copco AR15 7.5-HP / 15-HP 120-Gallon Two-Stage Duplex Compressor (230V 1-Phase)
Atlas Copco AR15 7.5-HP / 15-HP 120-Gallon Two-Stage Duplex Compressor (230V 1-Phase)
Model: 9710502244
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

50.5

Tank Size

120

  • Duplex Mounted 7.5-HP Pumps
  • Two 2-stage compressor pumps meet extra demand
  • Can double the lifetime of your compressed air system
  • Lead-Lag Control System
  • Highly efficient system delivers energy savings
  • Dual Pressure Switches & Alternator
  • Running hours are balanced for equal lifetimes
  • Both compressors can run for maximum output
  • Start-Stop Pressure Switch Control
  • Puts out 50.5 CFM at 100 PSI; 175 PSI maximum
  • Large Multi-Blade Flywheels
  • Low noise, superior cooling
  • Fully enclosed PVC-coated belt guards protect the belts & operator
  • 120 Gallon ASME Tank & Safety Valve
  • Safe addition to any facility
  • High Efficiency Air Inlet Filters
  • Clean air for an extended operational life
  • 2 Year Bumper To Bumper Factory Warranty
  • Industry leading coverage protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

9710502244
specs product image PID-63062
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
896 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers

AR-15-120H-208-230-1D, 9710502244
