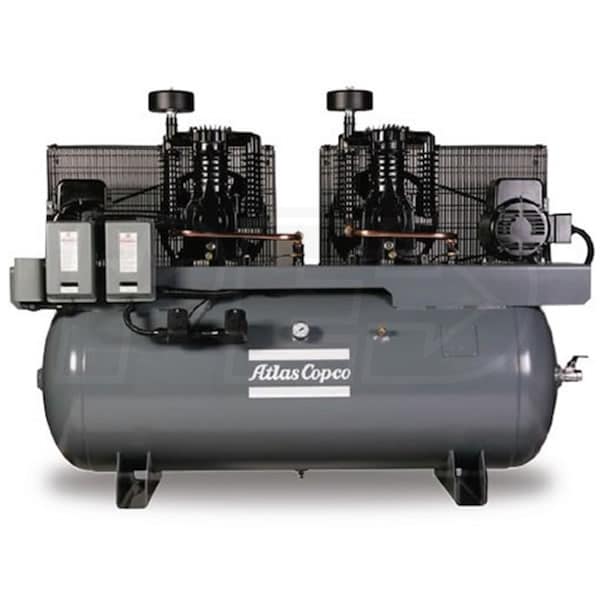

Atlas Copco AR10 5-HP / 10-HP 120-Gallon Two-Stage Duplex Compressor (208-230V 3-Phase)

Atlas Copco AR10 5-HP / 10-HP 120-Gallon Two-Stage Duplex Compressor (208-230V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 9710502242
$4,313.00

Factory-Direct
Ships in 4-6 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Voltage
Add-Ons
+$75.00
Free Shipping$4,313.00Buy Now
Free Freight$4,313.00Visit Site
Factory-Direct
Ships in 4-6 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
208-230 Volt AC
CFM
33
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
33 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Duplex Mounted 5-HP Pumps
  • Two 2-stage compressor pumps meet extra demand
  • Can double the lifetime of your compressed air system
  • Lead-Lag Control System
  • Highly efficient system delivers energy savings
  • Dual Pressure Switches & Alternator
  • Running hours are balanced for equal lifetimes
  • Both compressors can run for maximum output
  • Start-Stop Pressure Switch Control
  • Puts out 33 CFM at 175 PSI
  • Large Multi-Blade Flywheels
  • Low noise, superior cooling
  • Fully enclosed PVC-coated belt guards protect the belts & operator
  • 120 Gallon ASME Tank & Safety Valve
  • Safe addition to any facility
  • High Efficiency Air Inlet Filters
  • Clean air for an extended operational life
  • 2 Year Bumper To Bumper Factory Warranty
  • Industry leading coverage protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
778 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
AR-10-120H-208-230-3D, 9710502242
Grade
Commercial
Style
208-230 Volt AC
CFM
33
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
33 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Duplex Mounted 5-HP Pumps
  • Two 2-stage compressor pumps meet extra demand
  • Can double the lifetime of your compressed air system
  • Lead-Lag Control System
  • Highly efficient system delivers energy savings
  • Dual Pressure Switches & Alternator
  • Running hours are balanced for equal lifetimes
  • Both compressors can run for maximum output
  • Start-Stop Pressure Switch Control
  • Puts out 33 CFM at 175 PSI
  • Large Multi-Blade Flywheels
  • Low noise, superior cooling
  • Fully enclosed PVC-coated belt guards protect the belts & operator
  • 120 Gallon ASME Tank & Safety Valve
  • Safe addition to any facility
  • High Efficiency Air Inlet Filters
  • Clean air for an extended operational life
  • 2 Year Bumper To Bumper Factory Warranty
  • Industry leading coverage protects your investment
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
778 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
AR-10-120H-208-230-3D, 9710502242
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
33
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
778 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
77 Inches
Product Width
27 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
AR-10-120H-208-230-3D, 9710502242
