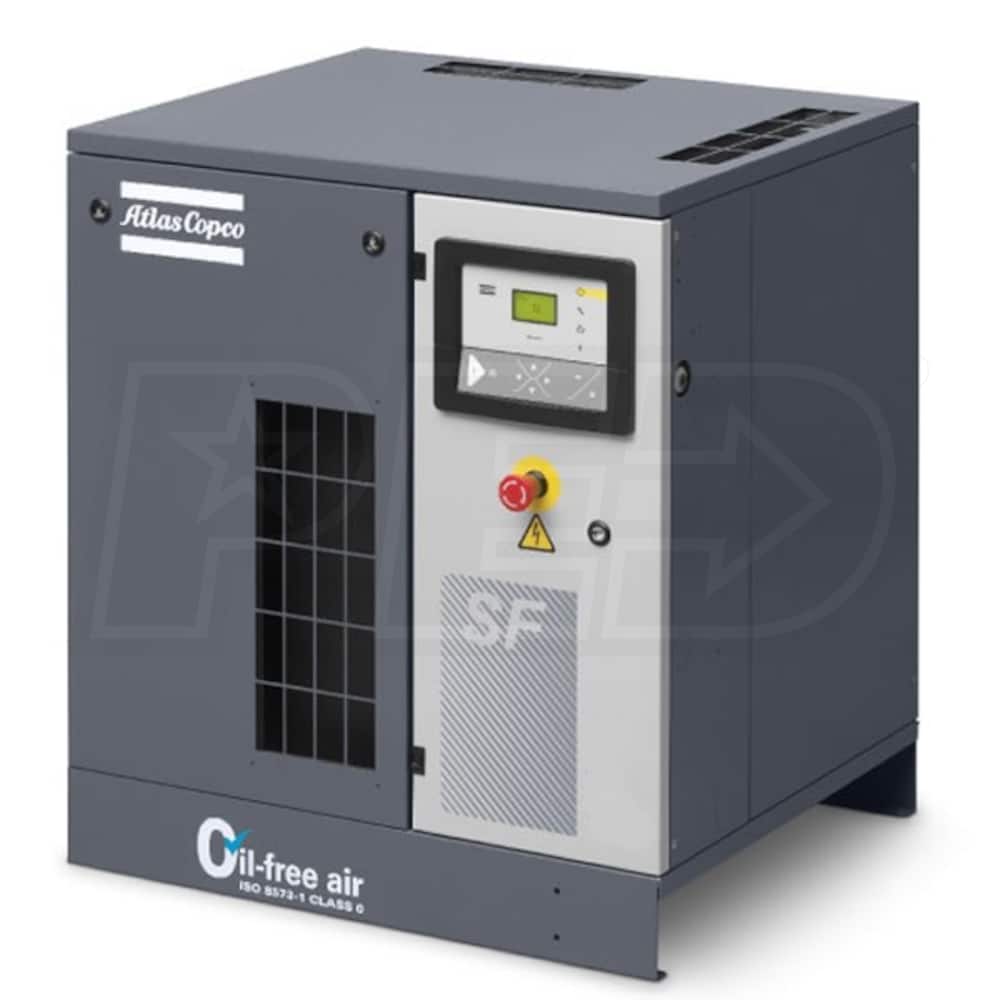

Atlas Copco SF6+ AFF 7.5-HP Tankless High Pressure Oil-Free Mono Scroll Air Compressor w/ Elektronikon Controller & Dryer (208/230/460V 3-Phase 145 PSI)
Model: 8153611846
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
16.1
CFM Rated @ 145 PSI
Grade
Commercial
CFM
16.1 CFM Rated @ 145 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Pure ISO 8573-1 CLASS 0 Certified High Pressure Oil-Free Air (Not For Medical Use)
- Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
- Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
- Cost Efficient, High Qualty Air
- Oil-free compressed air is a prerequisite for many manufacturing processes: labs, food & beverage, hospitals, dental, etc.
- Refrigerant Air Dryer
- Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air to prevent rust in your air network
- Elektronikon® Controller
- Easily monitor warning indications and maintenance scheduling, provides online visualization of running conditions
- Super Silent Acoustic Enclosure
- Extremely low noise levels as low as 59 dBA allows the compressor to be installed directly into the work environment
- Energy Efficient IE3 TEFC IP55 Class F Motor
- Suited for sensitive applications which require flexibility and energy efficiency
- User and/or Atlas technician can change the unit to 208V, 230V, or 460V 3-phase incoming voltage
- Unloaded power consumption is eliminated thanks to the simple start/stop control
- Scroll Compressor Element With Air Cooled Aftercooler
- Delivers 145 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
- Integrated Vertical Design
- A minimal number of moving parts ensure reliable performance & easy serviceability
- Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
59
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Grade

Style

CFM
16.1
CFM Rated @ 145 PSI
Grade
Commercial
CFM
16.1 CFM Rated @ 145 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Pure ISO 8573-1 CLASS 0 Certified High Pressure Oil-Free Air (Not For Medical Use)
- Class 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from downtime
- Scroll compressors have no metal to metal contact, so there's no need for oil lubrication in the compression chamber
- Cost Efficient, High Qualty Air
- Oil-free compressed air is a prerequisite for many manufacturing processes: labs, food & beverage, hospitals, dental, etc.
- Refrigerant Air Dryer
- Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air to prevent rust in your air network
- Elektronikon® Controller
- Easily monitor warning indications and maintenance scheduling, provides online visualization of running conditions
- Super Silent Acoustic Enclosure
- Extremely low noise levels as low as 59 dBA allows the compressor to be installed directly into the work environment
- Energy Efficient IE3 TEFC IP55 Class F Motor
- Suited for sensitive applications which require flexibility and energy efficiency
- User and/or Atlas technician can change the unit to 208V, 230V, or 460V 3-phase incoming voltage
- Unloaded power consumption is eliminated thanks to the simple start/stop control
- Scroll Compressor Element With Air Cooled Aftercooler
- Delivers 145 PSI with proven durability & reliability along with solid efficiency; vertical setup improves cooling
- Integrated Vertical Design
- A minimal number of moving parts ensure reliable performance & easy serviceability
- Air inlet paper cartridge filter eliminates dust & particles down to 1 micrometer
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
59
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
59
Amp Draw
24.3/24/12
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
16.1
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
415 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
26 Inches
Product Height
33 Inches
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−

Expert Recommended Accessories
Hand Picked By Our Expert Joshua
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−
+
Ask Joshua, Our Product Expert, A Question!
*Required Fields

+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

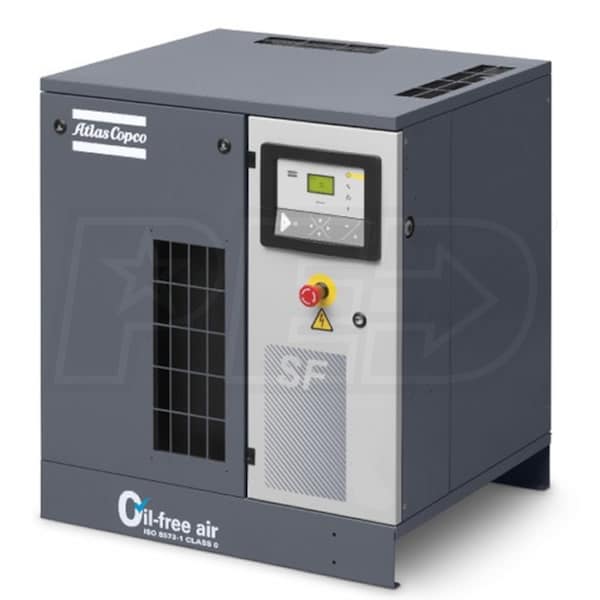

Atlas Copco SF6+ AFF 7.5-HP Tankless High Pressure Oil-Free Mono Scroll Air Compressor w/ Elektronikon Controller & Dryer (208/230/460V 3-Phase 145 PSI)






×
