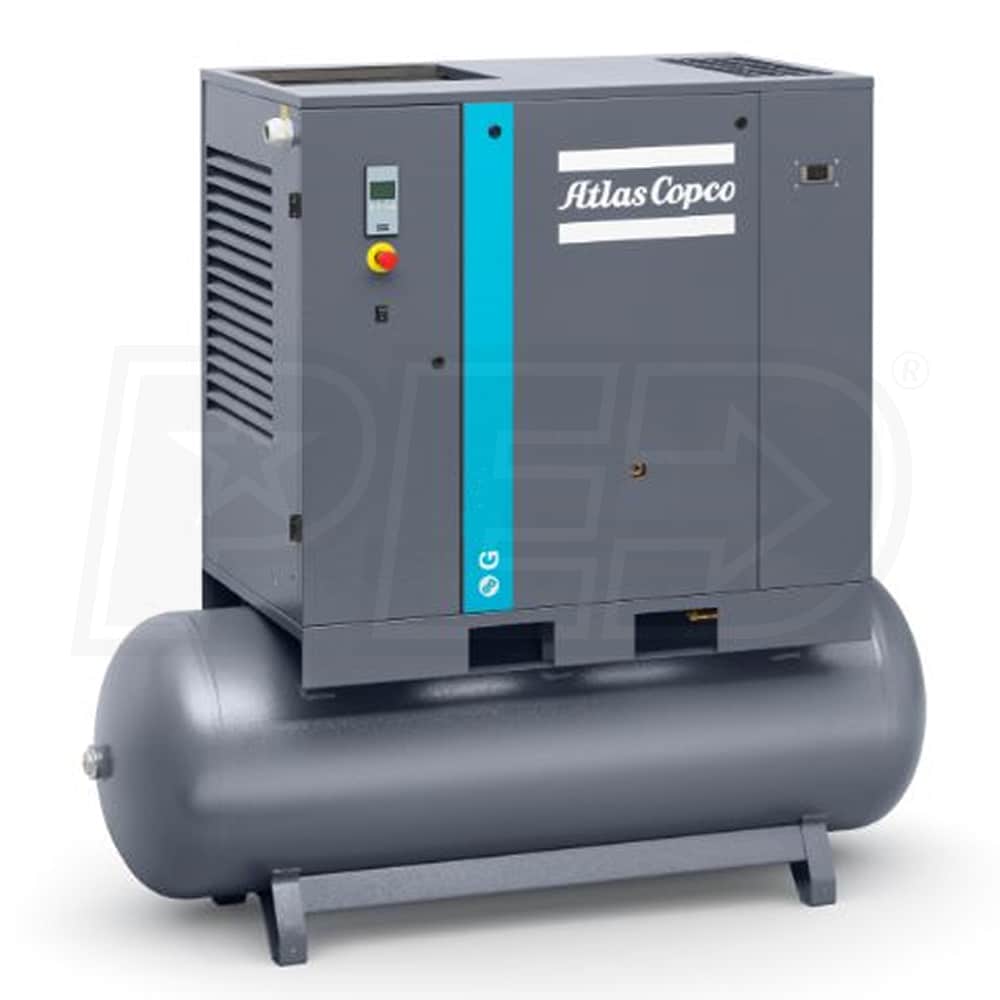

Atlas Copco G15L 20-HP 132-Gallon AP Rotary Screw Air Compressor (208-230/460V 3-Phase)
Model: 8153335815
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
82
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Grade
Commercial
CFM
82 CFM Rated @ 125 PSI
Tank Size
132 Gallons
Features
Features
- Tropical Thermostat May Be Required If Unit Is Used In The Following States:
- Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
- Please Contact Us Directly At 866-437-8002 For Assistance
- Latest Generation 20-HP Oil-Injected G Series
- Ideal for small to medium businesses
- Quiet performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Larger Drivetrain, More Energy Saving & Higher Air Flow Rate
- Produces 82 CFM @ 125 PSI; Maximum 125 PSI
- 100% continuous duty cycle for reliable operation
- Meets ISO 9001, ISO 14001 & ISO 1217 which ensures a trouble-free air compressor
- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
- Robust & Efficient Belt-Driven Rotary Compression Element
- Reduced noise levels and low vibration
- Full sound enclosures which reduce the sound levels
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Saves power to reduce energy cost and improves reliability
- Automatically switches for high, low, and intermittent air consumption
- Spin-On Oil Separator & Oil Filter
- Designed to be easily changed and maintained
- 2-step separator system reduces oil consumption & protects lubrication quality
- 132-Gallon ASME Air Tank
- 1-inch NPT air outlet; integrates easily with your equipment
- 1 Year Bumper-to-Bumper
- Plug and play installation
Specifications
Engine
HP
20
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
67
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
82
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
1184 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
72 Inches
