Ariens APEX-48 (48") 23HP Kohler Zero Turn Lawn Mower

Model:

991161

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Ariens APEX-48 (48

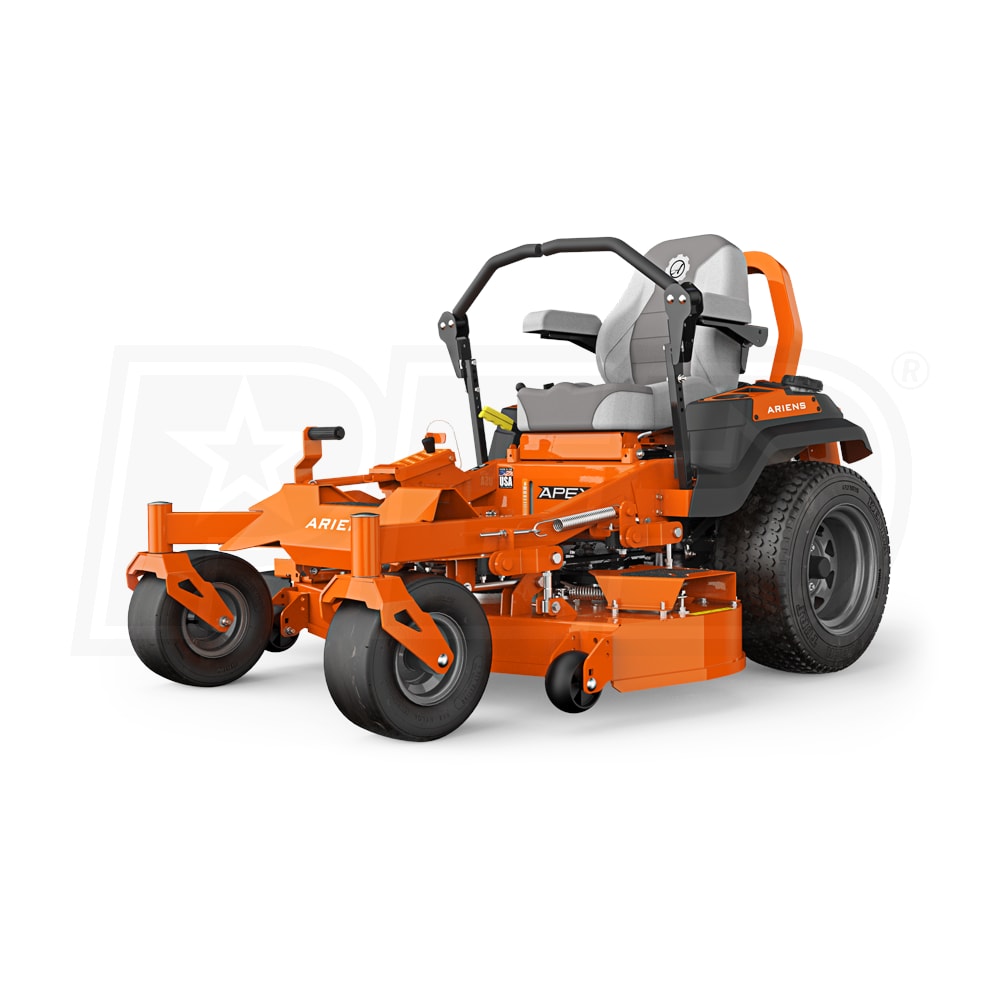

Ariens APEX-48 (48") 23HP Kohler Zero Turn Lawn Mower
Model: 991161
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Semi-Pro

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

48 Cutting Inches

Engine

Kohler 7000V



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Premium 23HP/725cc Kohler 7000 Series V-Twin OHV Engine
  • Overhead valve design for better fuel economy and top performance
  • Full-pressure lubrication system with full-flow filter
  • Commercial Grade Components
  • Durable Hyrdo-Gear® ZT-3100 transmission
  • Twin oil filters for easy maintenance
  • Ogura electric clutch
  • 48-Inch, 3-Blade Fabricated Mower Deck
  • 10-gauge welded steel deck design
  • 5.5" commercial depth deck shell for cutting in tough conditions
  • 4-point commercial deck lift system
  • Mechanical foot lift raises and lowers the mowing deck
  • Easy Adjustments
  • Select 1 of 17 cutting positions in 1/4" increments with a simple pin selection
  • Quickly access blade spindles and belts for cleaning
  • Advanced Belt Tension Technology
  • Self-adjusting belt tension keeps the belt in constant tension
  • Minimizes wear and tear, while maintaining a quality cut
  • Commercial Grade Welded Tubular Steel Frame
  • Welded joints provide structural rigidity for added strength and stability
  • Adjustable High-Back Plush Seat With Armrests
  • Extra foam cushion and padded armrests
  • More comfortable and provides more back support
  • Roll-Over-Protection (ROPS) Capable
  • Provides additional safety benefits by reducing the risk of injury
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

991161
specs product image PID-102912
Engine
Engine Brand
Kohler 7000V
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
23 HP
CC
725 CCs
Fuel Tank Size
5 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
823 Pounds
Consumer Warranty
4 Years
Product Length
71.5 Inches
Product Width
51 up/63 down Inches
Product Height
42 Inches
UPC
510580451913
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Blades
3 Blades
Deck Construction
Welded
Spindle Material
Aluminum
Deck Positions
17 Positions
Cutting Width
48 Inches
Cutting Height
1.5-5.0 Inches
Deck Lift System
Manual Foot Operated
Engagement
Ogura Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
8 MPH
Maximum Reverse Speed
4 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT-3100 Hydro-Gear Transaxle
Accessories
Rear Bagger
Sold Separately
Engine Guard
Yes
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Trailer Hitch
Sold Separately
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
13 x 6 Inch
Front Axle
Fixed
Rear Tire Size
22 x 10.5 Inch
Tire Type
Pneumatic Wheels
