iON Products SP20A201 - iON Vertical Float Switch for sale.

Power Equipment Direct Offers Direct Discounts and a Tax-Free Guarantee on iON Products SP20A201.

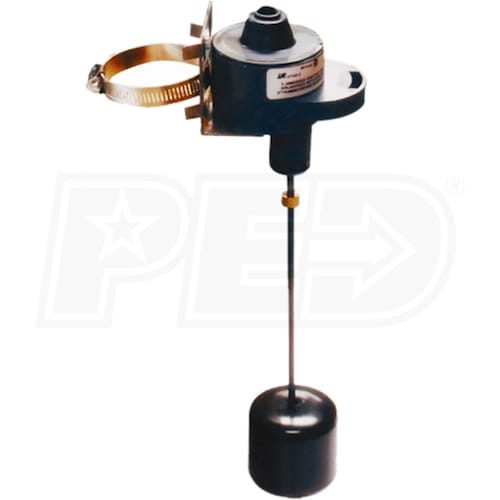

iON Vertical Float Switch

Close
iON Products Power Equipment and AccessoriesModel: SP20A201
(Based on expert analysis, manufacturer ratings and customer reviews)
4.2 out of 54.2 out of 54.2 out of 54.2 out of 54.2 out of 5
14 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 7-14 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$56.05

StoreShippingPriceShop

$56.05
No Sales Tax*
(Except IL)
Buy

$56.05
No Sales Tax*
(Except IL)
Visit Site

$56.05
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 7
    Q&A
  • 14
    Reviews
  • Articles
  • Shipping
  • Accessories
Universal Vertical Float Switch
Easily mounts to discharge pipe
6 inches of maximum drawdown

Adjustable Design
Reduce pump cycles in deeper pits or areas w/ high water tables

115V Piggyback Style Plug
Can be used with sump & utility pumps

Cord Length
10 feet


Need Help? Ask Our Power Equipment Experts.
Motor
Power Cord Length
10 Feet
Nominal Voltage
120 Volt
Pump
Float Type
Vertical Float
Overview
Weight
3 Pounds
Consumer Warranty
3 Years
Model
SP20A201
Download Documents
Need Help? Ask Our Power Equipment Experts.
View Accessories For This Product.
Read Reviews
How-To Library

*Ask Jim about the iON Products SP20A201. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit
  7 Questions
Q: Do you make a switch with a longer down rod to give the float more travel? Once the switch is engaged, I need a greater range from on to off of the switch. Thanks
by Winston R from Illinois on April 01, 2014

A: Thank you for your interest in Sump Pumps Direct. Unfortunately, we do not offer any vertical float switches with a longer on/off range. Another option however, might be the PHCC Pro Series Ultimate Sensor Digital Pump Controller System, model USC3 which gives you the ability to control your pump run time from 5-45 seconds of the HydroCheck Electronic Hi-Lo Pump Switch, model HC6000 which includes 2 sensors, one for your "On" point and one for your "Off" point. Please note that these switches are for use with any sump pump rated up to a maximum 12-14 running amps.
If you have additional questions, please let me know.
by Jim, Product Expert
Q: Jim. Any reason I cannot cut off the piggyback plug and install crimp terminals to use on my battery back up pump. I only need a normally open contact in the switch when the water is at a normal level that closes on water rise make it work. My tethered float switch is too unreliable
by Ed from Illinois on June 15, 2013

A: Per the manufacturer, it can be done. However it would void warranty.
by Jim, Product Expert
Q: Hello Jim, what is the max full load amps the Storm pro vertical switch can handle? I have a heavy duty pump that is 15 Full Load Amps. If can't handle do you have any recommendations other than a tether?
Thanks, TC

by Thomas from New York on March 08, 2013

A: They don't really list a full amp rating for the StormPro vertical float switch. Typically, the max running amp rating is 15 and it will normally handle most surges associated with it. You should be ok at 15 Full Load Amps.
by Jim, Product Expert
Q: Can I buy a longer shaft to get more range from the switch.
by Ron Decker from Ohio on April 30, 2011

A: Unfortunately not. This switch has a 6 1/2 inch differential. Another option might be a TETHER switch. They are adjustable and can have a wider switching range.
by Jim, Product Expert
Q: is the shaft the float ball rides on made of metal or is it plastic.
by Eric from Wisconsin on March 28, 2011

A: The shaft on that switch is made of fiberglass.
by Jim, Product Expert
Q: Can this float switch be used with a 12 volt dc backup sump pump?
Is it adjustable or fixed limit?


by David Nash from Illinois on January 05, 2011

A: This float switch has a 120V piggyback plug. It would only work with a dc backup system that can accommodate it.

The factory set on/off differential for this switch is about 6.5". Small adjustments can be made to alter that differential.
by Jim, Product Expert
Q: What is the maximum range adjustment for this switch?
by Jeff B from Michigan on January 04, 2011

A: The factory set on/off differential is roughly 6.5" and the manufacturer does not specify what the maximum range is.
by Jim, Product Expert
iON Products SP20A201 Reviews & Ratings
Overall Rating
Features
4/5
Quality
4/5
Performance
4/5
Value
4/5
Overall
4.2 out of 54.2 out of 54.2 out of 54.2 out of 54.2 out of 5
Pros
Easy To Use (2)
Reliable (1)
Price (1)
Cons
Durability (1)
Unreliable (1)
40% of respondents would recommend this product to a friend
14 Reviews  Sort by

Dennis M.
Park Ridge, IL
Purchased from Power Equipment Direct
Purchased 1/25/16
Most Helpful Positive Review
REVIEWED
MAR.
09
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Custom Welding & Metallurgy..chemist/welder
Many pump failures with float and buoyant type switches...plus limited water level adjustment...This
solved all the sump problems....TOP SHELF PRODUCT....Dennis M....Custom Welding & Metallurgy
Dennis Recommends This iON Products Product
Was this review helpful?
00
Cam
Purchased from Power Equipment Direct
Purchased 1/6/13
Total Helpful Votes
12 Helpful Votes
REVIEWED
JAN.
28
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Works Great
I attached a longer pole to the original and now the pump stays off even longer.
Was this review helpful?
121
Kenneth K.
Deer Park, NY
Purchased from Power Equipment Direct
Purchased 11/9/13
REVIEWED
DEC.
22
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Sump Pump Switch
Easy install, KISS, keep it simple stupid. Works well easy install, reliable too
Pros: Easy To Use, Price, Reliable
Kenneth Recommends This iON Products Product
Was this review helpful?
20
Donald
Purchased from Power Equipment Direct
Purchased 3/18/13
Total Reviews
2 Reviews
REVIEWED
JUN.
20
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Switch Failure
First switched failed within one month. Hopefully the replacement one will last longer and the defective one was uncharacteristic of product. Overall, very pleased.
Was this review helpful?
31
Utas
Purchased from Power Equipment Direct
Purchased 12/21/12
Total Reviews
2 Reviews
REVIEWED
JAN.
12
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Quiet / Efficient Sump Pump With An "ok" Float
After the 2012 drought, our sump became dry. The Wayne sump pump that I installed in 2008 became corroded when significant rainfall occurred, the pump worked, but sounded a like the bearings were damaged. The sump is sealed, because it is linked with a radon abatement system replacing the pump is a bit more of a task than most but I was happy to rid myself of the Wayne, as it had an electronic float that limited the pump water level to only 3 inches because of this "feature," it... more
Was this review helpful?
31
Jim C.
Hillsborough, NJ
Total Reviews
2 Reviews
REVIEWED
FEB.
09
2015
2 out of 52 out of 52 out of 52 out of 52 out of 5
Great Until It Dies
I've had 2 of these switches fail within the past 2 and a half years. The first one failed after after about 6-8 months, and was replaced under warranty. I'm hoping the 2nd one is still under warranty too. The switch works really well until it dies. I can't recommend it due to its unreliability over the long run. On the plus side, the customer service of the manufacturer (Metropolitan Industries) was very good the first time around.
Pros: Easy To Use
Cons: Unreliable, Durability
Jim Does Not Recommend This Product
Jim, the Sump Pump Expert
Product Expert
Jim,
I'm sorry to hear of the problems that you have been experiencing with the iON Vertical Float Switch, model SP20A201. I have not actually heard of many issues with this switch so I am a bit confused as well, as to why you have gone through 2 switches in the past 2-1/2 years. Can you please tell me what pump you are using this switch with? These are rated for use with any sump pump rated Hp @ 120VAC(13 Amps) or less. If the pump you are connecting to has a higher rating, this would explain the problem. If not, you would need to contact Metropolitan Industries once again for their assistance.
800-323-1665, Ext. 231
more
Was this review helpful?
21
Marilyn R.
Wetserville, OH
Purchased from Power Equipment Direct
Purchased 4/4/15
REVIEWED
APR.
25
2015
3 out of 53 out of 53 out of 53 out of 53 out of 5
Constant Running Sump Pump
It is working fine now. So disappointed the pump lasted only 2 years before having a problem. Thank God for a plumber who knew where to order and get it quickly...not the address on the original pump.

My basement floods if pump is not working, this time it would not turn off unless unplugged. Quite a nuisance during heavy rainstorms which we were having at the time the problem occurred. Hope it works properly for awhile.
Marilyn Does Not Recommend This Product
Was this review helpful?
11
Tom
Williamsville, NY
Purchased from Power Equipment Direct
Purchased 6/9/12
Total Reviews
2 Reviews
REVIEWED
JUL.
24
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Zoeller Solution
I replaced an aging pedestal pump with this Zoeller pump and storm pro switch. Super easy installation, quiet, short efficient runs and a dry basement. I cannot say enough about the responses from my questions for the proper gear.
Was this review helpful?
00
Jayson
Hollis Hills, NY
Purchased from Power Equipment Direct
Purchased 6/30/11
Total Reviews
2 Reviews
REVIEWED
JUL.
21
2011
1 out of 51 out of 51 out of 51 out of 51 out of 5
Defective Pump
My StormPro sump pump BA-33M worked for exactly one second, then died. The pump was very hot, so it obviously burnt out. Had to get a new one from your distributor, Metropolitan Industries. Before you send out your products, you must check them out to make sure they work.
Was this review helpful?
22
Christina
Holt, MI
Purchased from Power Equipment Direct
Purchased 6/17/13
Total Reviews
2 Reviews
REVIEWED
JUN.
21
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Powerful Yet So Quiet!
My husband and I purchased our home a little over a year ago. During this last big storm we had, our current sump pump stopped working, the attached float switch only worked at random, triggering the alarm on our back up to consistently run.

I did some research online and came upon Sump Pumps Direct. The reviews were immensely helpful and descriptive, especially to a couple who has never had a home with a sump pump before. We decided to get the StormPro BA-33M. This pump is fantastic. You... more
Was this review helpful?
01
Bob
Purchased from Power Equipment Direct
Purchased 1/5/13
Total Reviews
2 Reviews
REVIEWED
FEB.
10
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Installed Quickly & Runs Quietly Fast Ship
I needed to replace a Ridgid SP-500 sump pump bought over 5 yrs ago from the orange big-box store with one switch replacement after 3 yrs. I noticed that the side bolts were rusting which would compromise the pump in the very near future. I replaced it with a StormPro BA-33M. Pump was replaced quickly (had lots of experience with this as we have a very high water table and I've replaced about 3 pumps and 2 switches in my time here).

The StormPro is a 1/3 hp model replacing the Ridgid 1/2... more
Was this review helpful?
01
