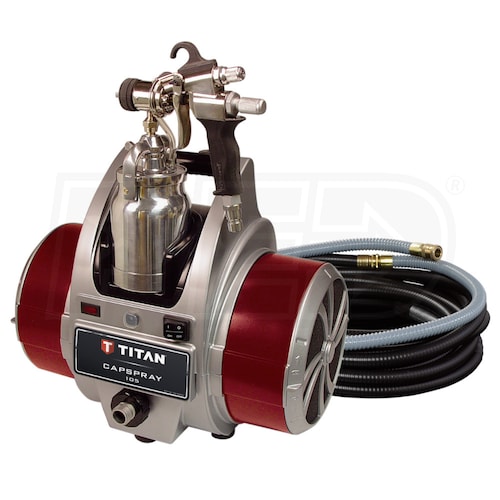

Titan Capspray 105 10.5 PSI 5-Stage HVLP Turbine Paint Sprayer

Model:

524033

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Titan Capspray 105 10.5 PSI 5-Stage HVLP Turbine Paint Sprayer
Titan Capspray 105 10.5 PSI 5-Stage HVLP Turbine Paint Sprayer
Model: 524033
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 5-Stage Turbine Sprayer For Professional Finishes
  • Spray hard to atomize coatings with little or no thinning
  • 10.5 PSI atomizes thick latex, solvent-based paints, enamels, etc

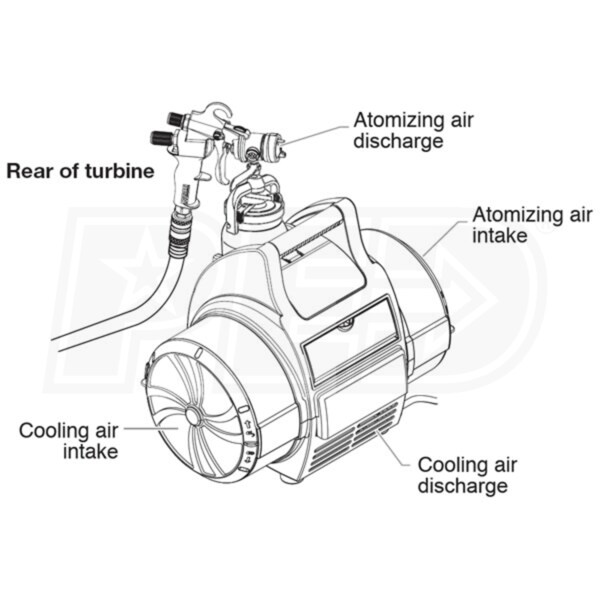

  • Dual Air Filtration
  • High-flow automotive type air filter keeps turbine cool
  • Pre-filter on the atomizing air side prevents contamination

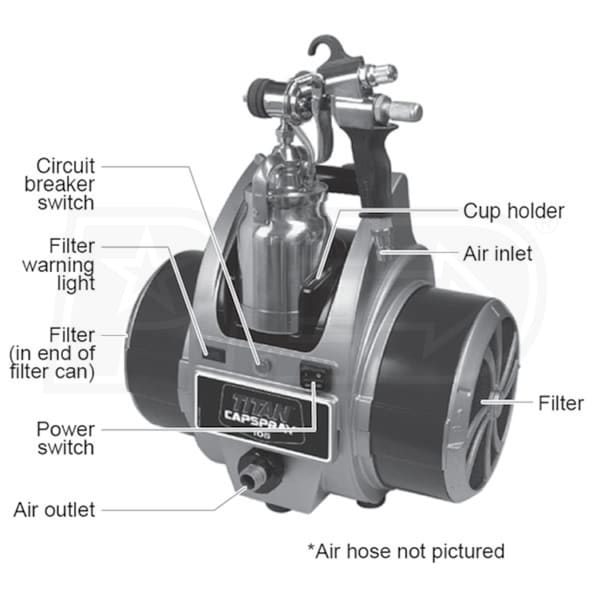

  • Dirty Filter Warning Light
  • High transfer efficiency ranges up to 90%

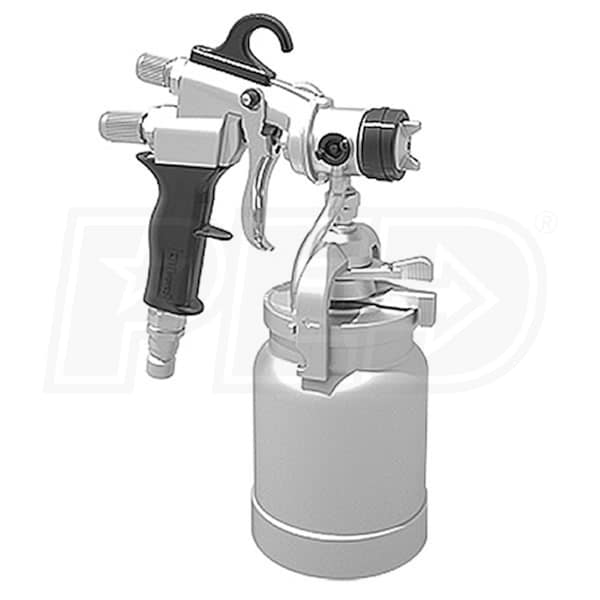

  • Includes Maxum Elite Spray Gun
  • Comes with both #3 & #4 Proset for varied applications
  • 3 spray patterns - round, horizontal & vertical
  • Two-stage trigger pull for greater control & atomization
  • Efficient & Versatile
  • Sprays with a flow rate of 0.2 gal. per minute
  • On-Board Storage
  • Built-in tool box keeps parts organized
  • Cup holder fits standard 1 quart gun for storage & transport
  • Work In A Wide Area
  • 5' flexible whip hose links spray gun to air hose
  • 30' flexible air hose links whip hose to turbine
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

524033
specs product image PID-13738
Overview
Product Category
Paint Sprayer
Weight
23.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.25 Inches
Product Width
27 Inches
Product Height
16.75 Inches
Power Type
Electric
UPC
024964193493
Additional Model Numbers

0524033, 524033

Motor
Motor Voltage
120-Volt Single-Phase
Running Amps
14.3 Amps
Hose
Hose Length
30 Feet
Hose Diameter
3/4 Inch
Housing
Frame Type
Hand Carry
Wheels
Not Applicable
Paint Sprayer (PWD)
Max Operating Pressure
10.5
Spray Gun Included
Maxum Elite Gun
