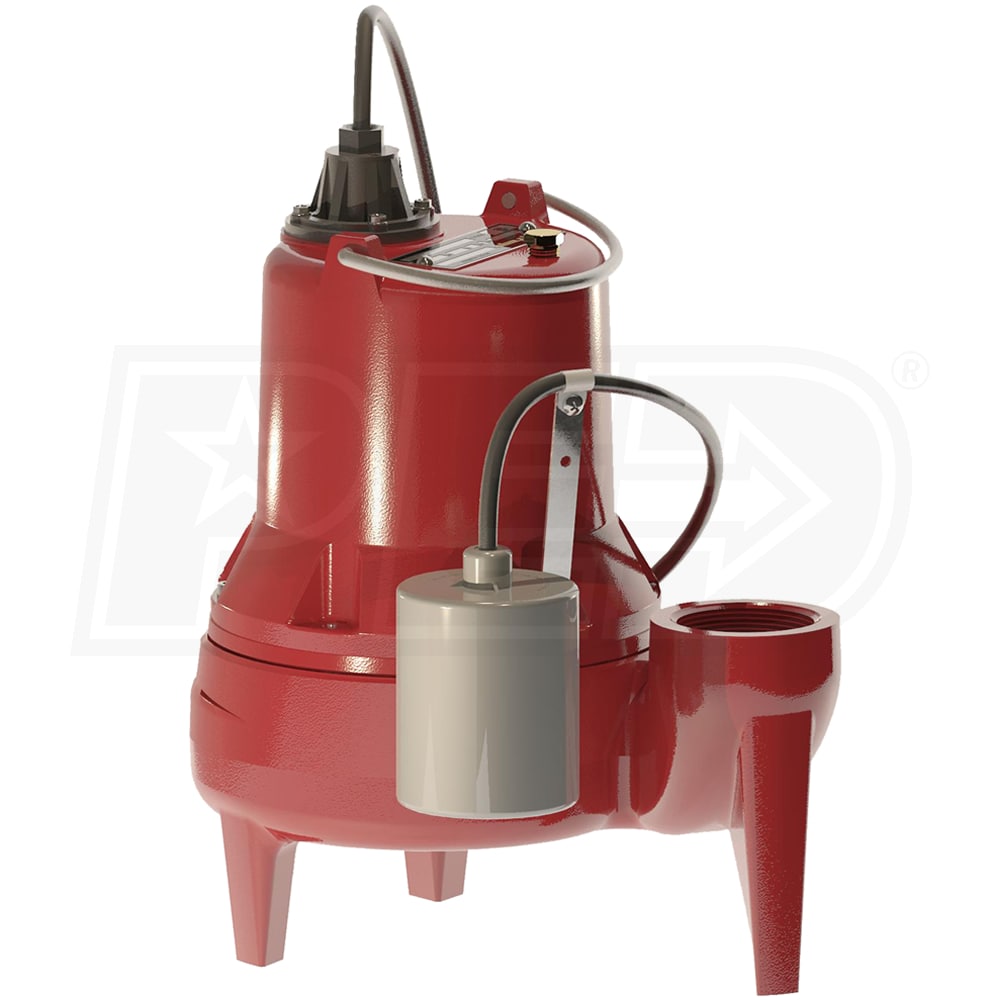

Liberty Pumps LE51A - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float

Model:

LE51A

Write A Review
$480.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Mar 20th
Shipping to60601

Liberty Pumps LE51A - 1/2 HP Cast Iron Sewage Pump (2
Liberty Pumps LE51A - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float
Model: LE51A
$480.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

9600 Gallons

Switch Type

Piggy-Back Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Automatic Submersible Cast Iron Sewage Pump
  • A workhorse for residential & light commercial sewage apps.
  • Heavy-Duty Epoxy Powder Coated Cast Iron Construction
  • Designed to provide years of reliable performance
  • Adjustable, Mercury-Free, Wide Angle Tether Float Switch
  • Provides automatic or manual operation via piggyback plug
  • Rugged & Thermally Protected 1/2 HP Motor
  • Hermetically sealed, permanently lubricated design
  • Engineered 2-Vane Semi-Open HYTREL Polymer Impeller
  • Corrosion-resistant design, passes spherical solids up to 2"
  • High Capacity 2" Discharge
  • Will replace most sewage pumps without any plumbing changes
  • Quick-Disconnect 10' Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
  • With permanently lubricated bearings for extended pump life
  • Non-Corrosive Stainless Steel & Brass Fasteners
  • Increases the lifespan of the pump even in the harshest systems
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

LE51A
specs product image PID-8639
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
22.5
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

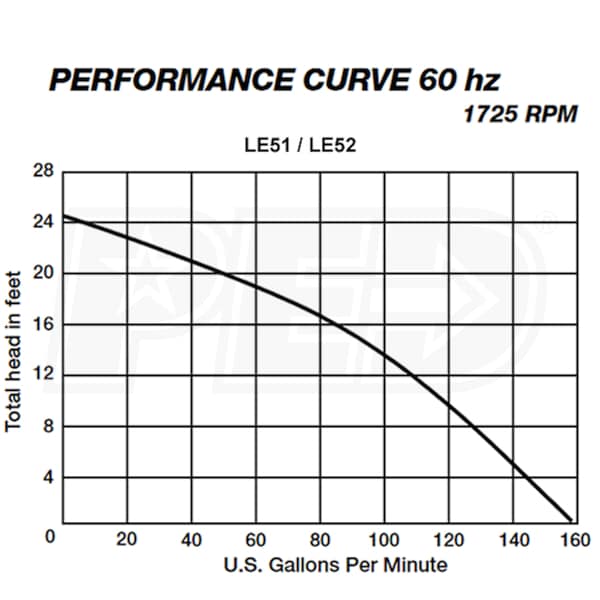

GPH @ 0 feet
9600
GPH @ 5 feet
8400
GPH @ 10 feet
6720
GPH @ 15 feet
5400
GPH @ 20 feet
3300
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
24 Feet
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
42 Pounds
Consumer Warranty
3 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
13.25 Inches
UPC
671812101577

Reviews

(58)
Liberty Pumps LE51A Reviews & Ratings

Product Q&A

(6)
Expert avatar photo
Product Questions Answered by Jim, the Sump Pump Expert
What type of oil is used in the pump motor?
Mike
from Minnesota
February 15, 2024
Will this pump work as a sewer ejection pump for a basement bathroom or do I need a 'grinder' pump?
Bryan W.
from Michigan
May 02, 2017
I have an engineer's drain field I use an affluent pump to pump my gray water to a drain field up hill about 15 ft at a distance of approximately 80 ft seem to be going thru a pump every 3 years tried them all from Zoeller to the box store brands same result 2-3 years what is the suggestion for my application
Steven Trammell
from Michigan
July 04, 2016
Hi Jim- I have a 1 1/2 inch discharge line - will this unit, with a 2" discharge port, work with that line? Thanks. Bob
Bob
from Texas
March 19, 2016
How many watts? Is this pump use regular plug? Same plug, just like model of Liberty Pumps 257(I have this model)? If this pump keeps pumping for 3-6 hours, will it be OK?
Chuck
from New York
July 15, 2014
Hi Jim - can this pump be used as a sump pump? Liberty Pumps LE51A - 1/2 HP Cast Iron Sewage Pump (2") w/ Piggyback Tether Float Also thinking of emergency use to dewater a flooded backyard. Thanks!
Brian
from New York
August 23, 2012
