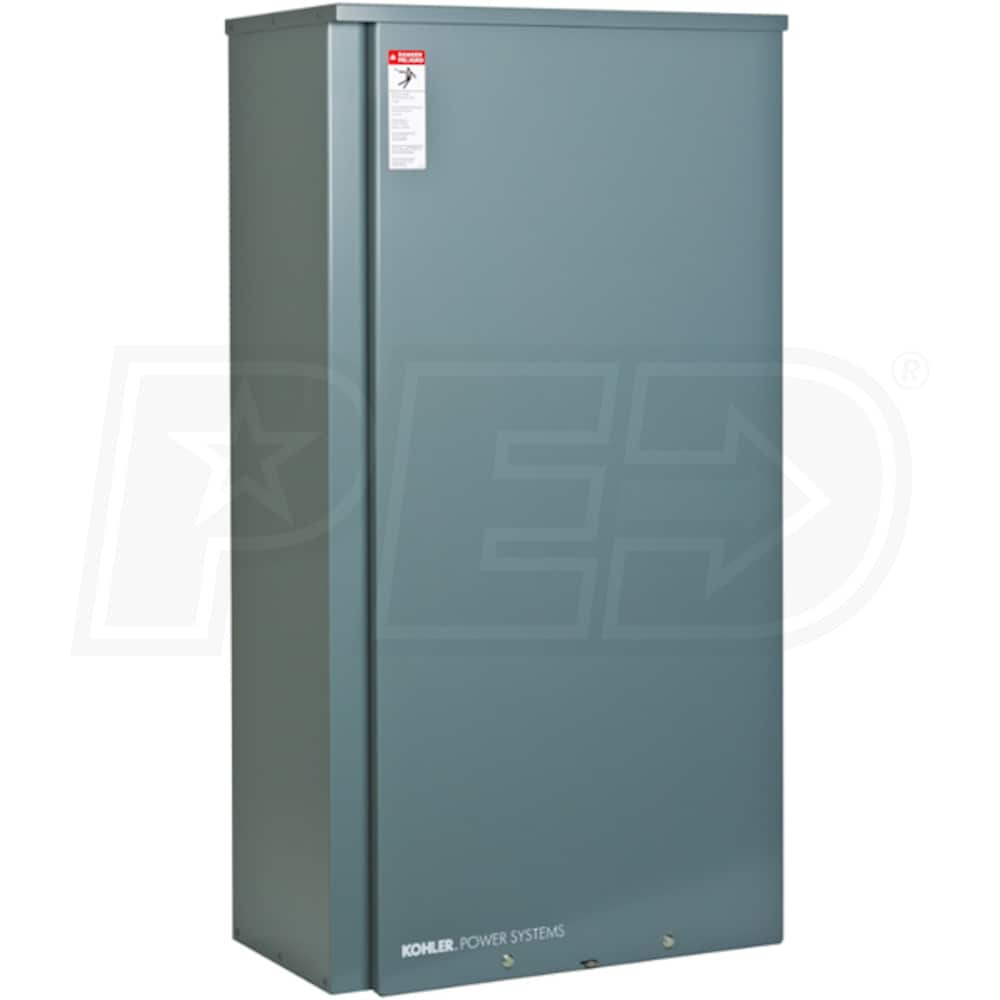

Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model:

RXT-JFNC-0100B-QS4

Write A Review
$590.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Friday, Mar 29th
Shipping to60601
synchrony card logo
$99 / Month
Suggested monthly payments with 6 month financing.
Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Kohler RXT Series 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RXT-JFNC-0100B-QS4
$590.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

100

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Kohler Model RXT 100-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Built-In 100-Amp 16-Circuit Load Center (Breakers Not Included)
  • Up to 8 tandem breakers can be used for a total of 24 circuits
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 100-Amps @ 240-Volts
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXT-JFNC-0100B-QS4
specs product image PID-8057
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
7.1 Inches
Product Width
13.2 Inches
Product Height
24.2 Inches
UPC
650531125446
Additional Model Numbers

RXT-JFNC-0100B, RXT-JFNC-0100B-QS4

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
