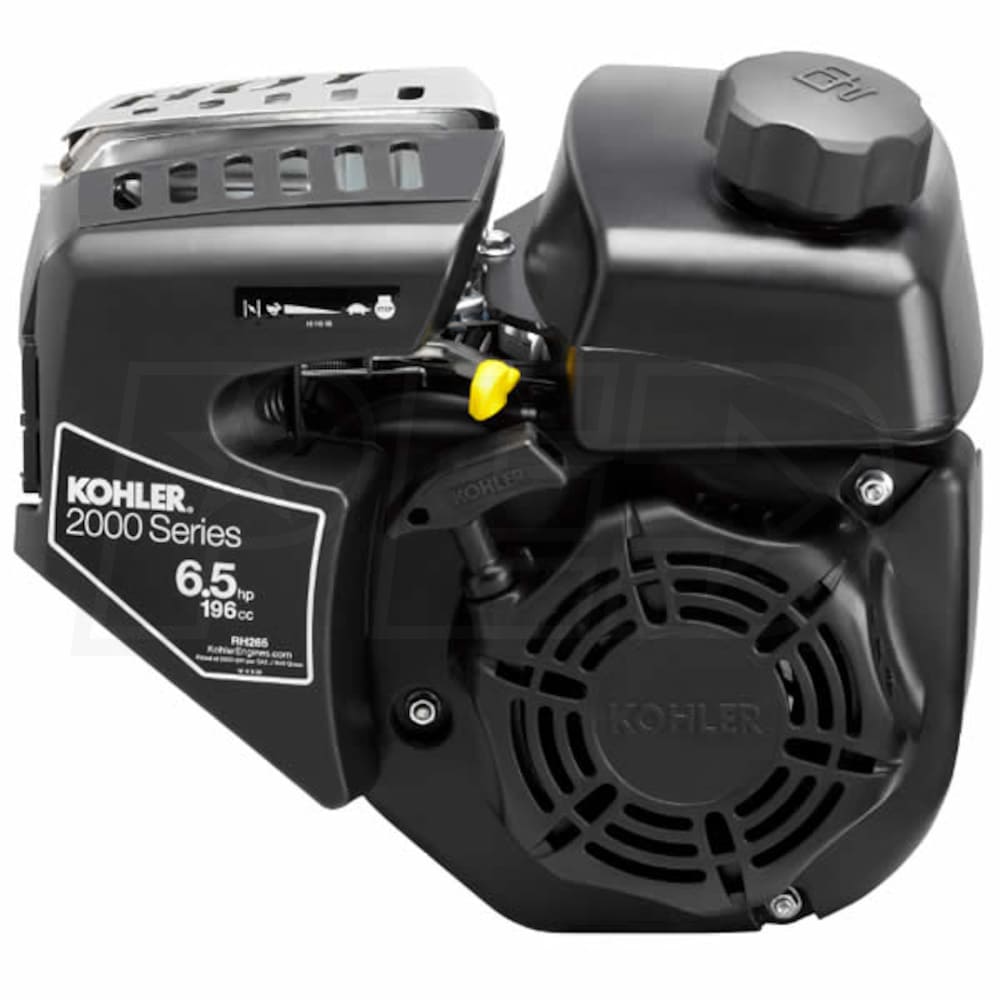

Kohler RH265 196cc 6.5 Gross HP OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24

Model:

PA-RH265-3103

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler RH265 196cc 6.5 Gross HP OHV Horizontal Engine, 3/4
Kohler RH265 196cc 6.5 Gross HP OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
Model: PA-RH265-3103
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# RH265-3103, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
  • For use on utility equipment like pressure washers, log splitters, chippers, vacs, etc...
  • Cool-Running OHV Design Means Your Engine Will Last
  • Keep your equipment longer and avoid costly trips to the repair shop
  • KOHLER RH265 Single Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 10.7 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2003
  • Easy-Pull Ergonomic Recoil Handle For Easy Starting
  • Electronic ignition system
  • Oversized Muffler For Reduced Noise
  • Sound-deadening alloy crankcase
  • Silenced air intake
  • All-In-One Throttle, Choke, Shutoff Contol Lever
  • No tools required air cleaner
  • Automatic Low-Oil Engine Shutdown System
  • Dual drains
  • Dipstick on fuel tank side
  • Extended Run Times
  • Corrosion-free plastic fuel tank
  • Basin shaped combustion chamber
  • Large Displacement
  • High-inertia flywheel
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-RH265-3103
specs product image PID-68900
Engine
Engine Series
RH Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
28.8 Lbs
CC
196 CCs
HP
6.5 HP
Max Torque
10.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.55 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.42 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.42"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
29 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
12.2 Inches
Product Width
12.8 Inches
Product Height
12.8 Inches
Dimensions
12.2 x 12.8 x 12.8
