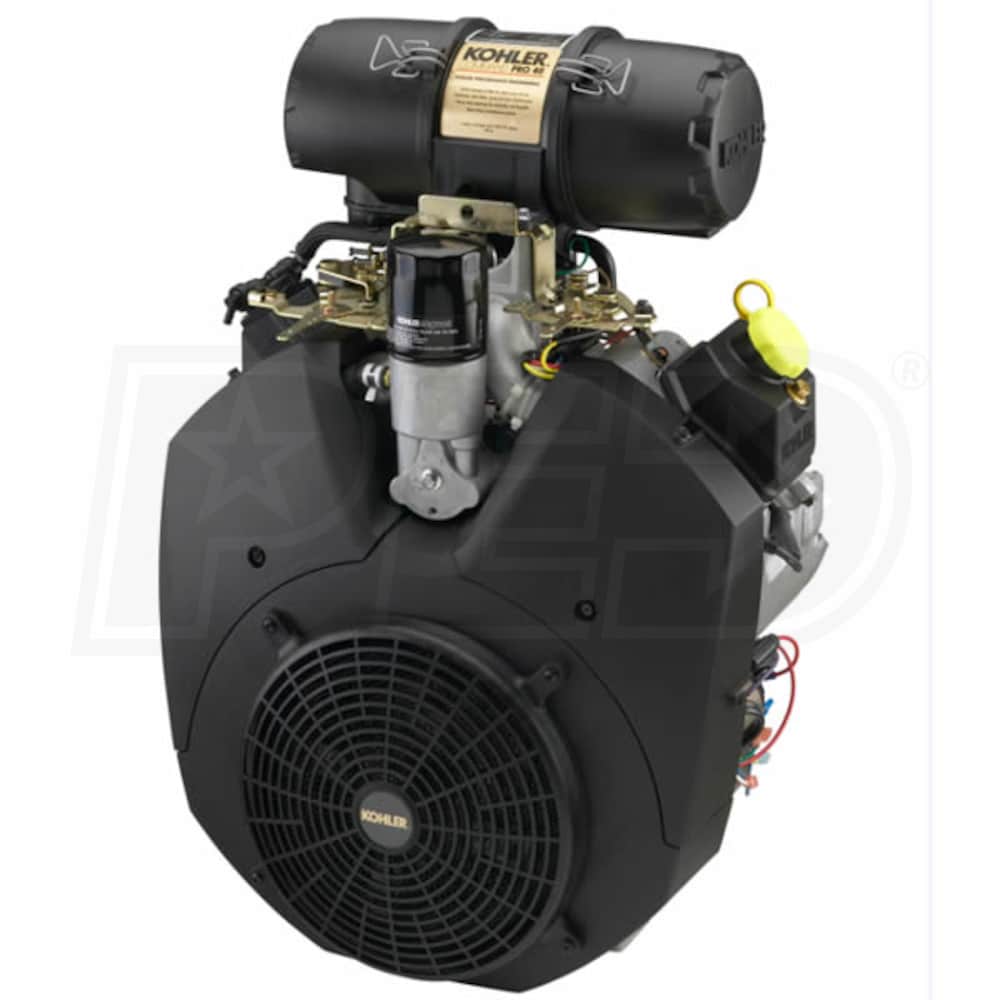

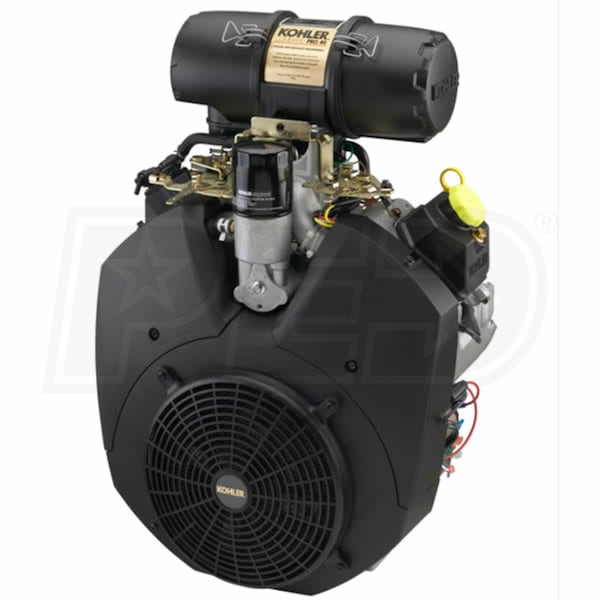

Kohler Command Pro CH1000 999cc 37 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft

Model:

PA-CH1000-3001

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Command Pro CH1000 999cc 37 Gross HP Electric Start Horizontal Engine, 1-1/8
Kohler Command Pro CH1000 999cc 37 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft
Model: PA-CH1000-3001
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CH1000-3001, 1-1/8" x 4" Crankshaft
  • Utility / General applications like mowers, compressors & grain augers
  • KOHLER Command PRO CH1000 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 55.3 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2004
  • Top Mounted, Quick Change Oil Filter
  • Easy to reach- access to entire cylinder for thorough cleaning
  • Less mess- most of oil is drained before removal
  • Only one tool needed to remove cylinder cover
  • Overhead Valve Technology
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Provides greater volumetric efficiency and higher compression ratio
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • KOHLER Command PRO
  • Generates a stronger spark at low cranking speed
  • High-Efficiency Fan and Screen
  • Modulated cooling fan keeps engine cooler
  • Integrated Oil Cooler
  • Spin on, full-flow oil filter keeps debris and particles out of engine
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • 12V Electric Starter & 25A Regulated Charging System
  • Mechanical Fuel Pump- Gas Tank Not Included
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-CH1000-3001
specs product image PID-70592
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
132 Lbs
CC
999 CCs
HP
37 HP
Max Torque
55.3 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Compression Ratio
8.8:1
Stroke
3.1 Inches
CARB
Yes
Systems
Charging System
25 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
67.2 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6-1/8 Inches
Overview
Weight
132 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
15.3 Inches
Product Width
19 Inches
Product Height
27.5 Inches
Dimensions
15.3 x 19.0 x 27.5
UPC
PA-CH1000-3001
