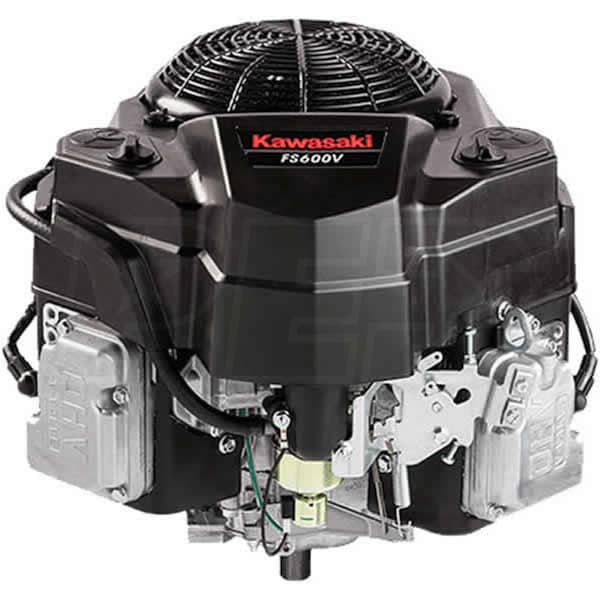

Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Chrg Coil, 1-1/8" x 108.8mm Crankshaft

Model:

FS600V-S04S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Chrg Coil, 1-1/8
Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Chrg Coil, 1-1/8" x 108.8mm Crankshaft
Model: FS600V-S04S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • FS600V-DS04S - 1-1/8" x 108.8mm Crankshaft, 12V Start, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1-1/8" x 108.8mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS600V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 18.5 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Electronic Spark Ignition & 12V Electric Starter (Cables Not Included)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FS600V-S04S
specs product image PID-67529
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
18.5 HP
Max Torque
32.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Stroke
2.8 Inches
Compression Ratio
8.1:1
Systems
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 108.8mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
108.8mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers

FS600V-DS04S, FS600V-S04S
