Honeywell RTSZ100G3 - ™ Commercial 100-Amp Automatic Transfer Switch (120/208V) for sale.

Power Equipment Direct Offers Direct Discounts and a Tax-Free Guarantee on Honeywell RTSZ100G3.

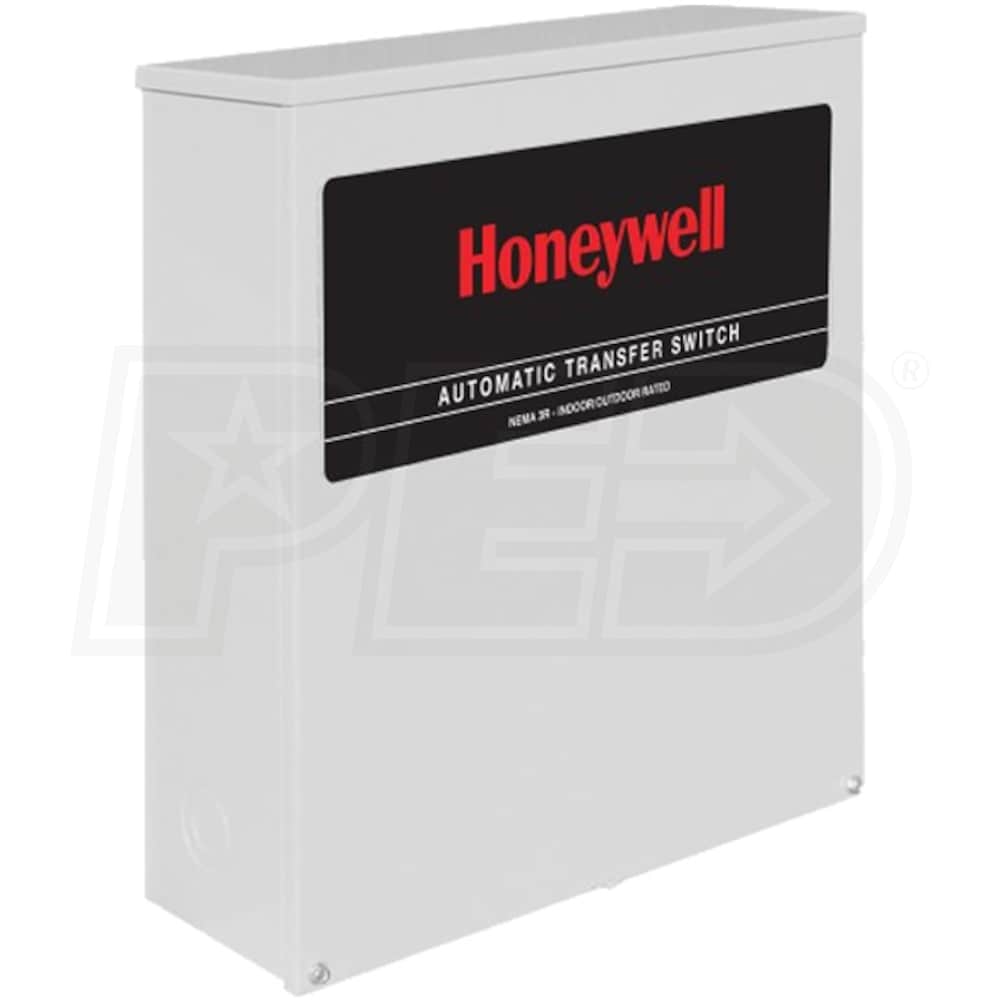

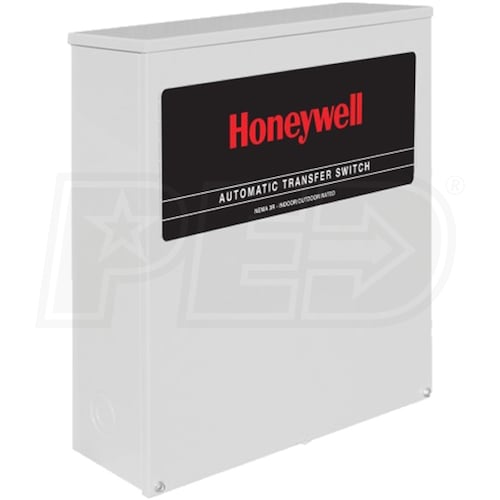

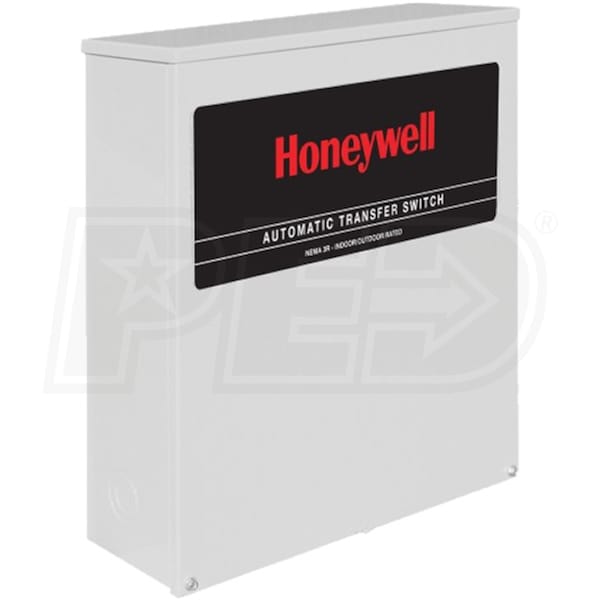

Honeywell™ Commercial 100-Amp Automatic Transfer Switch (120/208V)

Close
Honeywell Power Equipment and AccessoriesModel: RTSZ100G3
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 4 - 6 Weeks

Factory items ship direct from the manufacturer. Shipping times vary.
$759.00
Have installers contact me for a quote.
+$0.00 local installers help?

StoreShippingPriceShop

$759.00
No Sales Tax*
(Except IL)
Buy

$759.00
No Sales Tax*
(Except IL)
Visit Site

$759.00
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Type
Standard
Amp Rating
100 @ 208 Volts (Three Phase)
Load Mgmt.
Not Compatible
Enclosure
NEMA 3R
100-Amp Automatic Transfer Switch (120/208V 3-Phase)
For 120/208V 3-Phase Honeywell™ Commercial Generators

Aluminum, NEMA Type 3R Enclosure
Weather-resistant design for indoor & outdoor installation
Electrostatically applied and baked powder coating paint (Gray)

Designed For Standard Installation*
May require a sub-panel for overload protection

Work's With Honeywell's Sync 1.0™ Generator Controller
Generator's controller handles all the timing, sensing & exercising

Electrically Operated, Mechanically-Held Contacts
For fast, positive connections that you can depend on

Tech Spec Summary: (See Spec Sheet For More Info)
Rated 100-Amps @ 208V
Transition Type: Open
Withstand Rating: 10,000 Amps --- Lug Range: 2/0 - #14

2-Year Limited Warranty
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
24000 Watts
Rated Amps
100 @ 208 Volts (Three Phase) Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
Maximum Wattage
24000 Watts
UL Listed
Yes
Overview
Made in USA
Yes
Weight
20 Pounds
Product Length
24.1 Inches
Product Width
20.2 Inches
Product Height
7.1 Inches
Consumer Warranty
2 Years
UPC
696471612912
Model
RTSZ100G3
Download Documents
