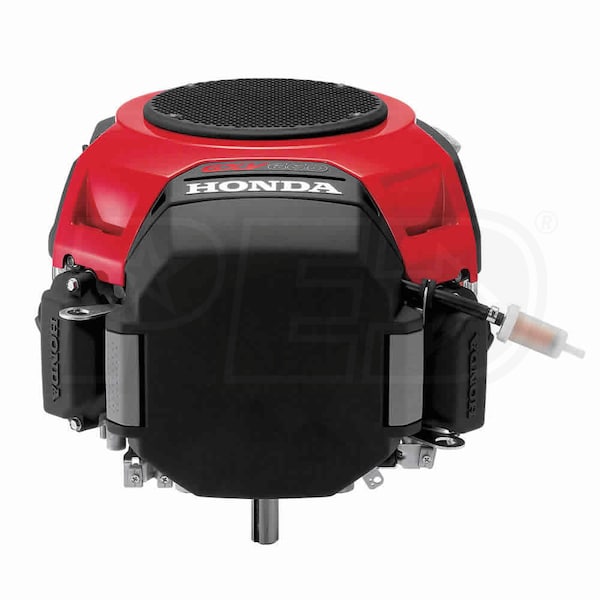

Honda GXV660™ 688cc V-Twin OHV Electric Start Vertical Engine, 17A Charging, Oil Pres Switch, 1-1/8" x 3.8" Crankshaft

Model:

GXV660RTAF

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GXV660™ 688cc V-Twin OHV Electric Start Vertical Engine, 17A Charging, Oil Pres Switch, 1-1/8
Honda GXV660™ 688cc V-Twin OHV Electric Start Vertical Engine, 17A Charging, Oil Pres Switch, 1-1/8" x 3.8" Crankshaft
Model: GXV660RTAF
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GXV660RTAF - 17A Charging, 1-1/8" x 3.8" Crankshaft
  • 3-Year Consumer & 3-Year Commercial Warranty
  • Ideal for vertical shaft commerical turf equipment, lawn tractor, riding mower
  • Honda GXV660 Commercial V-Twin Air-Cooled 4-Cycle Gas Engine
  • Produces 35.6 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • V-Twin Technology w/ Hemispherical Combustion Chamber
  • High-compression ratio engineering for maximum power
  • Extremely efficient high power output, without having to use Premium Fuel
  • Honda's Variable Timing Digital CDI Ignition
  • RPM based design, with built-in rev-limiter, optimizes ignition timing
  • Easier starting, more power, less fuel use and reduced emissions
  • High-Capacity Oil Pump w/ Spin-On Oil Filter - **Oil-Pressure Switch Included**
  • Provides full pressure lubrication to the flywheel, PTO & connecting-rod bearings
  • Dual Panel Type Air Filter
  • Traps dirt and harmful particles from entering your engine
  • Two Barrel Butterfly-Valve Inner-Vent Carburetor & Built-In Fuel Pump
  • Optimizes air/fuel ratio for proven fuel efficiency
  • Large Diameter Air Intake & High Capacity 36-Blade Cooling Fan
  • Increase the cooling performance while reducing noise
  • Forged Steel Crankshaft & Aluminum Pushrods w/ Steel Tips
  • Integrated Cylinder/head for less weight, lower vibration, & quieter operation
  • 12V (Shift Type) Electric Starter (Cables Not Included)
  • Automatic mechanical decompression system improves starting performance
  • Also Includes 17-Amp Charging System
  • Note - GX V-Twin Series Engines - Fuel Tank & Muffler Not Included
  • EPA & CARB Compliant - No Catalyst Required
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GXV660RTAF
specs product image PID-66413
Engine
Engine Series
Honda V-Twin Commerical
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
98.3 Lbs
CC
688 CCs
HP
21.5 HP
Net Torque
35.6 Lbs
Cylinder Bore Type
Aluminum
Bore
3.1 Inches
Stroke
2.8 Inches
Compression Ratio
9.3:1
Systems
Starting System
12-Volt Key Start
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
74 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3.80 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3.80"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
101 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
17.4" Inches
Product Width
16.6" Inches
Product Height
17.6" Inches
