Honda Engines GX240UT2QA2 - Honda GX240™ 270cc OHV Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Honda Engines GX240UT2QA2.

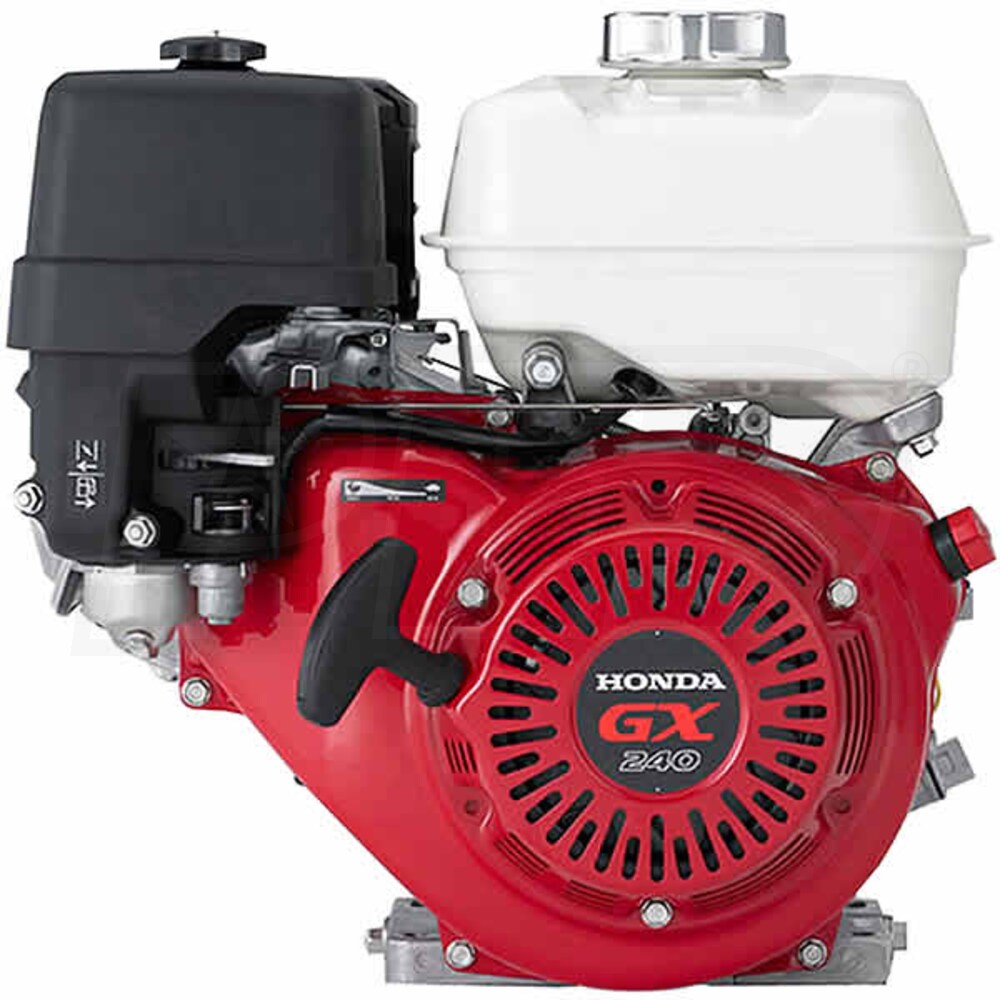

Honda GX240™ 270cc OHV Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft

Close
Honda Engines Power Equipment and AccessoriesModel: GX240UT2QA2
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 4-7 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$593.99

StoreShippingPriceShop

Free Shipping$593.99
No Sales Tax*
(Except IL)
Buy

$593.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 1
    Q&A
  • Reviews
  • Articles
  • Shipping

Model# GX240UT2QA2 - Oil Alert System, 1" x 3-31/64; Crankshaft

3-Year Consumer & 3-Year Commercial Warranty
Great for chippers, shredders, pressure washers and air compressors

Honda GX240™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
Produces 13.5 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque

Overhead Valve (OHV) Technology
Maximizes fuel efficiency while reducing noise and emissions

Variable Timing Digital CDI Ignition
RPM based design, with built-in rev-limiter, optimizes ignition timing
Easier starting, more power, less fuel use and reduced emissions

Ball Bearing Supported Precision Camshaft Design
Optimized valve timing / overlap for smooth & fuel efficient power

Oil Alertฎ Warning System
Crankcase mounted sensor helps prevent a low oil condition
Provides a visual warning & stops the engine automatically

Splash Lubrication System
Combined with a cast iron cylinder sleeve for increased wear resistance & long life

Butterfly-Type Carburetor & Fuel Shut-Off Valve
Allows for more reliable starting, safety and longevity
Advanced chamber coating & filter helps reduce gum and varnish

Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
Requires less pulling force, for easier and quicker starting

Quieter Operation
Re-designed camshaft & muffler reduce overall engine noise by up to 5 dB

Maintenance-Friendly
Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location

Includes 1.4-Gallon Metal Fuel Tank w/ Sediment-Screen

50-State Engine, EPA & CARB Compliant


Engine
Engine Series
Honda GX
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
66 Lbs
CC
270 CCs
HP
7.9 HP
Net Torque
13.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.00 Inches
Stroke
2.30 Inches
Compression Ratio
8.5
Systems
Starting System
Recoil Only
Ignition System
Digital CDI w/ Variable Timing
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
38 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1.4 Gallons
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3-31/64 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3-31/64"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
5-1/4 Inches
Overview
Made in USA
No
Product Length
15 Inches
Product Width
16.9 Inches
Product Height
16.6 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Model
GX240UT2QA2
Download Documents
No documents available at this time
Need Help? Ask Our Power Equipment Experts.
Read Reviews
How-To Library

*Ask Robert about the Honda GX240™ 270cc OHV Horizontal Engine, Oil Alert System, 1" x 3-31/64" Crankshaft. Sorry, no repair questions:


Name:


State:


*Email:

*Required Field

Submit
  1 Question
Q: I need a replacement for my existing engine. Can you confirm if this is a like for like replacement of:
GX240
QA2X
GC04-3648633
What's the difference between 2QA2 and QA2X?
I need to mount this and be sure the shaft height, length, etc. are in the correct geometry as the existing engine.

by Lucas P. from Indiana on September 05, 2016

A: The 2QA2 would be your direct replacement. I believe you are confusing the "X" with an asterisk (*). Honda uses these as place holders and they have no meaning what so ever in that they are exactly what they are supposed to be, a place holder. The "2" in front of the QA2 is just an internal update made by Honda, so the GX240UT2QA2 would be your direct replacement. It should be a one for one swap.
by Robert, Product Expert
