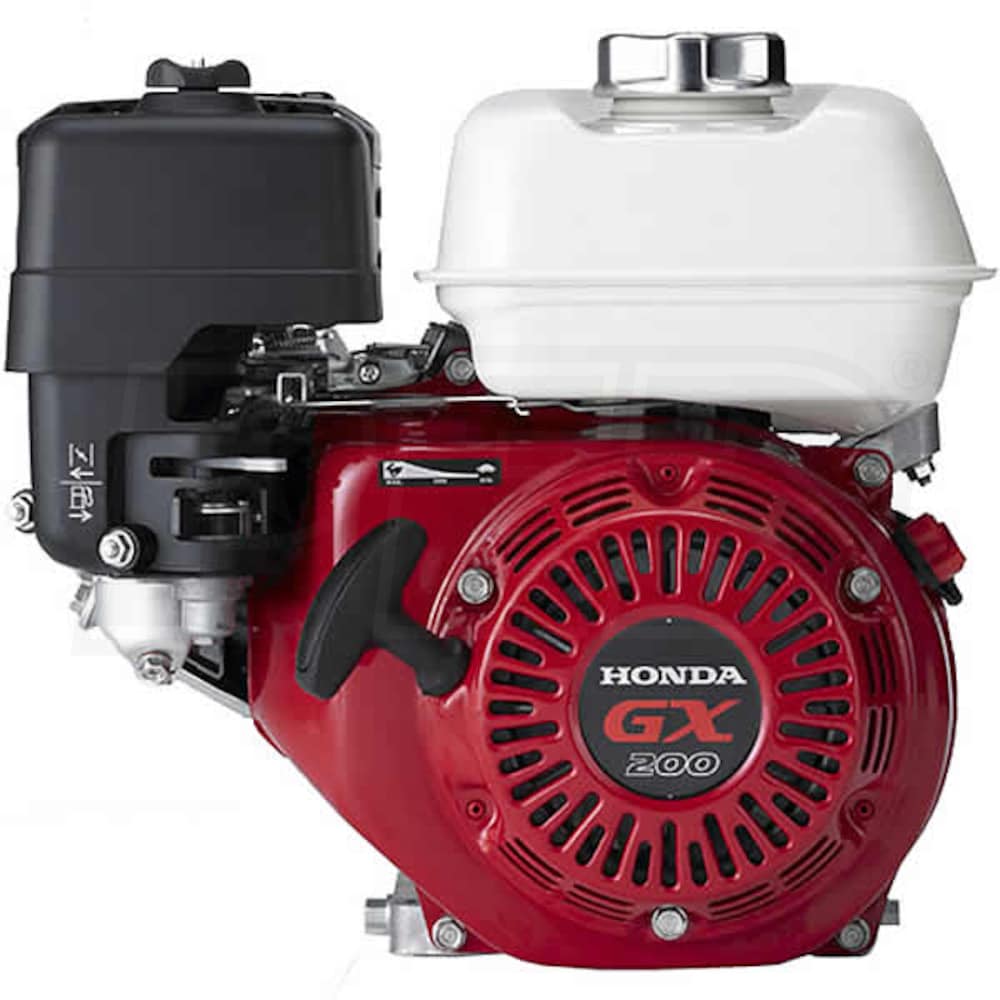

Honda GX200™ 196cc OHV Horizontal Engine, Oil Alert System 3/4" x 2-7/16" Crankshaft

Model:

GX200UT2QX2

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Honda GX200™ 196cc OHV Horizontal Engine, Oil Alert System 3/4
Honda GX200™ 196cc OHV Horizontal Engine, Oil Alert System 3/4" x 2-7/16" Crankshaft
Model: GX200UT2QX2
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Model# GX200UT2QX2 - Oil Alert® System, 3/4 x 2-7/16" Crankshaft
  • Great for log splitters, air compressors & pressure washers
  • Honda GX200™ Series Single Cylinder Air-Cooled 4-Cycle Gas Engine
  • Produces 9.10 ft-lbs of torque @ 2500 RPM - Power levels are stated Net torque
  • Overhead Valve (OHV) Technology
  • Maximizes fuel efficiency while reducing noise and emissions
  • Ball Bearing Supported Precision Camshaft Design
  • Optimized valve timing / overlap for smooth & fuel efficient power
  • Oil Alert® Warning System
  • Crankcase mounted sensor helps prevent a low oil condition
  • Provides a visual warning & stops the engine automatically
  • Splash Lubrication System
  • Combined with a cast iron cylinder sleeve for increased wear resistance & long life
  • Butterfly-Type Carburetor & Fuel Shut-Off Valve
  • Allows for more reliable starting, safety and longevity
  • Advanced chamber coating & filter helps reduce gum and varnish
  • Heavy-Duty Recoil Starter w/ Automatic Mechanical De-Compression System
  • Requires less pulling force, for easier and quicker starting
  • Quieter Operation
  • Lightweight noise-reducing materials plus intake/exhaust improvements
  • Maintenance-Friendly
  • Quicker oil changes with dual oil drains/fill and operator-friendly spark plug location
  • Includes .825-Gallon Metal Fuel Tank w/ Sediment-Screen
  • EPA & CARB Compliant
  • 3-Year Consumer & 3-Year Commercial Warranty
California residents see
Warning: This product can expose you to chemicals including Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

GX200UT2QX2
specs product image PID-66360
Engine
Engine Series
Honda GX
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
35 Lbs
CC
196 CCs
HP
5.5 HP
Net Torque
9.1 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
Systems
Starting System
Recoil Only
Ignition System
Transistorized Magneto
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Butterfly
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
.825 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
41 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.6" Inches
Product Width
14.8" Inches
Product Height
13.6" Inches
UPC
694157462660
