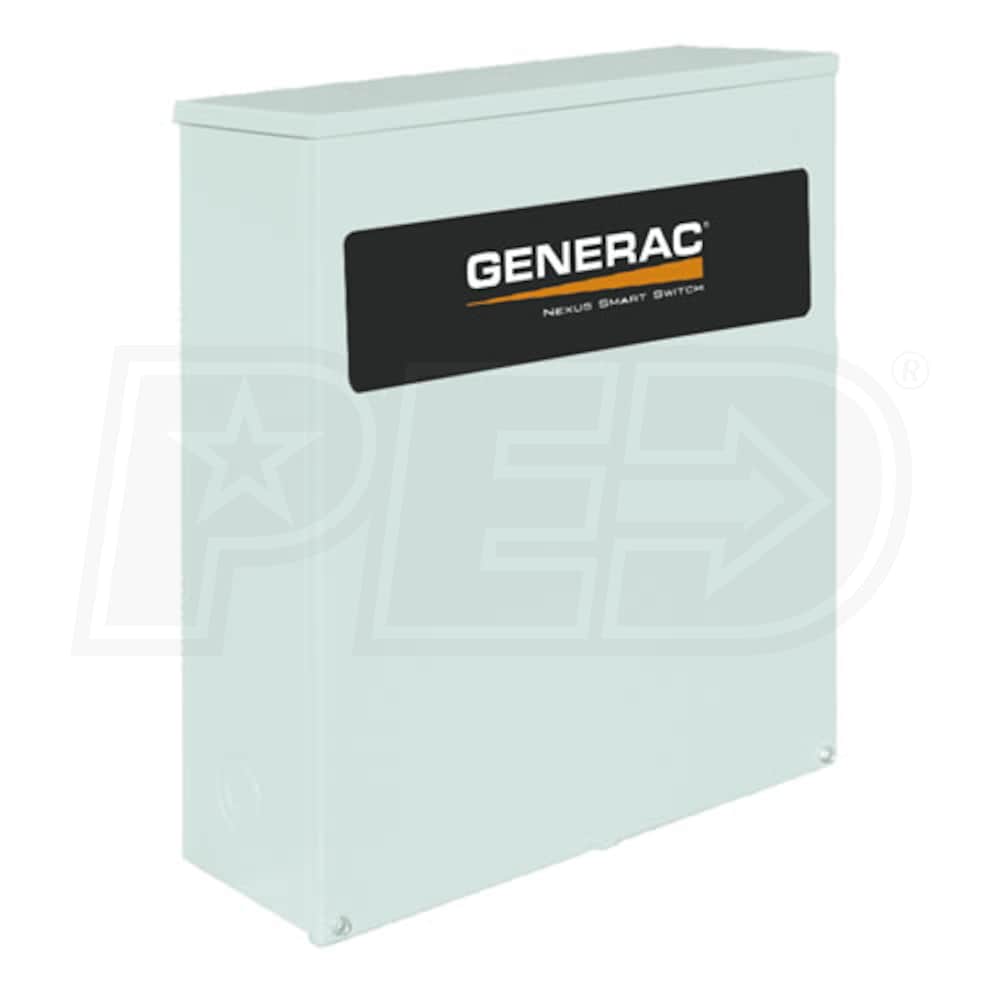

Generac Guardian RTSX100A3 - Generac Nexus Smart Switch™ - 100-Amp Automatic Transfer Switch + AC Shedding for sale.

Power Equipment Direct Offers Direct Discounts and a Tax-Free Guarantee on Generac Guardian RTSX100A3.



Generac Nexus Smart Switch™ - 100-Amp Automatic Transfer Switch + AC Shedding

(Based on expert analysis, manufacturer ratings and customer reviews)
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
  • Features
  • Specs
  • 4
    Q&A
  • 4
    Reviews
  • Articles
  • Accessories

Need Help? Call Our Power Equipment Experts.
Nexus™ Automatic Transfer Switch

Compatible With Generac Nexus™ or Generac R200 Controllers
Leverages Digital Load Management (DLM) technology
Ability to manage 2 A/C units with no additional hardware
Intelligently manage 4 more loads w/ additional DLM modules
DLM Module P/N: 5937 (Sold Separately)

NEMA 3R Indoor/Outdoor Rated
Aluminum, wall mountable weather-proof enclosure
Electrostatically applied and baked powder paint (Gray)

Tech Spec Summary:
Load transition type: Open Transition
Withstand rating: 10,000 Amps
Lug range: 2/0 - #14

Standard Installation
Also requires a sub-panel for overload protection

For Use With Generac Generators Only


Model
  Model Number:RTSX100A3
 UPC:696471607482
 Manufacturer Name:Generac Guardian
 Made in USA:Yes
 Maximum Wattage:24,000 Watts
 Voltage:120/240 Single-Phase
 Frequency:60 Hertz
 Rated Amps:100 Amps
 ATS Service Disconnect:No
 ATS Poles:2 Poles
 ATS Load Shedding:Sold Separately
 ATS Load Prioritizing:Sold Separately
 Max Generator Input:100 Amps
 Max Utility Input:100 Amps
 Conduit Length:0
 Enclosure:NEMA 3R
 UL Listed:Yes
Overview
 Weight:20 Lbs. (9.07 kilograms)
 Dimensions:20"L x 15"W x 8"H
(50.80 x 38.10 x 20.32 cm)
 Warranty:1 Year
Download Documents


Need Help? Call Our Power Equipment Experts.
View Accessories For This Product.
Read Reviews
How-To Library
  4 Questions
Q: I have an 8kw generac guardian 5870 w/transfer switch. Customer wants to add a well pump onto the system. The well pump has its own electric service. I know I have to install another transfer switch but how do I interconnect the two switches? Thanks John, Hardacre Electric
by John from Massachusetts on May 06, 2011

A: Hi John,
Two switches are needed and the one for the well pump can be configured as a "Slave". Only generator power output leads run to switch #2 along with 2 control wires. The generator and Switch #1 on the home are fully wired for 240v back to the generator for utility sensing.

by Mike, Product Expert

Q: I am considering a 22kw qt022 for a whole house application. I have two 100 amp service lines in seperate disconnect panels , one on each side of the meter box. Will I need to purchase 2 100 amp transfer switches. The distribution panels are located inside the garage 40 ft away.
by Mike Greenway from Arkansas on May 02, 2011

A: Mike,
The shortest answer I can provide is Yes, two switches. One on each load center, with only one of the switches being the "Master", the other being the "Slave". Only the one switch is tied via control wires to the generator. The other is a dummy switch that simply transfers power when utility is down, and the generator is producing power.

Work with your electrician to layout the system as it is not common, but can be done. Please call us with questions.

Thanks
by Mike, Product Expert

Q: What is the difference between the Generac Nexus Smart Switch (100 Amp) automatic transfer switch for $349 and the Generac Nexus Smart Switch (100 Amp) automatic transfer switch (Service Entrance) for $499?

Thank you for your time and consideration.

by Cecil Camune from Illinois on January 29, 2011

A: The "Service Entrance" type automatic transfer switch has a built in shut off switch to power can be turned off to perform service on the generator without backlash from utility power. This type of switch is normally required by code to be installed if used in a whole house application and mounted between the meter and electrical panel being powered.

The "Standard" type automatic transfer switch does not include this service entrance feature and is normally installed when the generator is powering a sub-panel.
by Mike, Product Expert

Q: I would like to know what I need for automatic transfer switch for a 9300W surge generator, with a running wattage of 7500 watts. I would like it to be fully automatic if I could.
by Clifton Sanborn from Connecticut on January 27, 2011

A: Automatic transfer switches (ATS) will only auto-start a generator unattended if the generator itself is equipped with electrical controls that allow it to be auto-started. For example, buying an ATS for use with a portable generator, even if it is an electric start model, will not work. The portable generator does not have a remote start/stop engine controller to interface with the ATS. Manual transfer switches (MTS) are the best and only option when you have a portable generator. They provide a safe disconnect means to power select circuits in the home and prevent dangerous back-feeding. They are manual, however, and require the user to physically start their generator and transfer power through the MTS panel as needed. We offer several of them from the best manufacturers in the industry, Reliance Controls and Gen-Tran.


by Mike, Product Expert

Generac Guardian RTSX100A3 Reviews & Ratings
Write Review
4 Reviews  Sort by

James
Terre Haute, IN
Purchased from Power Equipment Direct
Purchased 3/18/11
Total Reviews
2 Reviews
REVIEWED
APR.
16
2011
4 out of 54 out of 54 out of 54 out of 54 out of 5
Generac 5884 And Rtsx100a3 Installation
I live in a remote location, and power outages are frequent, and sometimes extended, as was the outage from the ice storm this February. I've owned a portable generator for the last 15 years, and it has performed well, although it is very limited, with a 6 KW capacity. I opted to go with a Generac 5884, 14 KW propane generator this year. This was a self-install, do-it-yourselfer project. Not to difficult for me as I'm an electrical engineer by profession.
So...........From the perspective... more
View Image
Was this review helpful?
00
John
Purchased from Power Equipment Direct
Purchased 11/29/12
REVIEWED
JAN.
11
2013
5 out of 55 out of 55 out of 55 out of 55 out of 5
Remote Transfer Switch For Well Pump
The well pump is 200 feet down a mountan side from the house and the Generator with a separate utility feed.
The switch was received a few days after the order was placed.
It was easy to install and it works perfectly.
Was this review helpful?
00
Chuck
Matawan, NJ
Purchased from Power Equipment Direct
Purchased 12/25/11
Total Reviews
3 Reviews
REVIEWED
JAN.
15
2012
5 out of 55 out of 55 out of 55 out of 55 out of 5
Old Generac 15kw Generator
I had an older Generac generator that was placed on the property but never installed. The RTSX100A3 Transfer switch was very easy to install and worked perfectly. I was so happy with Electric Generators Direct that I just purchased two Generac 5875 20kw generators.
Was this review helpful?
00
David Smith
Sealy, TX
Purchased from Power Equipment Direct
Purchased 1/14/11
REVIEWED
FEB.
10
2011
5 out of 55 out of 55 out of 55 out of 55 out of 5
Good To Have Peace Of Mind
I have an older Dayton generator which was made by Generac for Grainger. My transfer switch burned out and the model is no longer available. I called Generators Direct and told the rep my story. He got a Generac tech on the line and we determined which switch would work for me.

I placed my order ( at a good savings in cost ) and received it quickly. We made the installation and I now have my backup electric supply up and running just like before. In the previous ten years I used this... more
Was this review helpful?
00
