The Generac synergy™ 20kw variable speed standby generator (200a ats + power mgmt.) has been discontinued and is not available for purchase at this time.

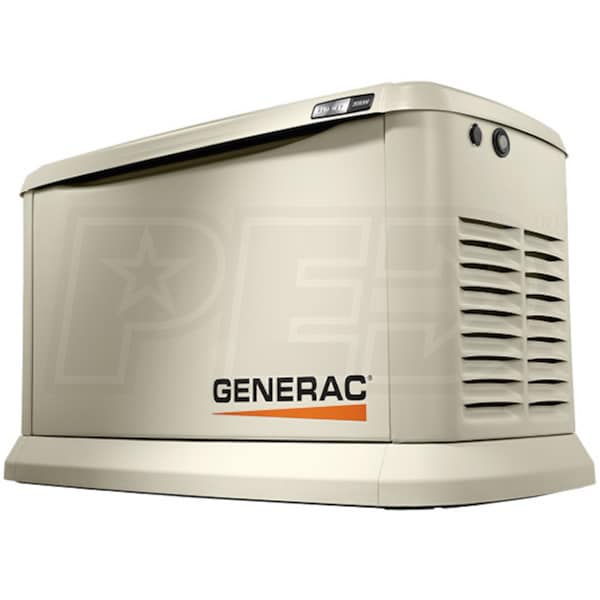

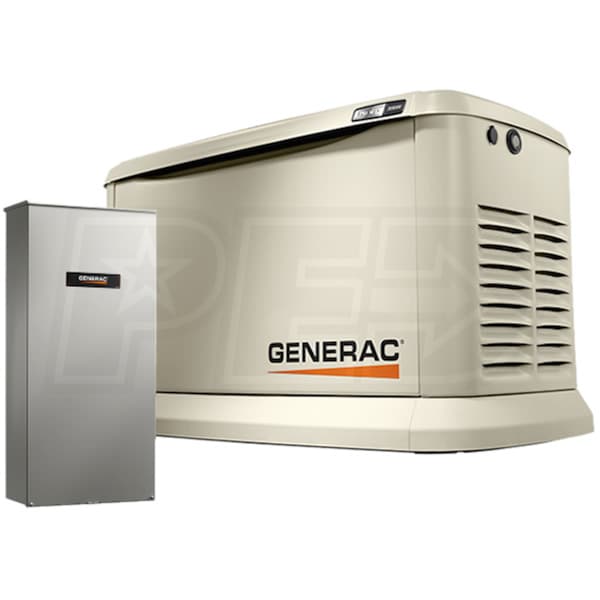

Generac Synergy™ 20kW Variable Speed Standby Generator (200A ATS + Power Mgmt.)

Close
Generac Power Equipment and AccessoriesModel: 7041
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
StoreShippingPriceShop

Discontinued

$5,599.00
(as of 10:52 CST - Details)
Sales Tax in 26 states
Visit Site
StoreShippingPriceShop

Discontinued

$5,599.00
(as of 10:52 CST - Details)
Sales Tax in 26 states
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Accessories
Grade
Airooled Standby Generators
Style
Watts
20 kW
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
20kW (LPG) / 18kW (NG) Generac Synergy™ Variable Speed Standby Generator System
Quiet, tests at only 57 dB(A) & runs at 63 dB(A) @ 23 feet

5-Year Limited Warranty
Plus 24/7•365 Customer Support so you have you questions answers when its convient for you

G-Flex™ Variable Speed Technology (2700-3600 RPM)
Varies engine RPMs based on demand; unlike traditional standbys

Automatic Voltage Regulator (AVR) - Less Than 1.5% THD
Monitors demand & adjusts engine speed; Save $ & use less fuel
Ensures 60 Hz output, even at lower speeds for very clean power

200-Amp Generac Synergy™ Smart Switch w/ Power Mgmt.
DPM technology allows for the smart control of 2 air conditioners
Intelligently manage 4 more loads w/ add. PMM Kit/Mods. (Sold Separately)

Non-Service Entrance Rated w/ NEMA 3R Aluminum Enclosure
Designed For standard installation; Requires a sub-panel for overload protection

Evolution™ Digital Controller
Multilingual, 2-Line LCD display for simple, straighforward operation
Programmable-exerciser lets you set how often & what time generator will self-test

Tough, Durable All-Aluminum Sound Attenuated Enclosure
RhinoCoat™ powder-coated finish keeps enslosure protected from the elements

Compatible With Mobile Link™ Remote Monitoring (Sold Separately)
Easily montior generator status anywhere with a smartphone, tablet, or PC

Generac OHVI Air-Cooled Engine
Full pressure lubrication system w/ 2 year oil change interval
Optimized muffler and resonator for dramatically quiter operation

Installation Flexibility*
Can be installed within 18" of a building; *Always check local bulding codes

Generac Standby Generators & Engines - Built In The USA*
Built in the USA using domestic & foreign parts

Additonal Features:
12" Flexible fuel line and Direct-To-Dirt composite mounting pad
Built-in Battery Charger (Battery Sold Separately)
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
200 (BTU: 200,000 BTU/HR) ft³/hr
NG Fuel Consumption @ 100% Load
282 (BTU: 282,000 BTU/HR) ft³/hr
LP Fuel Consumption @ 50% Load
1.84 (BTU: 166,980 BTU/HR) gallons/hr
LP Fuel Consumption @ 100% Load
3.5 (BTU: 317,625 BTU/HR) gallons/hr
Rated Amps
83.1 @ 240 Volts (Single Phase) Amps
Decibel Rating @ 7m
63 Run dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included (540 CCA)
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Sold Separately
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Overview
Made in USA
Yes
Weight
471 Pounds
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Consumer Warranty
5 Years
Commercial Warranty
5 Years
UPC
696471070415
Model
7041
