Generac 6864 - XD5000E- 5000 Watt Electric Start Portable Diesel Generator for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Generac 6864.

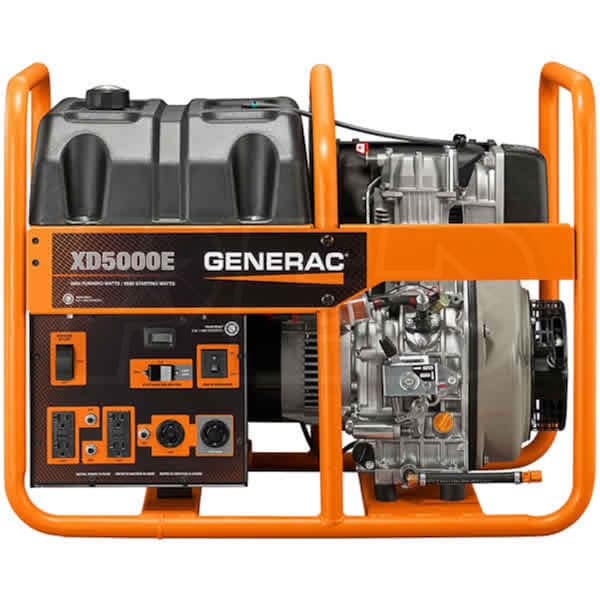

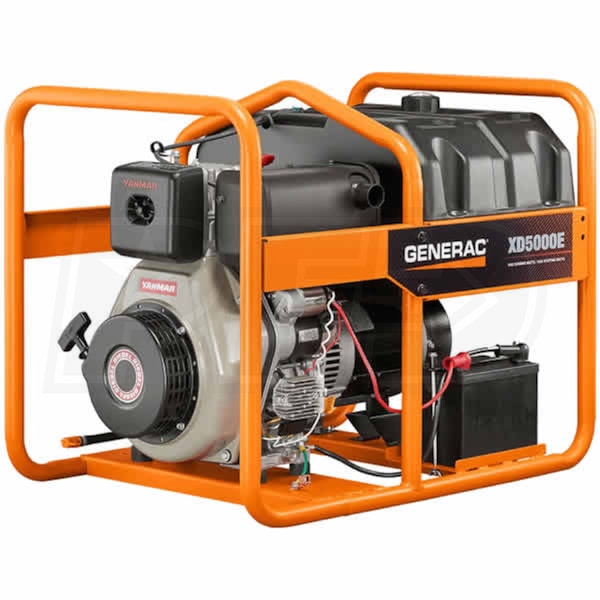

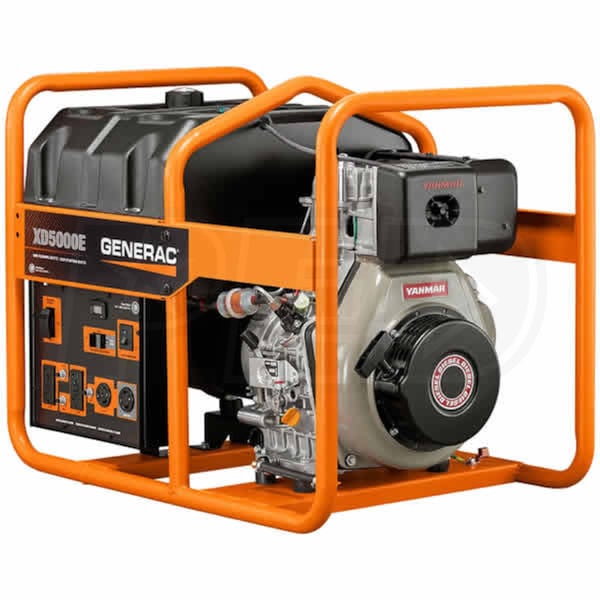

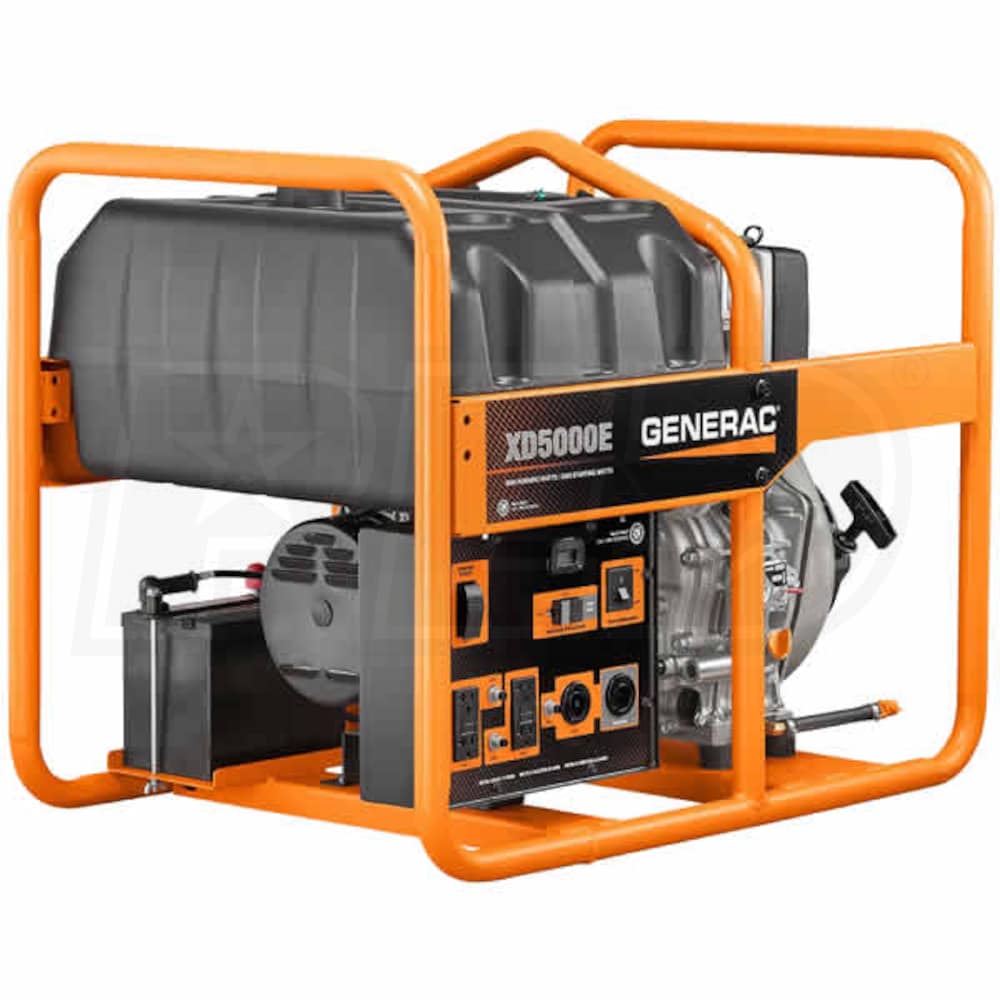

Generac XD5000E- 5000 Watt Electric Start Portable Diesel Generator

Close
Generac Power Equipment and AccessoriesModel: 6864
(Based on expert analysis, manufacturer ratings and customer reviews)

5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
4 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock In-Stock
Ships Friday, Dec 9th

Estimate Arrival
$3,699.00
$3,329.10

StoreShippingPriceShop

In-Stock
Free Freight
$3,329.10
No Sales Tax*
(Except IL)
Buy

In-Stock
Free Freight
$3,329.10
No Sales Tax*
(Except IL)
Visit Site

$3,329.10
No Sales Tax*
(Except IL)
Visit Site

$3,329.10
(as of 10:07 CST - Details)
Sales Tax in 26 states
Visit Site

$3,699.99
Sales Tax Extra
Visit Site
  • Features
  • Specs
  • Q&A
  • 4
    Reviews
  • Articles
  • Shipping
  • Accessories
Grade

Style
Run Watts
5,000
Rated Watts
Surge Watts
5,500
Starting Watts
Fuel
Engine
Yanmar
Generac XD Series Residential Diesel Portable Generator
Ideal for emergency backup, jobsites & agricultral applications

435cc Yanmar LW Series Air-Cooled Diesel Engine
Industrial grade, fuel efficient, less maintenance & long life

Electric Start w/ Recoil Backup (Battery Not Included)
Single touch design makes starting an easy task

Low Oil Shutdown
Provides added safety against engine damge

TruePower™ Technology - Less Than 6% THD
Provides clean, smooth operation of sensitive electronics

12-Gallon Long Run Fuel Tank w/ Fuel Gauge
Provides a run-time of up to 32.4 hours @ 1/2 load

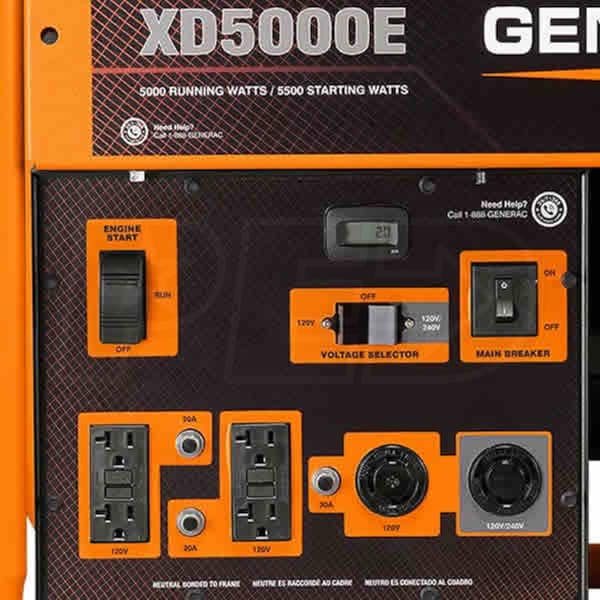

120/240V Selector "Full Power" Switch
Gives you more usable power and added flexibility

1-1/4" Welded Steel Tube Cradle & Integrated Lifting Eye
Durable, strong protection for easy transport & security on the job

Hour Meter w/ Maintenance Resets
Easily monitor run time and track maintenance intervals

2-Year Limited Warranty
Engine
Engine Brand
Yanmar
Starting System
12-Volt Button Start w/ Recoil
CC
435 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Surge Watts
5500 Watts
Rated Watts
5000 Watts
Fuel Type
Diesel
Rated Amps
21 @ 240 Volts (Single Phase) Amps
Portability Kit
Sold Separately
Tank Size
12 Gallons
Run Time @ 50% Load
32.4 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Weight
247 Pounds
Product Length
33.1 Inches
Product Width
22.6 Inches
Product Height
26.6 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
696471068641
Model
6864

*Ask Mike about the Generac 6864. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Mike about this item. Sorry, do not submit repair related questions.

Generac 6864 Reviews & Ratings
Overall Rating
Features
5/5
Quality
5/5
Performance
5/5
Value
5/5
Overall
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Pros
Easy To Store (1)
Exceeded Expectations (1)
Features (1)
Durable (1)
Cons
For Some Reason Diesels ... (1)
Expensive (1)
100% of respondents would recommend this product to a friend
4 Reviews  Sort by

Mike, the Generator Expert
Power Equipment Expert

Product Expert
Total Reviews
103 Reviews
Total Helpful Votes
8924 Helpful Votes
Power Equipment Direct Recommended

If your power application is going to involve many hours of operation OR if diesel fuel is your only fuel source option then a diesel powered generator set is best for you.

A diesel powered generator requires a little more attention to operate and maintain versus a gasoline powered generator. But if you are going to need power for several hours at a time, we feel this is the only way to go.

Diesel engines must be operated over 25% of the rated electrical load whenever the engine is... more
Mike Recommends This Model
Was this review helpful?
8916
manufacturers review image


From The Manufacturer
Generac Xd5000e- 5000 Watt Electric Start Portable Diesel Generator Review
Was this review helpful?
116
Richard S.
Stewartstown, PA
Purchased from Power Equipment Direct
Purchased 4/7/16
Total Reviews
3 Reviews
Most Helpful Positive Review
REVIEWED
APR.
29
2016
5 out of 55 out of 55 out of 55 out of 55 out of 5
Happy But Some Shortcomings
I received my generator and it was delivered by Old Dominion on a well made pallet with cardboard box over it. The delivery was much better than I expected. No damage, not even to the cardboard and the driver was great.

A couple days later I got the wheels and handles. Fortunately I had a fork lift and lifted it up off the pallet and installed the wheels and stand plus the handles. The handles fold down but the ones that attach to the tubing and latch in extended position are much better.... more
Pros: Durable, Features, Exceeded Expectations, Easy To Store
Cons: Expensive, For Some Reason Diesels Cost 5-6 Times More I Felt Gouged
Richard Recommends This Generac Product
Mike, the Generator Expert
Product Expert
Richard,
Under the operating portion of the manual, it explains about the switch. You select based on the outlets you're using. 120V or 120/240V.
more
Richard's Experience With Power Equipment Direct
Web Site
5/5

Service
5/5

Shipping
5/5
"Excellent except nobody knew how that 120v/off/120-240V rocker switch worked. Not even Generac. Also nobody was sure about the battery type and capacity/cold cranking amps which is important with winter starting diesels. Not even Generac."
 more
Mike, the Generator Expert
Product Expert
Richard,
Group U1, 12V, 35Ah battery
Was this review helpful?
53
Gustavo R.
Mcallen, TX
Purchased from Power Equipment Direct
Purchased 8/2/15
REVIEWED
OCT.
05
2015
5 out of 55 out of 55 out of 55 out of 55 out of 5
Great Generator
I am using it for an irrigation pivot that needs 3 days of continuos operation
Gustavo Recommends This Generac Product
Was this review helpful?
98
