Eagle 5180V2-CS - 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Eagle 5180V2-CS.

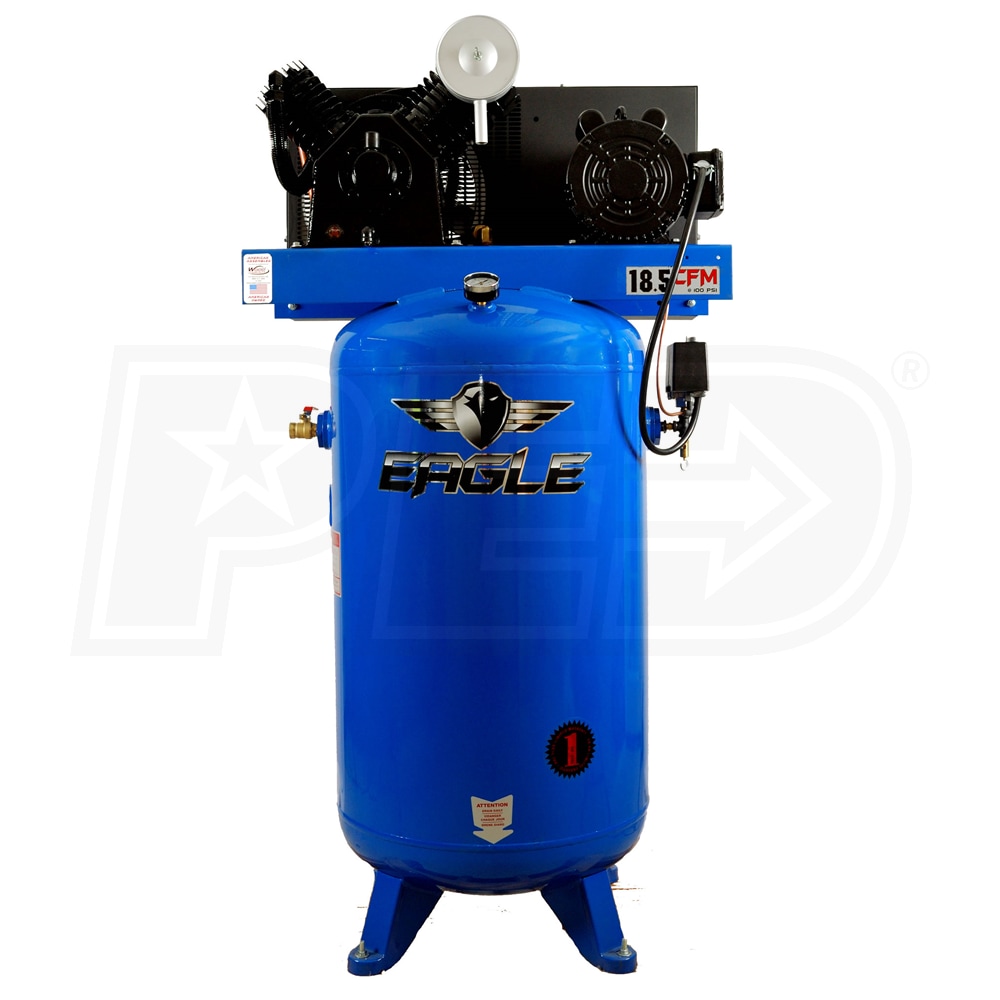

Eagle 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Close
Eagle Power Equipment and AccessoriesModel: 5180V2-CS
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$1,899.99

StoreShippingPriceShop

Free Freight$1,899.99
No Sales Tax*
(Except IL)
Buy

Free Freight$1,899.99
No Sales Tax*
(Except IL)
Visit Site

$1,999.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Consumer Grade Air Compressors
Style
Two-Stage Air Compressors
Voltage
208-230 Volt AC
1-Phase
HP
5
CFM
18.5
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Rugged 2 Stage Compressor With Cast Iron Cylinders
Built to work hard and last a long time

"V" Design
Minimizes vibration, improves cooling, extends compressor life

Individual & Removable Cylinders
For smoother & cooler operation

Heavy Duty Pressure Switch
With convenient on/off control

Metal Air Filters With "Auto Drop" Feature
Extends compressor life, easy to maintain

208/230V Single Phase Motor
Thermally protected

Efficient Heat Removal From Pulley Fan
Promotes cooler running & longer life

Sturdy Metal Belt Guard
Protects you and the belt
Outlet valve included

1 year Factory Warranty
Extends to 2 years with Maintenance Kit added at time of purchase
Receipts are required for all warranty service
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Amp Draw
25.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
200 PSI
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
450 Pounds
Product Length
35 Inches
Product Width
24 Inches
Product Height
69 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
777589002410
Model
5180V2-CS
