DeWalt DXCMV7518075 - 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on DeWalt DXCMV7518075.



DeWalt 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Close
DeWalt Power Equipment and AccessoriesModel: DXCMV7518075
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$2,108.00
$1,899.00

StoreShippingPriceShop

Free Freight$1,899.00
No Sales Tax*
(Except IL)
Buy

Free Freight$1,899.00
No Sales Tax*
(Except IL)
Visit Site

$2,199.99
Sales Tax Extra
Visit Site

$1,999.99
No Sales Tax*
(Except CA,GA)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping
  • Accessories
Grade
Contractor Grade Air Compressors
Style
Two-Stage Air Compressors
Voltage
230 Volt AC
1-Phase
HP
7.5
CFM
21.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons

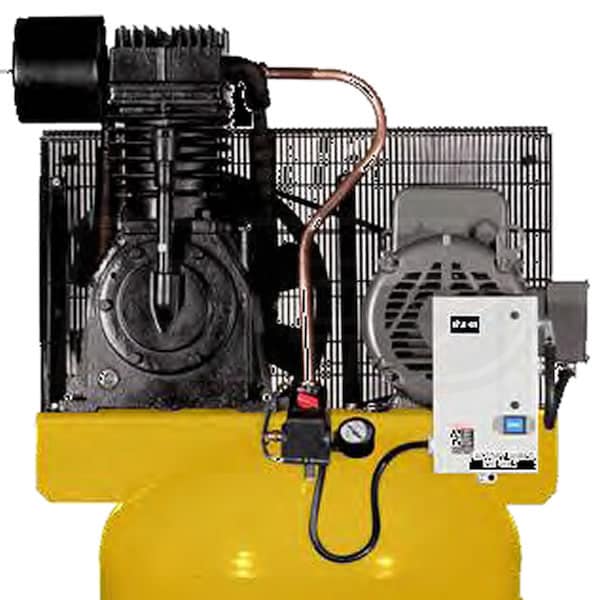

7.5 HP Baldor Electric Motor
4 pole, 1725 RPM, UL certified, NEMA rated for reliability
Conveniently equipped with pre-wired & mounted magnetic starter

Patented Two Stage Cast Iron Industrial Duty Pump
Provides 21.2 CFM at 175 PSI for big jobs & multiple users

Patented Cast Iron Flywheel
Large fins for low pump RPM, improved cooling, longer pump life

High Efficiency Finned Copper Intercooler
Cooler pumps last longer & run more effectively

Extra Capacity Oil Reservoir
Ensures lower oil temperatures for longer pump life

4 Rings Per Piston
Improved volumetric efficiencies & oil control

80 Gallon Air Tank
ASME rated for safety; 175 PSI maximum pressure

Uniquely Designed Metal Belt Guard
Improves pump cooling up to 60F over other designs

2 Year Limited Factory Warranty
Purchase & use of maintenance kit doubles the pump warranty
Protects your investment
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
60
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
21.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
UL
Weight
623 Pounds
Product Length
37 Inches
Product Width
29 Inches
Product Height
79 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
846212009345
Model
DXCMV7518075
