Cub Cadet 17BIDAGC010
Cub Cadet 17BIDAGC010
Hover to zoom
1 Of 5

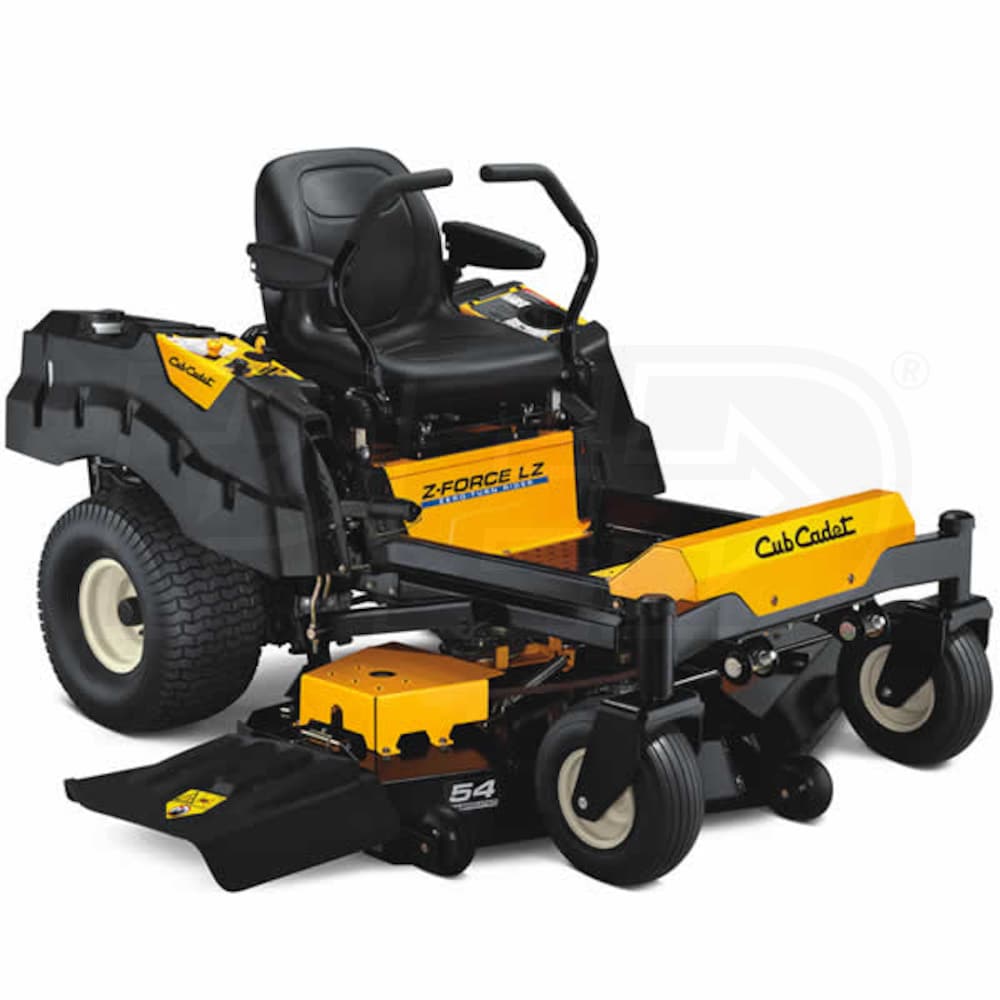

Cub Cadet Z-Force ZF LZ54KW (54") 24HP Kawasaki Zero Turn Mower

Model:

17BIDAGC010

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Cub Cadet Z-Force LX54 (54
Model:
17AIDAUC010
$5,499.99
$5,299.99
Product Discontinued
Cub Cadet Z-Force ZF LZ54KW (54
Cub Cadet Z-Force ZF LZ54KW (54") 24HP Kawasaki Zero Turn Mower
Model: 17BIDAGC010
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

54 Cutting Inches

Engine

Kawasaki

  • 24HP/726cc Kawasaki FR730V V-Twin 4-Cycle OHV Engine
  • Automatic compression release and an internally vented carburetor
  • Fully pressurized lubrication with spin-on oil filter
  • Twin 2.8-gallon fuel tanks (5.6 gallon total)
  • Dual Hydro Gear ZT2800 Hydrostatic Transmissions
  • 10cc pumps and 16cc wheel motors on each drive wheel
  • 54-Inch Fabricated (Welded) Floating Mower Deck
  • Heavy duty 11-gauge steel w/ 3 blades and geaseable spindles
  • 13-position, spring-assisted deck lift (lever operated)
  • 2 greasable heavy-duty gauge wheels/1-nose premium gauge wheel
  • Patented SmartJet™ high-pressure deck washing system
  • Fully Welded 12-Gauge Steel Frame
  • E-Coat corrosion defense system for protection & durability
  • 18-inch high-back seat with arm rests
  • Integrated rear tow hitch

Specifications

17BIDAGC010
specs product image PID-15464
Yes
Engine
Engine Brand
Kawasaki
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
24 HP
CC
726 CCs
Fuel Tank Size
5.6 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
800 Pounds
Consumer Warranty
3 Years
Product Length
70.0 Inches
Product Width
57.5 up/62.0 down Inches
Product Height
38.0 Inches
UPC
043033569922
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
13 Positions
Cutting Width
54 Inches
Cutting Height
1.0-4.0 Inches
Deck Lift System
Manual Hand Operated
Engagement
PTO Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT2800 Hydro Drive
Accessories
Rear Bagger
Sold Separately
Engine Guard
No
Seat Type
High Back
Hour Meter
Included
Arm Rests
Included
Front Bumper
No
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
13 x 5 Inch
Rear Tire Size
20 x 10 Inch
Tire Type
Pneumatic Wheels
