California Air Tools CAT-15020C-22060 - SP Ultra Quiet Oil-Free 2-HP 15-Gallon Steel Tank Air Compressor w/ Condor Pressure Switch (220V 1-Phase) for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on California Air Tools CAT-15020C-22060.

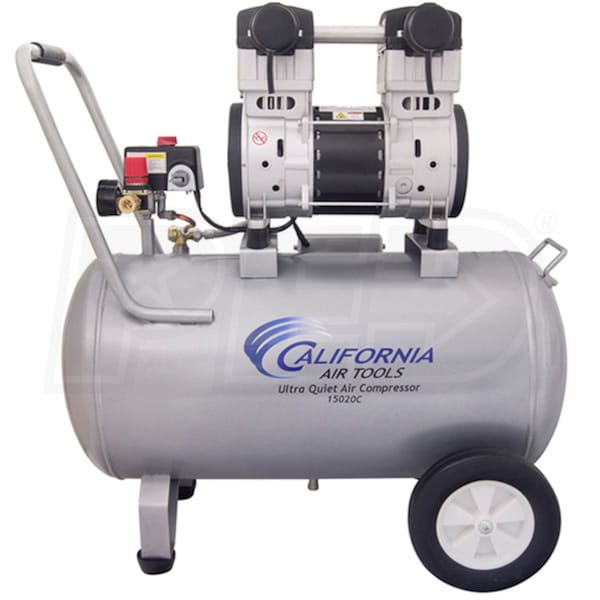

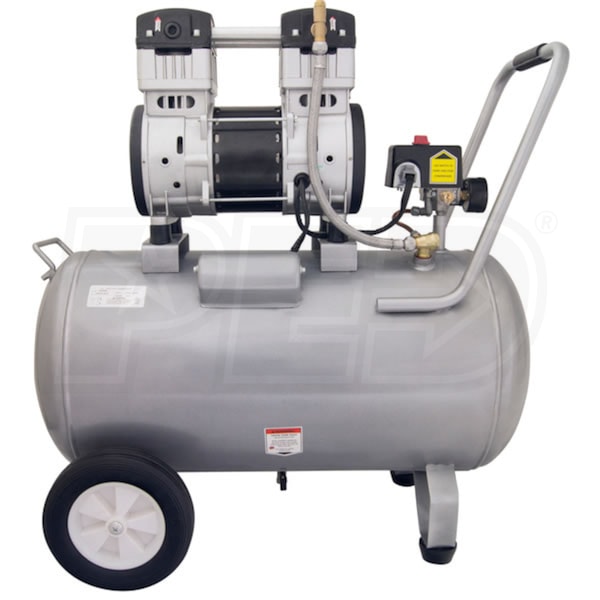

California Air Tools SP Ultra Quiet Oil-Free 2-HP 15-Gallon Steel Tank Air Compressor w/ Condor Pressure Switch (220V 1-Phase)

Close
California Air Tools Power Equipment and AccessoriesModel: CAT-15020C-22060
(Based on expert analysis, manufacturer ratings and customer reviews)
1.0 out of 51.0 out of 51.0 out of 51.0 out of 51.0 out of 5
1 Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$499.99

StoreShippingPriceShop

Free Shipping$499.99
No Sales Tax*
(Except IL)
Buy

Free Shipping$499.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • 1
    Reviews
  • Articles
  • Shipping
  • Accessories
Application
Consumer Grade Air Compressors
Style
Portable - Horizontal
HP
2
Voltage
230 Volt AC
1-Phase
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
15
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Powerful 2-HP SP-Series 220V Motor
Low 1680 RPM creates less noise & wear
70 dBA is ideal for indoor use where noise is an issue

Oil-Free Dual Piston Pump System
6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 150 PSI maximum
Has a 3000+ hour life cycle before wear; comparable units are 500 hours or less
Works in a variety of temperatures & uneven terrains

15 Gallon Steel Air Tank With Wheel Kit
Easy to move around the jobsite, shop or garage

Easy-Start Valve & Two Air Filters
No-load start up requires fewer amps for easier starting in cold temperatures
Cleaner air for better tool operation

Designed For Increased Duty Cycles & Run Times
Time to fill tank from empty to full - 230 Seconds
Recovery time from 118 PSI to 150 PSI - 50 Seconds

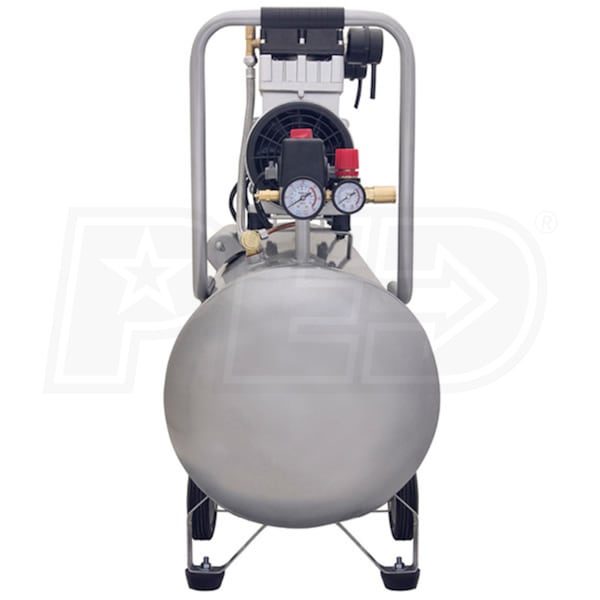

Top Mounted Controls & Condor Pressure Switch
Dual gauges so you can check tank & tool pressure at a glance
1/4" air outlet with quick connector for fast tool changes

Thermal Overload Protector

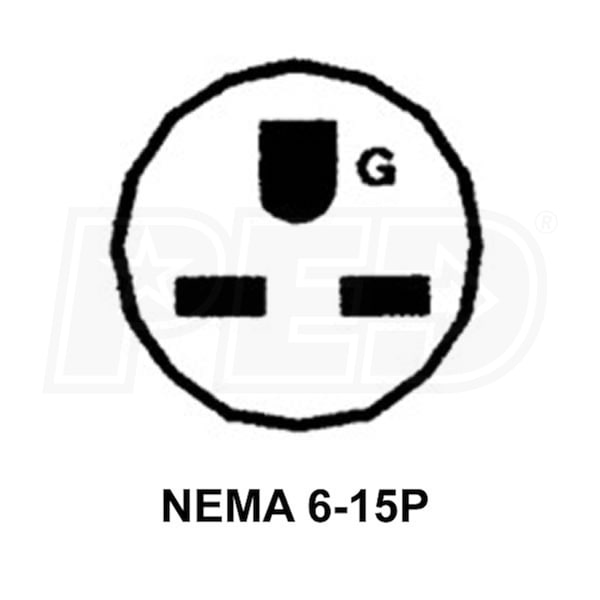

7.5 Amp low amp draw works on NEMA 6-15P outlets
Engine
HP
2
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
7.5
dBA
70
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
150 PSI
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
15 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Filter
Yes
Overview
Weight
90 Pounds
Product Length
28 Inches
Product Width
17 Inches
Product Height
31 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
743369715030
Model
CAT-15020C-22060
Download Documents
Need Help? Ask Our Power Equipment Experts.
View Accessories For This Product.
Read Reviews
How-To Library

*Ask Steve about the California Air Tools CAT-15020C-22060. Sorry, no repair questions:


*Name:


*State:


*Email:


 Receive Weekly How-To Tips & Specials


*Required Field Submit

Questions before buying? Ask Steve about this item. Sorry, do not submit repair related questions.

California Air Tools CAT-15020C-22060 Reviews & Ratings
Overall Rating
Features
1/5
Quality
2/5
Performance
1/5
Value
1/5
Overall
1.0 out of 51.0 out of 51.0 out of 51.0 out of 51.0 out of 5
Pros
Quiet (1)
Cons
Expensive (1)
Difficult To Use (1)
1 Review  Sort by

Mark Erickson
Saint Paul, MN
Purchased from Power Equipment Direct
Purchased 11/14/16
Most Helpful Critical Review
REVIEWED
DEC.
06
2016
1 out of 51 out of 51 out of 51 out of 51 out of 5
No Power To Run Any Air Tools
This was expensive try to run air tools with it no good or you can use it for a few seconds it's a piece of s***. Maybe good for filling tires but that would be expensive but this cost wish I could ship it back it's a piece of s***
Pros: Quiet
Cons: Difficult To Use, Expensive
Mark Does Not Recommend This Product
Steve, the Air Compressor Expert
Product Expert
Mark,
This unit is rated for 5.3 CFM at 90 PSI. You need a little "head room" when matching the CFM for your tools and compressor, so this compressor would be good for air tools rated around 4.5 CFM at 90 PSI. We cover this in our How To Pick The Perfect Air Compressor article in our "How To" Library.

If your compressor isn't delivering this CFM, please contact the folks at California Air Tools at 866-409-4581 ext. 2 so they can help you troubleshoot the unit, or arrange for Factory Warranty repair. Please have the serial number of your air compressor handy when you call them in case they ask for it.

If you ordered an air compressor that didn't match your tools, here's a link to our Return Policy from the bottom of our website. Your compressor was delivered on 11/19/16, so you have until 12/19/16 to contact us to request a Return Merchandise Authorization.
