Briggs & Stratton 9P702-0046-F1 - 550EX Series™ 140cc OHV Vertical Engine, 7/8" x 2-7/16" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Kw for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Briggs & Stratton 9P702-0046-F1.

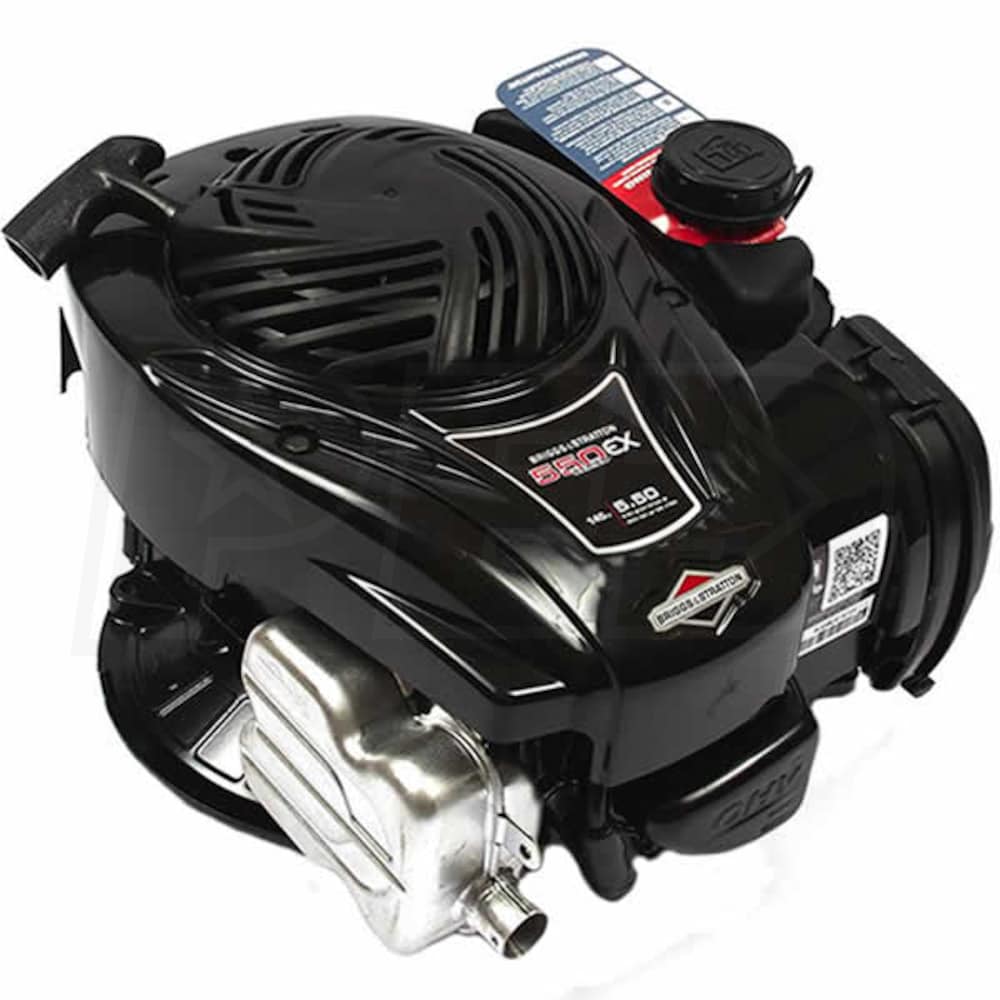

Briggs & Stratton 550EX Series™ 140cc OHV Vertical Engine, 7/8" x 2-7/16" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Kw

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 9P702-0046-F1
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$275.99

StoreShippingPriceShop

Free Shipping$275.99
No Sales Tax*
(Except IL)
Buy

$275.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Model# 9P702-0046-F1 - 7/8" x 2-7/16" Crankshaft, Tapped 3/8"-24, 2 Woodruff Keys & 3/16" Straight Keyway

2-Year Consumer & 90-Day Commercial Warranty
Ideal for push mower engine replacement

550ex Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940

ReadyStart® Engine Starting System
Just pull to start, no primer and no choke to worry about. Pull, Start, Go

Overhead Valve (OHV) Technology
More power, less fuel-use & lower emmisions; Runs cooler for longer engine life

DuraLube™ Splash Lubrication System
Gear-driven system keeps engine well oiled for continous protection

Engineered For Comfort & Maneuverability - Lightest Engine In Its Class
Less vibration reduces opertator fatigue so you cab work longer

Dirt & Debris Protection w/ Tool-Less Air Cleaner Cover
Dual-sealing pleated paper element air filter extend engine life

Magnetron® Electronic Ignition System
Extremely reliable design, for consistent starting while being maintenance-free

Super Lo-Tone™ Engine Muffler
Less noise allows for a more peaceful mowing experience

Fixed Speed Control & CPSC Blade Break
Allows for easier engine replacement for your application

Includes .8-Gallon Fuel Tank


Engine
Engine Series
B&S EX Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
17 Lbs
CC
140 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Aluminum
Bore
2.50 Inches
Stroke
1.75 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
16 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.2 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8 x 2-7/16 Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
2-7/16"
Crankshaft End Tapped Size
3/8-24
Crankshaft Keyway Width
3/16 Inches
Overview
Made in USA
Yes
Weight
17 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847693102
Model
9P702-0046-F1
