Briggs & Stratton 83152-1049-F1 - 550 Series™ 127cc Horizontal Engine, 6:1 Gear Reduction, 3/4" x 1-13/16" Gear Shaft for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Briggs & Stratton 83152-1049-F1.

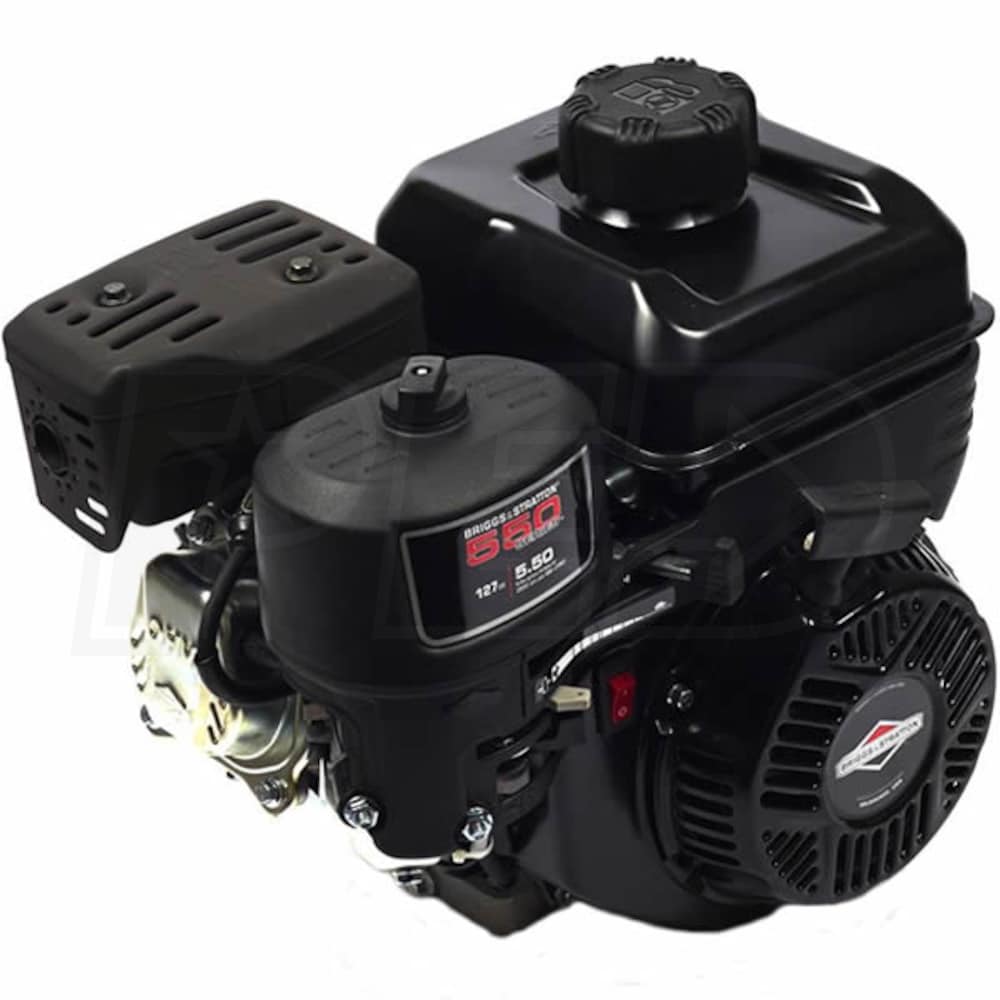

Briggs & Stratton 550 Series™ 127cc Horizontal Engine, 6:1 Gear Reduction, 3/4" x 1-13/16" Gear Shaft

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 83152-1049-F1
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$475.99

StoreShippingPriceShop

Free Shipping$475.99
No Sales Tax*
(Except IL)
Buy

$475.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping

Model # 83152-1049-F1 - 6:1 Gear Reduction, 3/4" x 1-3/16" Gear Shaft, PTO BB

2-Year Consumer Warranty & 90-Day Commercial Warranty
Utility / General applications like log splitters, pressure washers, compressors & tillers

Briggs & Stratton 550 Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
Produces 5.5 ft-lbs of torque* - Power levels are stated gross torque per SAE J1940

Overhead Valve (OHV) Technology
More power, less fuel-use & lower emmisions; Runs cooler for longer engine life

DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve
Gear-driven system keeps engine well oiled for continous protection
Withstands the wear and abuse for longer engine live

Float-Feed Carburetor & Mechanical Governor
Allows for fast fuel delivery for reliable starting and operation
Increases throttle response to maximize usable power for higher torque applications

Magnetron® Electronic Ignition System
Extremely reliable design, for consistent starting while being maintenance-free

Recoil-Starter w/ Automatic Compression Release
Requires less effort so you can enjoy 1-2 pull starts

Maxi-Clean™ Automotive Type Air Filter
Pleated paper design, provides excellent debris filtration

Ground Wire Terminal & Rocker Stop Switch
Designed for easier engine replacement for your current application

Added Features:
Includes Lo-Tone Muffler & .5-Gallon Fuel Tank


Engine
Engine Series
B&S 550 Series
Engine Style
Horizontal
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
35 Lbs
CC
127 CCs
Net Torque
5.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.44 Inches
Stroke
1.65 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.5 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 1-13/16 Inches
Crankshaft Type
6:1 Gear Reduction
Crankshaft Diameter
3/4"
Crankshaft Length
1-13/16"
Crankshaft End Tapped Size
6:1 CCW
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
35 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
024847867077
Model
83152-1049-F1
