Briggs & Stratton 543477-3048-J1 - Vanguard™ 896cc 31 Gross HP V-Twin OHV Electric Start Horizontal Engine 1-1/8" x 4" CS, 20A Alternator for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Briggs & Stratton 543477-3048-J1.

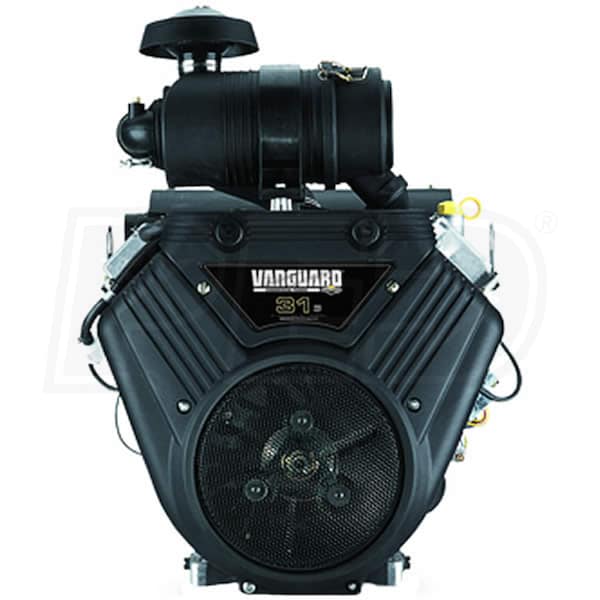

Briggs & Stratton Vanguard™ 896cc 31 Gross HP V-Twin OHV Electric Start Horizontal Engine 1-1/8" x 4" CS, 20A Alternator

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 543477-3048-J1
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$2,489.99

  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping

Model # 543477-3048-J1 - 1-1/8" x 4" Crankshaft Tapped 7/16"-20, 1/4" Keyway, 20A DC Alternator

3-Year Commercial Warranty
Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders

Professional-Grade Vanguard™ 31 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine
High-performance commercial engine rated in accordance with SAE J1995

90° V-Twin Overhead Valve (OHV) Technology
Low vibration, exceptional balance provides smooth power for extend valve life
Increased fuel economy and HP/Weight ratio while reducing engine emissions

Full-Pressure Lubrication w/ Centrally Located Oil Pump & Pickup + Cooler
Centerally located pump for increased angle of operation and faster priming
Spin-On Oil Filter - Keeps the oil cleaner from debris that can damage internal engine parts

Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
Efficient fan reduces engine & oil temperature by 20-30 degrees
Long engine life & improved oil control while reducing airborn intake debris

Five-Inch Centrifugal Multi-Stage Air Cleaner
Cyclonic air filter provides ultimate debris protection & last 2X longer than panel-style filters

Commercial-Style Float Carburetor w/ Sediment Filter
Proven-design for consitent starting, smoother operation & easy maintenance

12V Industrial Grade Solenoid Shift Starter & Magnetron® Electronic Ignition
Maintenance-free design, plus larger ignition coil for quick, reliable starting

Manual Choke Control & Key Stop Switch
Designed for easier engine replacement for your current application

Additional Features
On-Board Fuel Pump & 20A Regulated Charger System

Please Note - No Exhaust or Fuel Tank Included


Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
125 Lbs
CC
896 CCs
HP
31 HP
Cylinder Bore Type
Cast Iron
Bore
3.37 Inches
Stroke
3.07 Inches
Compression Ratio
8.2:1
Systems
Charging System
20 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
78 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8" x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6.13 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
125 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
047282062678
Model
543477-3048-J1
