Briggs & Stratton 356447-0304-G2 - Vanguard™ 570cc 18 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 2" CS, 16A Alternator for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Briggs & Stratton 356447-0304-G2.

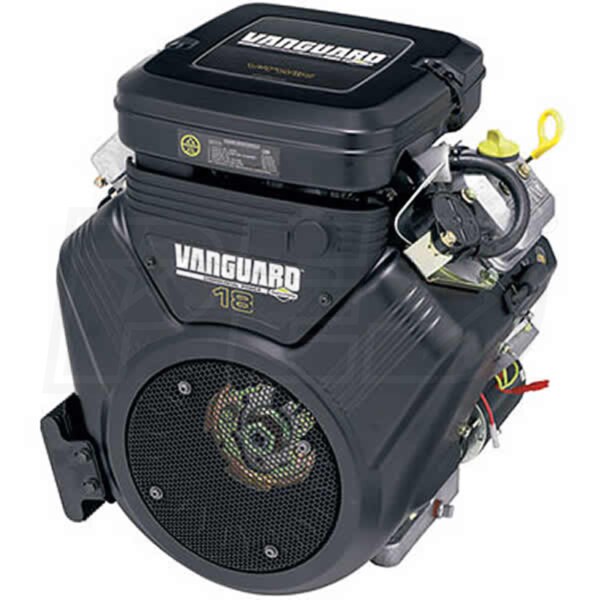

Briggs & Stratton Vanguard™ 570cc 18 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 2" CS, 16A Alternator

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 356447-0304-G2
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
Ships in 2-5 Business Days

Factory items ship direct from the manufacturer. Shipping times vary.
$1,579.99

  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping

Model # 356447-0304-G2 - 1" x 2" Crankshaft, Tapped 3/8-24, 16A DC Alternator

3-Year Commercial Warranty
Utility / General engine applications like Compressors, Pressure Washers, Chipper/Shredders

Professional-Grade Vanguard™ 18 HP* Twin Cylinder Air-Cooled 4-Cycle Gas Engine (3450 RPM)
High-performance commercial engine rated in accordance with SAE J1995

90° V-Twin Overhead Valve (OHV) Technology
Low vibration, exceptional balance provides smooth power for extend valve life
Increased fuel economy and HP/Weight ratio while reducing engine emissions

Oil Pump Provides Full-Pressure Lubrication w/ Spin-On Oil Filter
Centerally located pump for increased angle of operation and faster priming
Keeps the oil cleaner from debris that can damage internal engine parts

Cool Cleaner Technology w/ Dura-Bore™ Cast Iron Cylinder Sleeve
Efficient fan reduces engine & oil temperature by 20-30 degrees
Long engine life & improved oil control while reducing airborn intake debris

High Capacity Dual-Clean™ Commercial Air Cleaner
Industrial pleated paper w/ foam pre-cleaner for demanding applicatins

Commercial-Style Float Carburetor w/ Sediment Filter
Proven-design for consitent starting, smoother operation & easy maintenance

12V Electric (Gear) Starter & Magnetron® Electronic Ignition
Maintenance-free design, plus larger ignition coil for easy dependable starting

Remote Choke Control & Supress Afterfire Solenoid
Designed for easier engine replacement for your current application

Additional Features
On-Board Fuel Pump & 16A Regulated Charger System

Please Note - No Exhaust or Fuel Tank Included


Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Cylinders
2
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
74 Lbs
CC
570 CCs
HP
18 HP
Cylinder Bore Type
Cast Iron
Bore
2.83 Inches
Stroke
2.76 Inches
Compression Ratio
8.2:1
CARB
No
Systems
Charging System
16 Amps
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
48 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 2 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
2"
Crankshaft End Tapped Size
3/8-24
PTO Height
5-1/4 Inches
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
74 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847050912
Model
356447-0304-G2
