The Briggs & Stratton 675 series™ 190cc electric start vertical engine, 7/8" x 3-5/32" crankshaft, tapped 3/8"-24, 2 woodruff key & 3/16" straight keyway has been discontinued and is not available for purchase at this time.

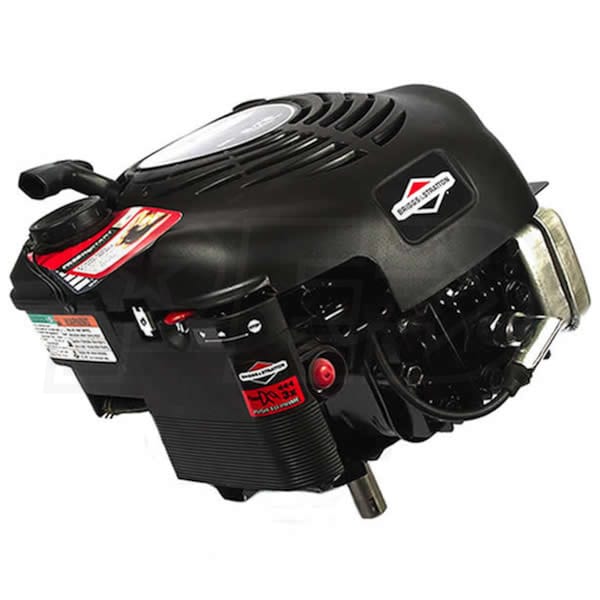

Briggs & Stratton 675 Series™ 190cc Electric Start Vertical Engine, 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 Woodruff Key & 3/16" Straight Keyway

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 126M07-5060-F1
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!



Product Discontinued Product Discontinued
StoreShippingPriceShop

Discontinued

$361.07
(as of 10:32 CST - Details)
Sales Tax in 26 states
Visit Site
StoreShippingPriceShop

Discontinued

$361.07
(as of 10:32 CST - Details)
Sales Tax in 26 states
Visit Site
  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles

Model# 126M07-5060-F1 - 7/8" x 3-5/32" Crankshaft, Tapped 3/8"-24, 2 Woodruff Key & 3/16" Straight Keyway
For walkbehind / push mowers

Briggs & Straton 675 Series™ Single Cylinder Air-Cooled 4-Cycle Electric Start Gas Engine
Produces 6.75ft-lbs of torque* - Power levels are stated gross torque per SAE J1943

Aluminum-Alloy Kool Bore™ Engineering
Keeps the engine running cooler for maximum productivity

Float-Style Carburetor w/ Primer
Provides consistent starting even when engine is cold

Magnetron® Electronic Ignition System
Extremely reliable design, for consistent starting while being maintenance-free

Large Diameter Recoil Starter
With mechanical compresson release for easier starting with less effort

Mechanical Torque Control
Maximizes usable power of the engine when high torque is required

Maxi-Clean™ Automotive-Type Air Filter
Pleated paper design, provides excellent debris filtration

Aluminized Lo-Tone™ Muffler
Decrease engine noise during operation

2-Year Consumer Warranty


Engine
Engine Series
675 Series
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
28 Lbs
CC
190 CCs
Max Torque
6.75 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
2.04 Inches
Systems
Charging System
.5 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
.25 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
7/8" x 3-5/32" Inches
Crankshaft Type
Straight
Crankshaft Diameter
7/8"
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
3/16 Inches
Overview
Made in USA
Yes
Weight
28 Pounds
Product Length
12.175 Inches
Product Width
12.932 Inches
Product Height
9.726 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847184891
Model
126M07-5060-F1
