Briggs & Stratton 104M02-0028-F1 - 725EXi™ Series 163cc Vertical Engine, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Square Keyway for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Briggs & Stratton 104M02-0028-F1.

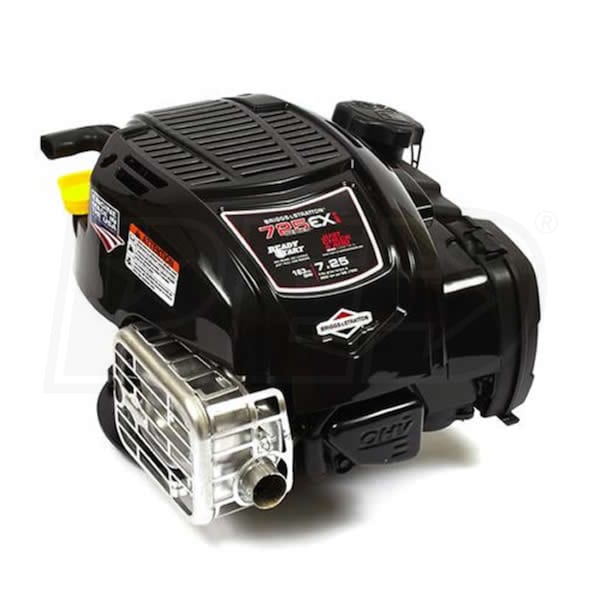

Briggs & Stratton 725EXi™ Series 163cc Vertical Engine, 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Square Keyway

Close
Briggs & Stratton Power Equipment and AccessoriesModel: 104M02-0028-F1
(Based on expert analysis, manufacturer ratings and customer reviews)
Write a Review
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
In-Stock Only 1 In-Stock
Ships Tuesday, Dec 13th

Estimate Arrival

This Item cannot be shipped to
HI and AK.
$189.99

  • Features
  • Specs
  • Q&A
  • Reviews
  • Articles
  • Shipping

Model# 104M02-0028-F1 - 25mm x 3-5/32" Crankshaft, Tapped 7/16"-20, 3/16" Square Keyway
For walkbehind / push mowers; Supercedes model 126M02-1031-F1

Briggs & Straton 725EXi Series™ Single Cylinder Air-Cooled 4-Cycle Gas Engine
Produces 7.25ft-lbs of torque* - Power levels are stated gross torque per SAE J1940

ReadyStart® Engine Starting System
Just pull to start, no primer and no choke to worry about. Pull, Start, Go

Overhead Valve (OHV) Technology
More power, less fuel-use & lower emmisions
Runs cooler for longer engine life

DuraLube™ Splash Lubrication System
Gear-driven system keeps engine well oiled for continous protection

Large Diameter Recoil Starter
With mechanical compresson release for easier starting with less effort

Mechanical Torque Control
Maximizes usable power of the engine when high torque is required

Maxi-Clean™ Automotive-Type Air Filter
Pleated paper design, provides excellent debris filtration

Aluminized Super Lo-Tone™ Muffler
Decrease engine noise during operation

2-Year Consumer Warranty


Engine
Engine Series
B&S EXi
Engine Style
Vertical
Cylinders
1
Engine Type
4-Cycle OHV
Cooling System
Air
Dry Weight
18.8 Lbs
CC
163 CCs
Max Torque
7.25 Lbs
Cylinder Bore Type
Aluminum
Bore
2.69 Inches
Stroke
1.75 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
15 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dry (Paper)
Fuel Tank Size
0.27 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 3-5/32 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
3-5/32"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
3/16 Inches
Overview
Made in USA
Yes
Weight
18.8 Pounds
Product Length
13.396 Inches
Product Width
10.209 Inches
Product Height
9.954 Inches
Consumer Warranty
2 Years
Commercial Warranty
90 Days
UPC
024847939194
Model
104M02-0028-F1
