Ariens IKON XL-42 (42") 22HP Kohler Zero Turn Lawn Mower (2016)

Model:

915203

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Ariens IKON XL-42 (42
Model:
915226
$3,899.99
Product Discontinued
Ariens IKON XL-42 (42

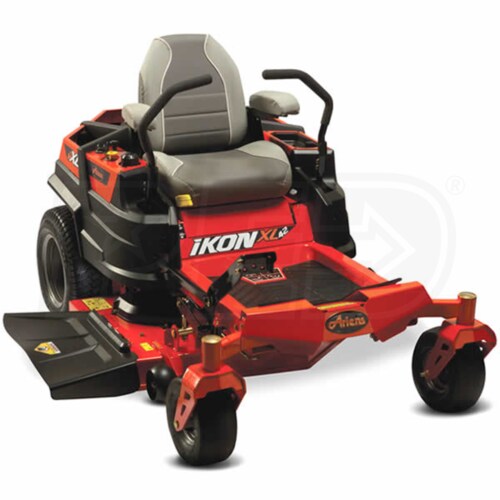

Ariens IKON XL-42 (42") 22HP Kohler Zero Turn Lawn Mower (2016)
Model: 915203
Was $3,899.99
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

42 Cutting Inches

Engine

Kohler

  • Premium 22HP/725cc Kohler 7000 Series OHV Engine
  • Overhead valve design for better fuel economy & top performance
  • Full-pressure lubrication system with full-flow filter
  • Dual Hydro Gear ZT2800 Hydrostatic Transmissions
  • 10cc pumps and 16cc wheel motors on each drive wheel
  • Designed for increased torque and load capacity
  • 42-Inch, 3-Blade Fabricated Mower Deck
  • 10-gauge steel deck design
  • 4-1/2" deep design provides extra airflow for improved cut quality
  • Mechanical foot lift raises & lowers mowing deck

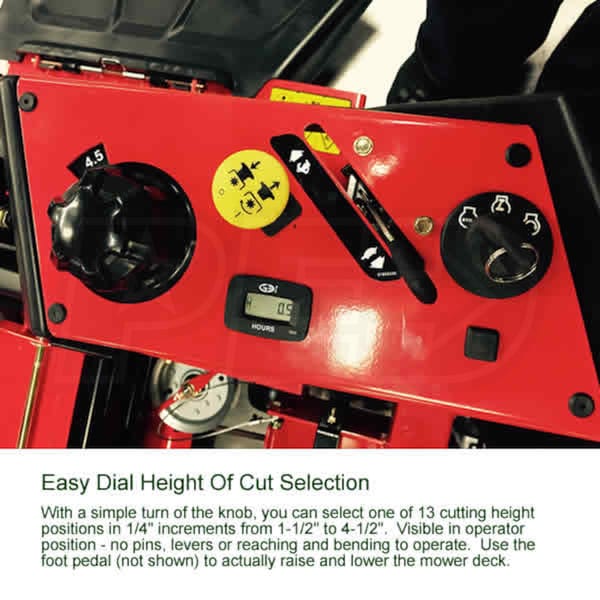

  • Best In Class Dial Height Of Cut Selector
  • Select 1 of 13 cutting positions in 1/4" increments with the turn of a dial
  • No more fumbling with pins and levers
  • One-Piece Tubular Steel Frame
  • Welded joints provide structural rigidity for added strength and stability

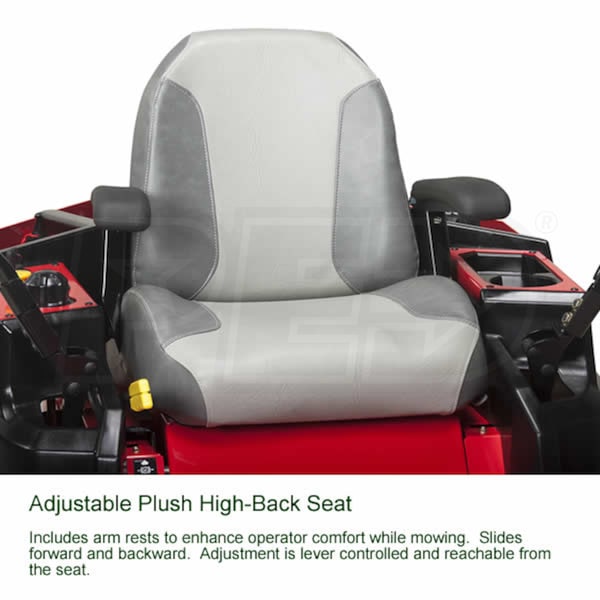

  • Adjustable Plush High-Back Seat w/ Arm Rests
  • Seat springs for added comfort and simple lever adjustment

Specifications

915203
specs product image PID-62188
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
22 HP
CC
725 CCs
Fuel Tank Size
2.8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
2 Years
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
661 Pounds
Consumer Warranty
3 Years
Product Length
77.5 Inches
Product Width
45.5 up/54.0 down Inches
Product Height
41.0 Inches
UPC
751058039596
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Spindle Material
Steel
Blades
3 Blades
Deck Positions
13 Positions
Cutting Width
42 Inches
Cutting Height
1.5-4.5 Inches
Deck Lift System
Manual Foot Operated
Engagement
Warner Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
ZT2800 Hydro Drive
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back w/ Seat Springs
Hour Meter
Included
Arm Rests
Included
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
11 x 6 Inch
Front Axle
Fixed
Rear Tire Size
20 x 8 Inch
Tire Type
Pneumatic Wheels
