Ariens IKON X-42 (42
Ariens IKON X-42 (42") 22HP Kohler Zero Turn Lawn Mower
Model: 915175
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

42 Cutting Inches

Engine

Kohler

  • Premium 22HP/725cc Kohler 7000 Series OHV Engine
  • Overhead valve design for better fuel economy & top performance
  • Full-pressure lubrication system with full-flow filter
  • Dual Hydro-Gear™ EZT Hydrostatic Drive System
  • Fan cooled 10cc pumps and wheel motors on each drive wheel
  • No shifting necessary for effortless operation
  • 42-Inch, 3-Blade Fabricated Mower Deck
  • 10-gauge steel deck design
  • 4 support positions prevent excess deck movement
  • Mechanical foot lift raises & lowers mowing deck

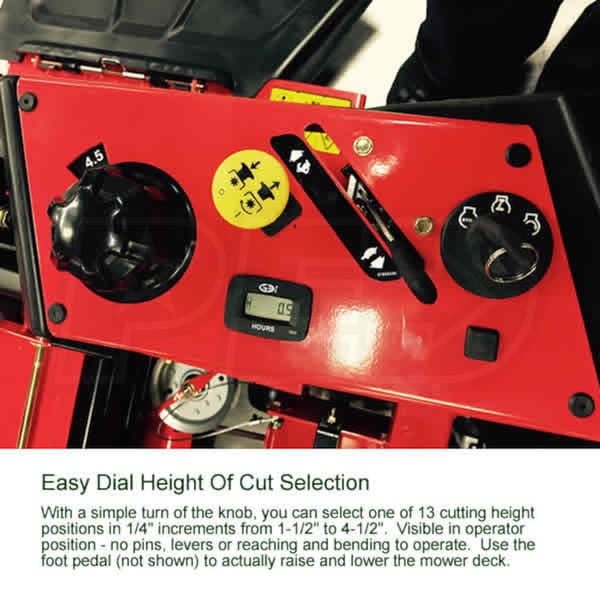

  • Best In Class Dial Height Of Cut Selector
  • Select 1 of 13 cutting positions in 1/4" increments with the turn of a dial
  • Cutting height range of 1.5" to 4.5"
  • Fully Tubular 3-Inch Frame
  • Welded joints provide structural rigidity for added strength and stability
  • Fully Adjustable Control Arms
  • Adjust in three different directions to accommodate the operator
  • Adjustable Plush High-Back Seat w/ Arm Rests
  • Seat springs for added comfort and simple lever adjustment
  • 300 LB. Max Towing Capacity

Specifications

915175
specs product image PID-15497
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
22 HP
CC
725 CCs
Fuel Tank Size
2.8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
90 Days
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
605 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
77.5 Inches
Product Width
47.0 up/54.0 down Inches
Product Height
41.0 Inches
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
10-Gauge
Deck Construction
Welded
Spindle Material
Aluminum
Blades
3 Blades
Deck Positions
13 Positions
Cutting Width
42 Inches
Cutting Height
1.5-4.5 Inches
Deck Lift System
Manual Foot Operated
Engagement
Warner Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
EZT Transaxles w/ 1" Axle
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back w/ Seat Springs
Hour Meter
Included
Arm Rests
Included
Trailer Hitch
Included
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
11 x 4 Inch
Front Axle
Fixed
Rear Tire Size
18 x 8.5 Inch
Tire Type
Pneumatic Wheels
